Ambient VSLOT V-Mount Chassis for Unislot Receivers

Description

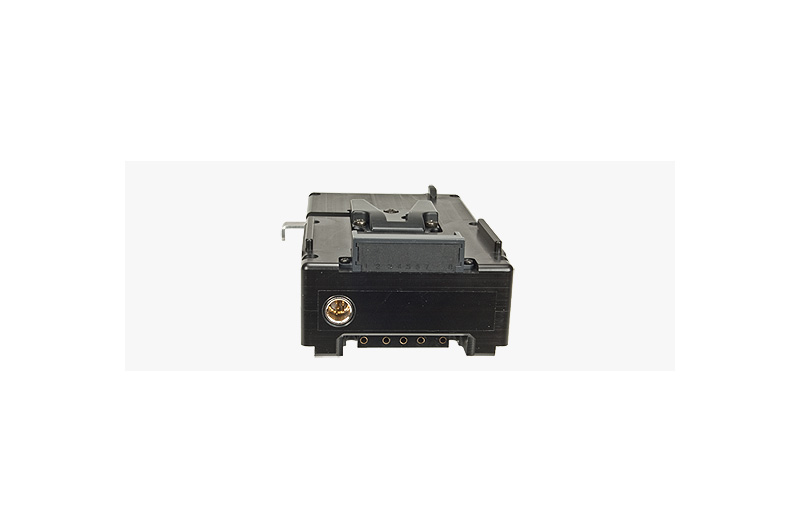

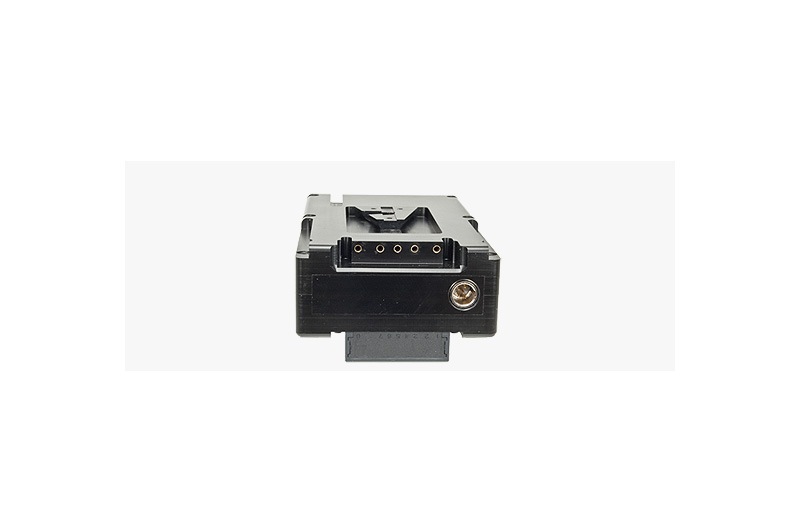

Ambient VSLOT V-Mount Chassis

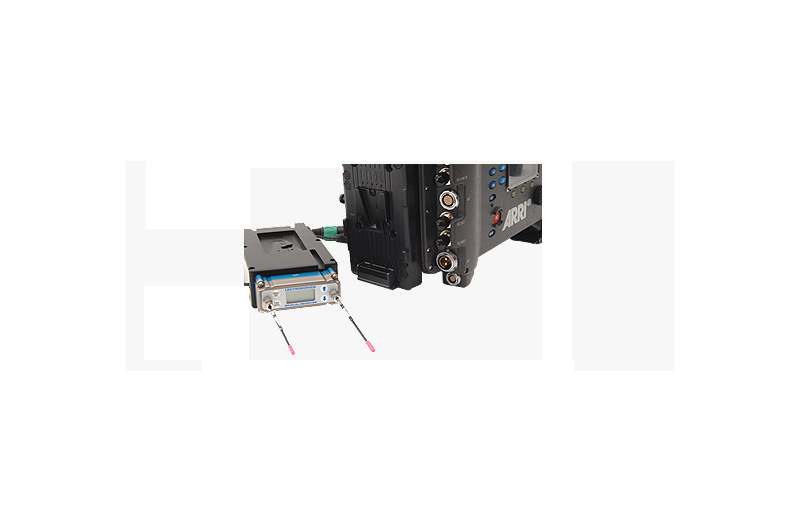

Many professional video cameras are equipped with a V-Mount battery terminal. But only few also offer a possibility for slide-in radio receiver. The Ambient VSLOT chassis provides the solution: it is mounted between the camera and battery supply, the power is looped through to the camera, powering the receiver. Here the common V-Mount system is being used, adaptation to other systems like e.g. Anton Bauer are possible with standard adapter panels.

The VSLOT can be used with all receivers equipped with a Unislot connector (25-pin sub-D). To offer highest flexibility, a TA5M jack is attached at the bottom, offering two balanced outputs for dual receivers. This way dangling cables become a relic of the past due to customized cables for every camera type.

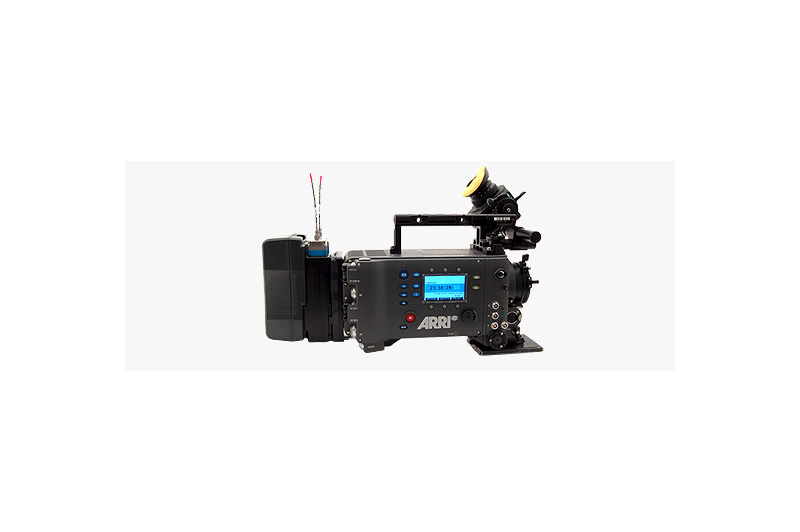

Thanks to the Ambient VSLOT every V-Mount equipped camera can be transformed into a compact ENG camera system.

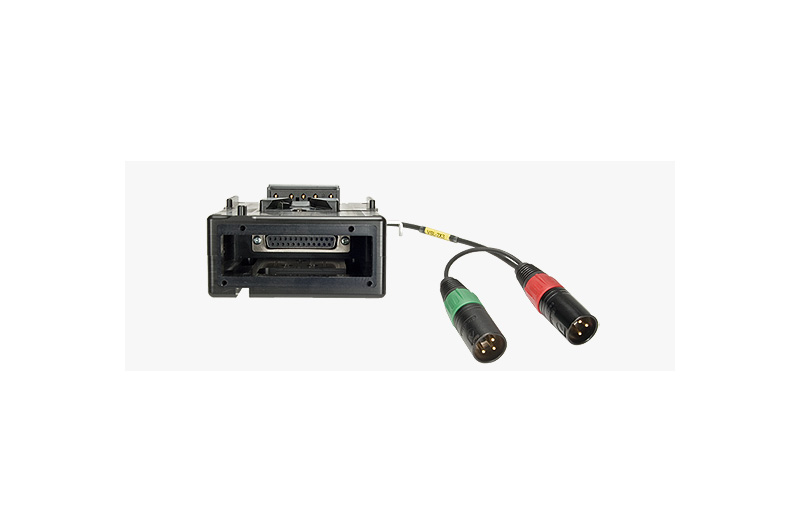

The Slot will be delivered with standard adapter cable VSL-2X3.
