Appsys Flexiverter FLX-AES3/SRC

Appsys Flexiverter FLX-AES3/SRC

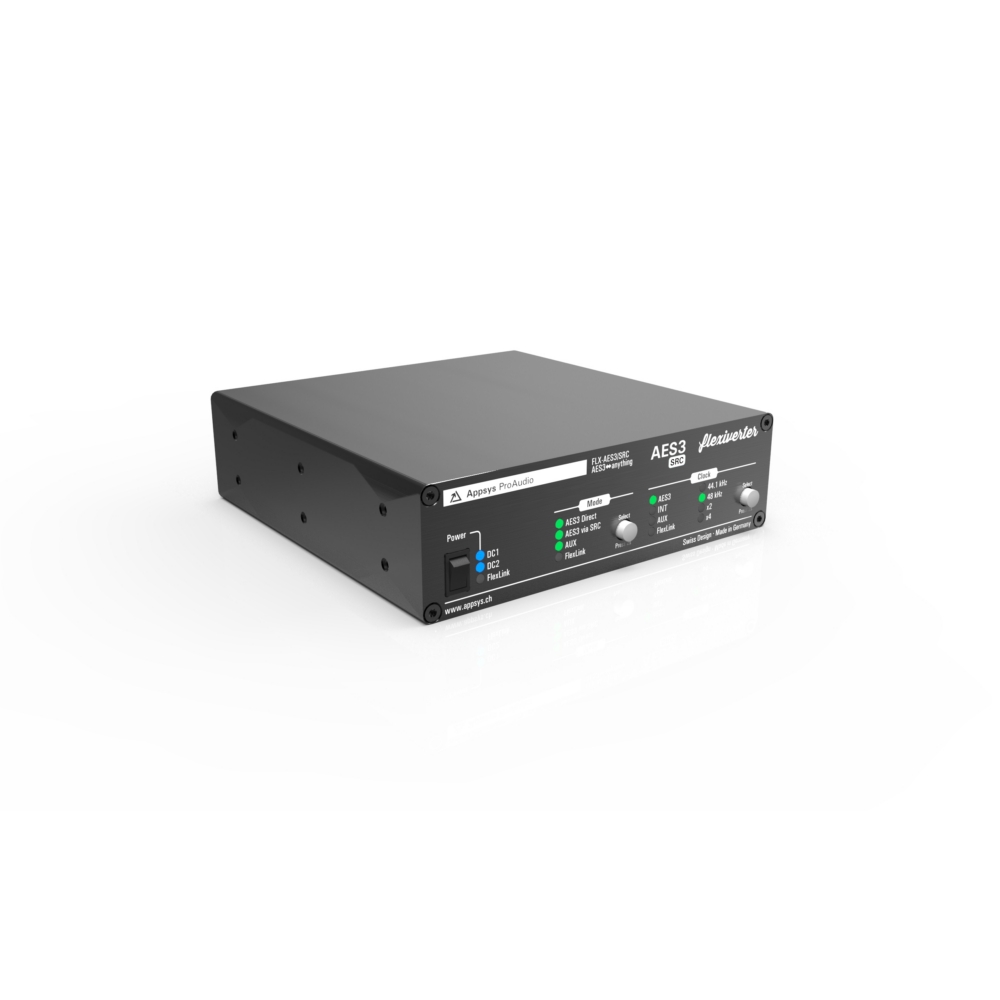

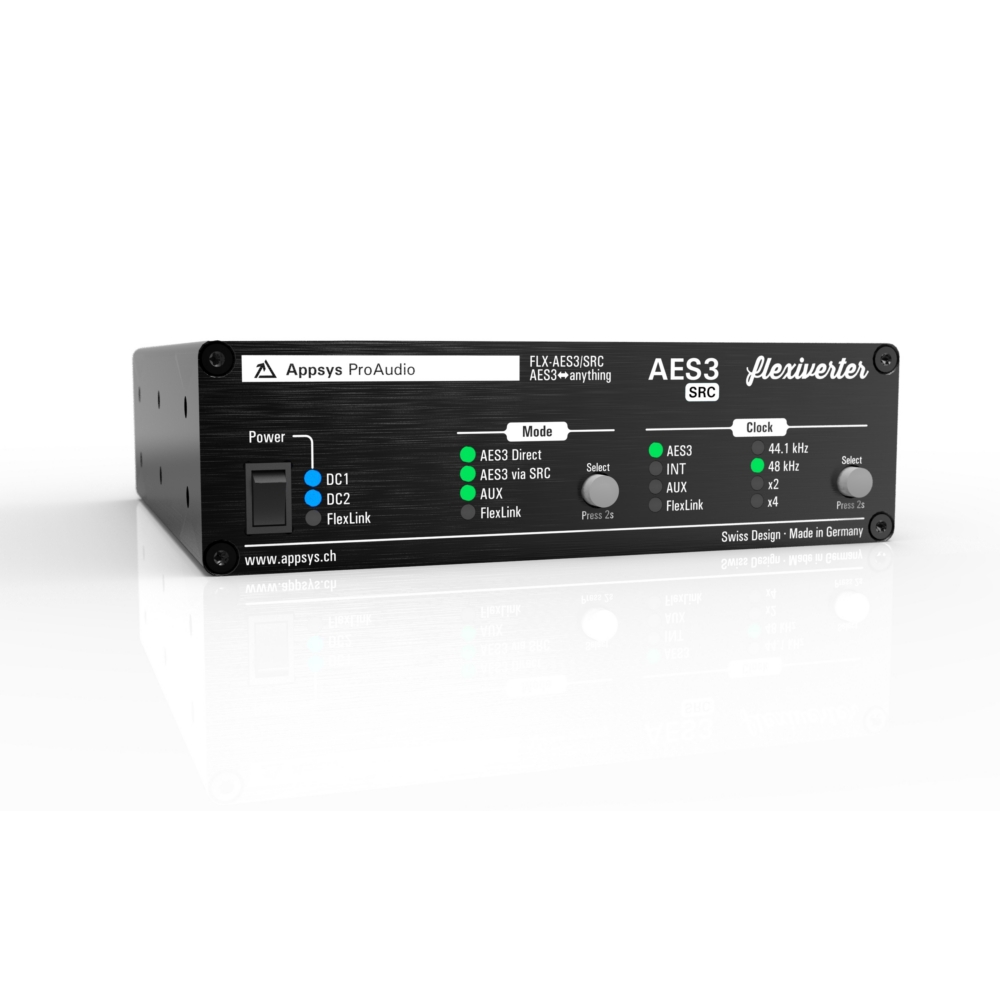

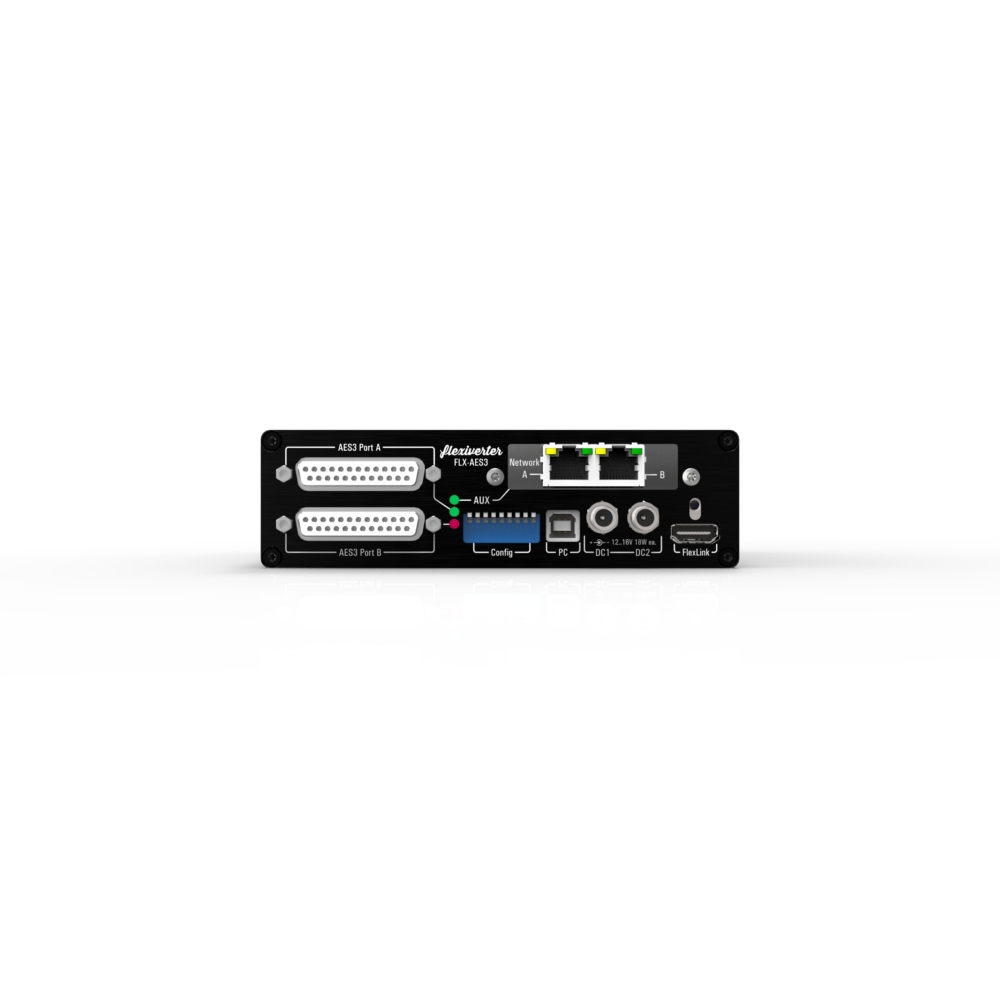

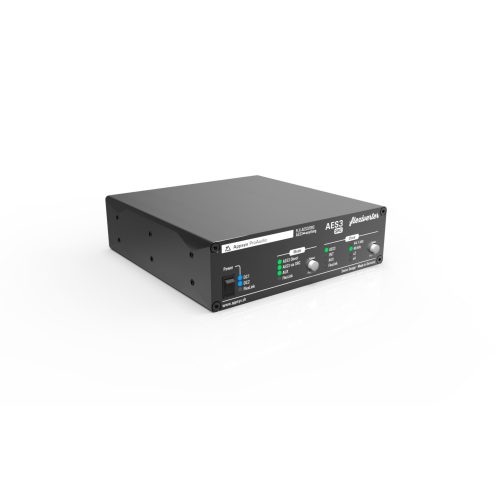

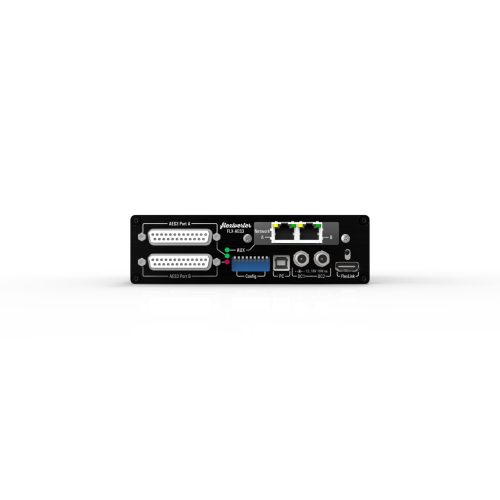

Appsys Flexiverter FLX-AES3/SRC — Compact AES3-to-anything converter with built-in Sample Rate Converters. It features 16×16 channels of AES3, which can be converted to any protocol installed into the AUX slot. Additionally, all AES3 inputs can be routed through individual built-in SRCs to match a common clock. For larger systems, the built-in channels (plus everything that an AUX card provides) are also available on the FlexLink port, making it possible to use it as extension to the MVR-mkII or another Flexiverter.

Features

• 16×16 channels of AES/EBU, fully transformer isolated
• Inputs can optionally be routed over 8 individual SRCs, to convert streams with different clocks to house clock
• 8 different input clock domains converted to the main clock domain, with top-notch SRCs (>120dB THD+N, >134dB DNR)
• AUX port accepting any of the AUX Cards as conversion source/destination
• Supports arbitrary sample rates in the range from 44.1…192kHz
• DB25 connector pinout (Tascam or Yamaha) selectable individually for each connector via internal jumpers
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
• Web-based Remote control (no software required), or UART command line
• Triple-redundant power supply
• Additional features when connected to the MVR-mkII–True channel-wise routing of all available channels (built-in plus AUX card)
