Audio Wireless Ltd. DADM226-MK2 Multi-band

1,350.00 USD

Quantity:

SKU: AUD.DADM226MK2MULTI Categories: , , Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

There are 2-Models in the new DADM226-MK2:

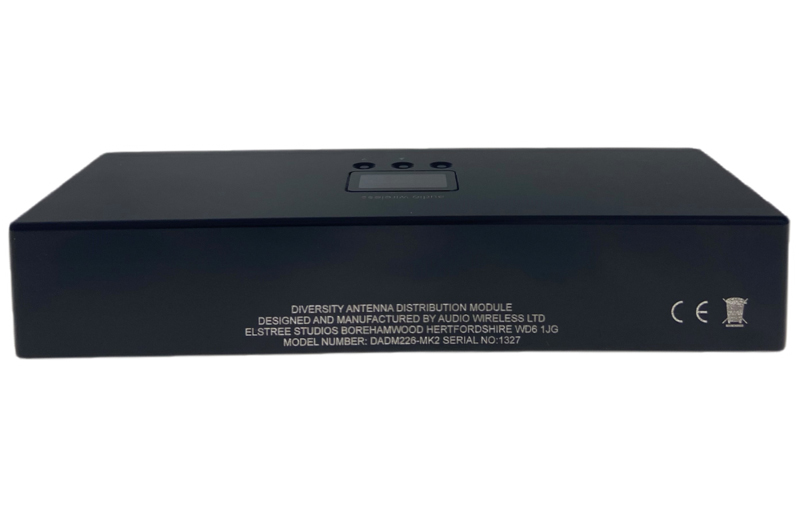

Diversity Antenna Distribution Module DADM226-MK2 is a custom design, which offers the solution to antenna and power distribution requirements for portable sound bag applications. Designed for where the weight and size matters without sacrificing on performance.

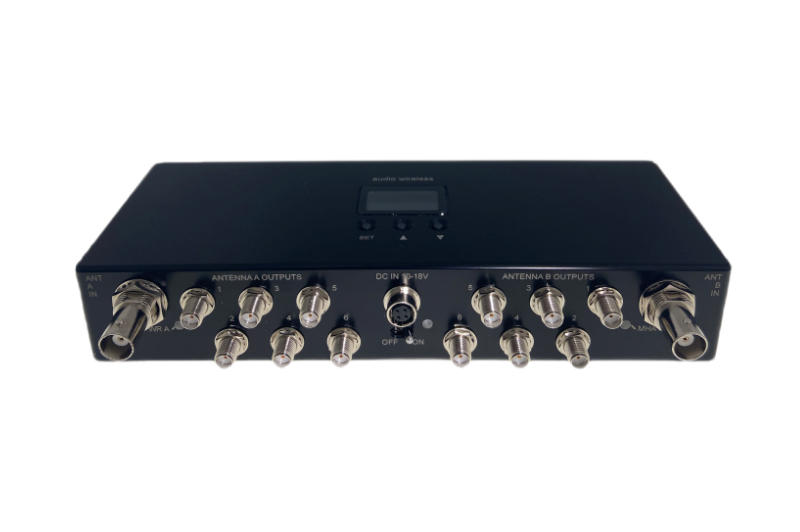

The DADM226-MK2 is a 2 IN and 2 x 6 OUT active antenna distribution system with 20 pre-programmed band-pass filtering; user adjustable system gain, the DADM226-MK2 eliminates multiple receiver antennas and provides a tidy sound bag solution with improved RF performance.

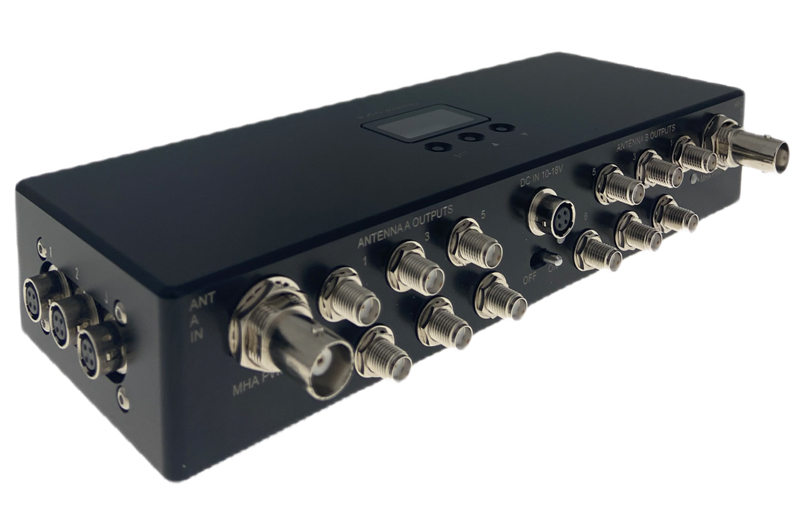

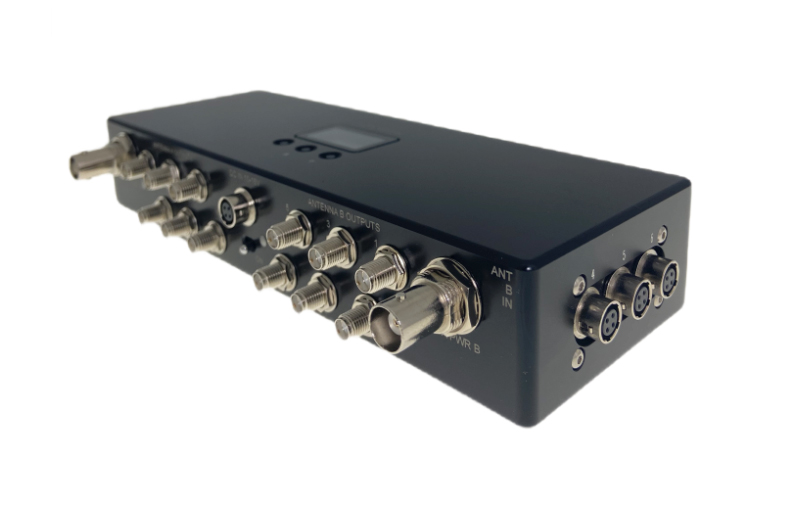

There are two industry standard BNC input connectors for antenna inputs which enables use of standard low loss RF extension cables, and there 2 x 6 mini-RF SMA connectors feeding the diversity receivers.

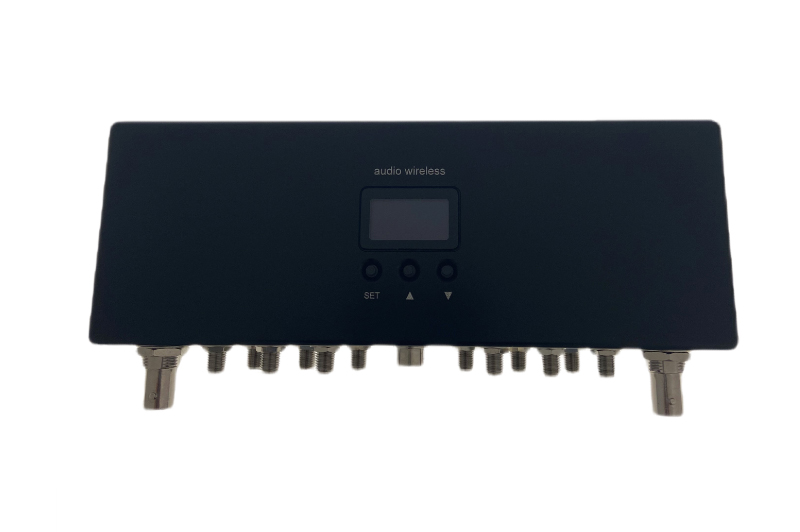

In applications when remote antenna powering is needed, the DADM offers switchable MHA powering with RED LEDs indicating power ON/OFF status, the MHA powering can be turned ON/OFF through the OLED display menu.
The DADM226-MK2 has a very high input signal handling capacity with very low noise figure and offers an outstanding inter-modulation performance when compared to other low power devices available.

The tuning bandwidth is custom designed to suit all popular radio microphone receivers available in the industry.

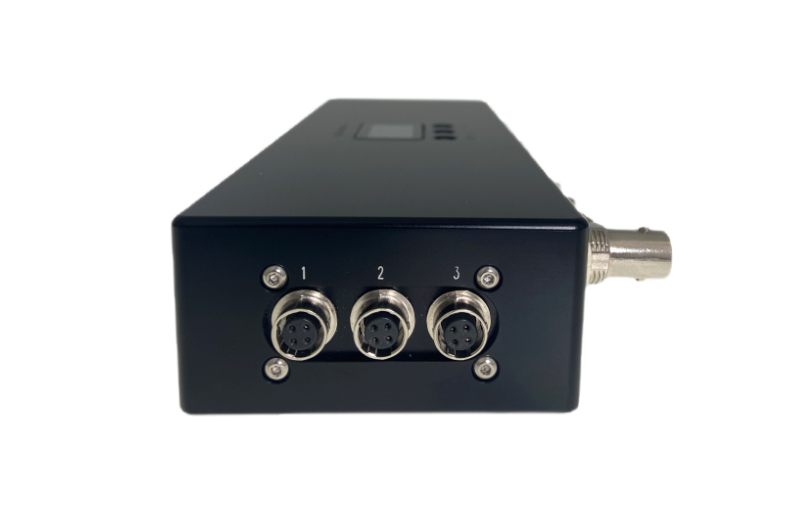

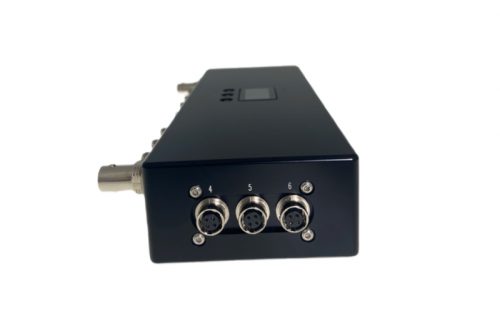

The DADM is externally powered between 10-18Vdc, the dc input connector is an industry standard 4-pin Hirose and there are 6 x Hirose dc output connectors available for powering any auxiliary equipment in any sound bag. Each dc output port can be individually turned ON/OFF through the OLED menu.

A green LED indicates power-on status of the system box and the OLED display continuously displays dc input voltage.

Powering for the multiple receivers can be powered through the DC Hirose output sockets. The dc output ports can be turned ON/OFF from the OLED display menu.

Audio Wireless wide tuning range systems are now first choice among freelance sound engineers, hiring companies as well as major broadcasters for all wireless microphone applications.

Key Features:

  • One pair of antennae feeds up to six diversity receivers
  • 20 Pre-programmed band-pass filtering, user adjustable gain
  • Remote antenna powering
  • 6 x Hirose dc outputs
  • Industry standard connectors
  • Intuitive OLED display menu and LED indicators
  • Single power source solution
  • Master ON-OFF switch
  • Continuous system volts monitoring
  • Soft ON/OFF switch for each individual receiver
  • Soft ON/OFF switch for each individual Remote Antenna powering
  • Soft ON/OFF switch for each Hirose dc output
  • CNC machined aluminium custom design, lightweight and rugged – fits neatly in any sound bag

MULTI-FREQUENCY TABLE

Line No: Freq Range: NOTES:
1 470-700MHz General
2 470-698MHz General
3 470-694MHz General
4 470-663MHz Wisy
5 470-654MHz Senn
6 470-608MHz AL
7 470-538MHz Lectro
8 470-548MHz AL
9 470-558MHz Senn
10 510-698MHz Wisy
11 512-614MHz Zax
12 518-608MHz AL
13 534-630MHz AL
14 537-614MHz Lectro
15 550-638MHz Senn
16 563-640MHz Lectro
17 594-694MHz AL
18 596-698MHz Zax
19 614-692MHz Lectro
20 630-718MHz Senn
Frequency Range470 to 718MHz
Input Impedance50 Ω
Output Impedance50 Ω
Gain (each output)+6dB to -14dB user adjustable
Current Consumption135mA@14V
BandwidthSelectable 20 pre-programmed bands in the 470-718MHz
OIP3> +41dBm
Port to Port Isolation>20dB (min.)
Noise Figure< 3 dB
CONNECTIONS
RF Inputs2 x 50 Ω Standard BNC sockets
Antenna Outputs to Receivers 2 x 6, 50 Ω SMA sockets
Main ON/OFF SwitchMaster switch
DC Power OUT6 x 4-pin Hirose sockets individually fused and protected against reverse polarity.
DC Input PinoutsPin1&2 (-ve) and Pin3&4 (+ve)
DC Output PinoutsPin1(-ve) and Pin4 (+ve)
POWERING
DC Input Power10-18V, reverse power and short circuit protected
Remote Antenna PoweringSwitchable dc T-bias powering,12Vdc @ 400mA max, regulated for active antenna powering, short circuit protected
Hirose DC OutputUnregulated incoming volts, switched, individually fused and protected against reverse polarity and short circuit
OUTER CASE
Dimensions192x69x35mm (W x H x D)
Weight415g
