AudioPressBox APB-320 C-USB

3,643.00 USD

AudioPressBox APB-320 C-USB — Professional portable active pressbox with 2 analog Line/Mic inputs, 1 digital USB-C input & output, and 16 analog Line/Mic & 4 Digital USB-C outputs.

Quantity:

SKU: APB.APB320CUSB Category: Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

AudioPressBox APB-320 C-USB

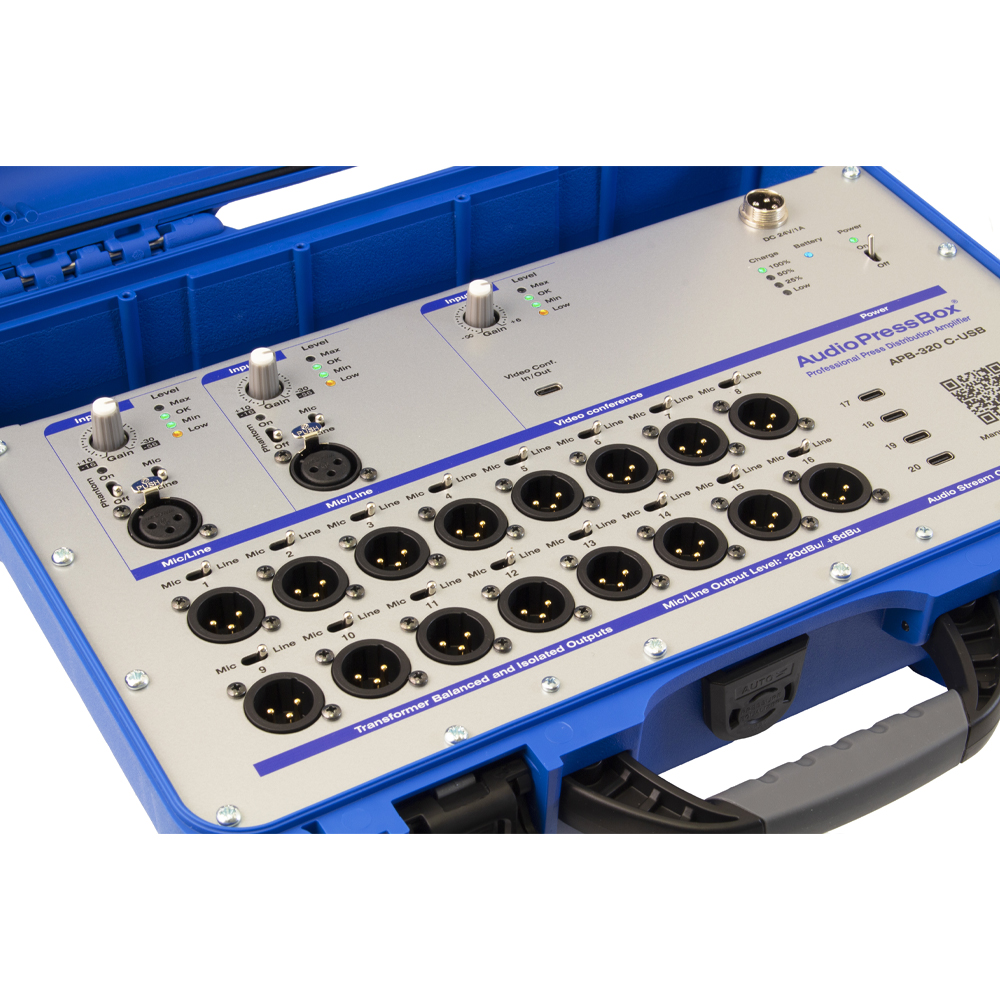

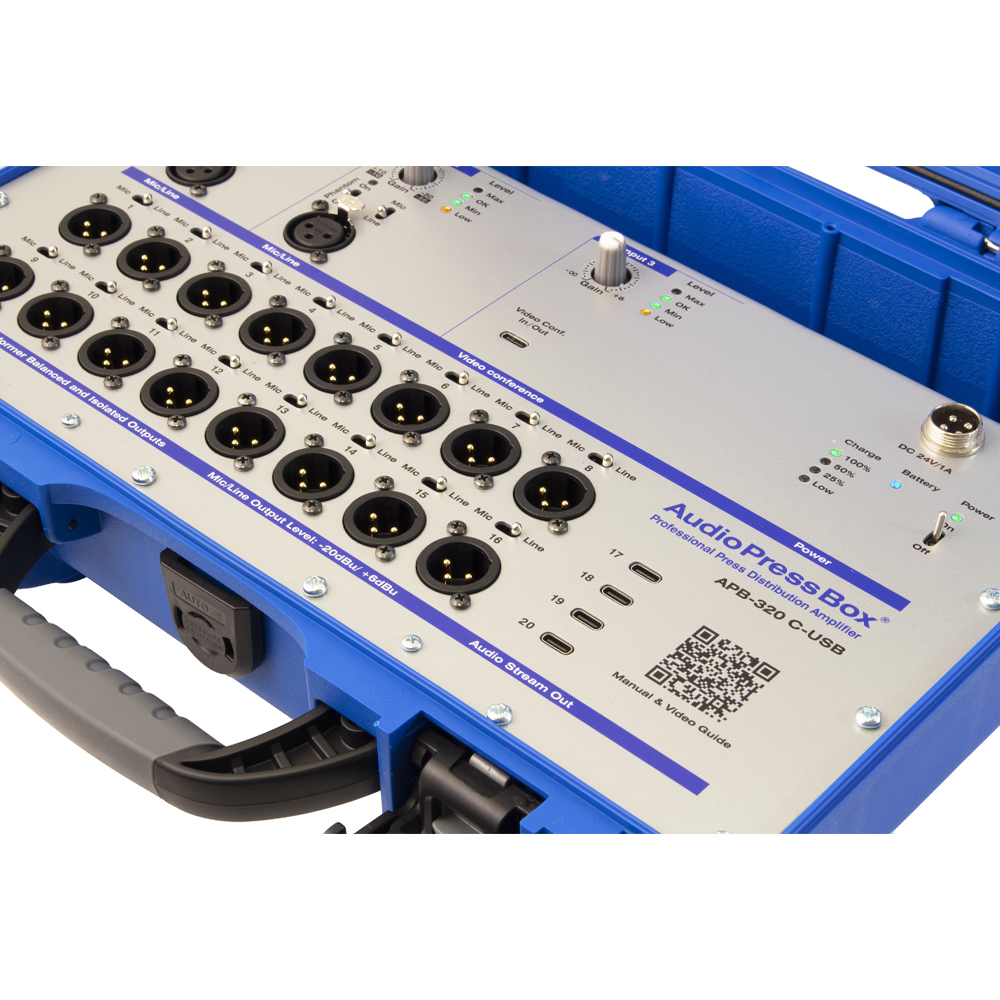

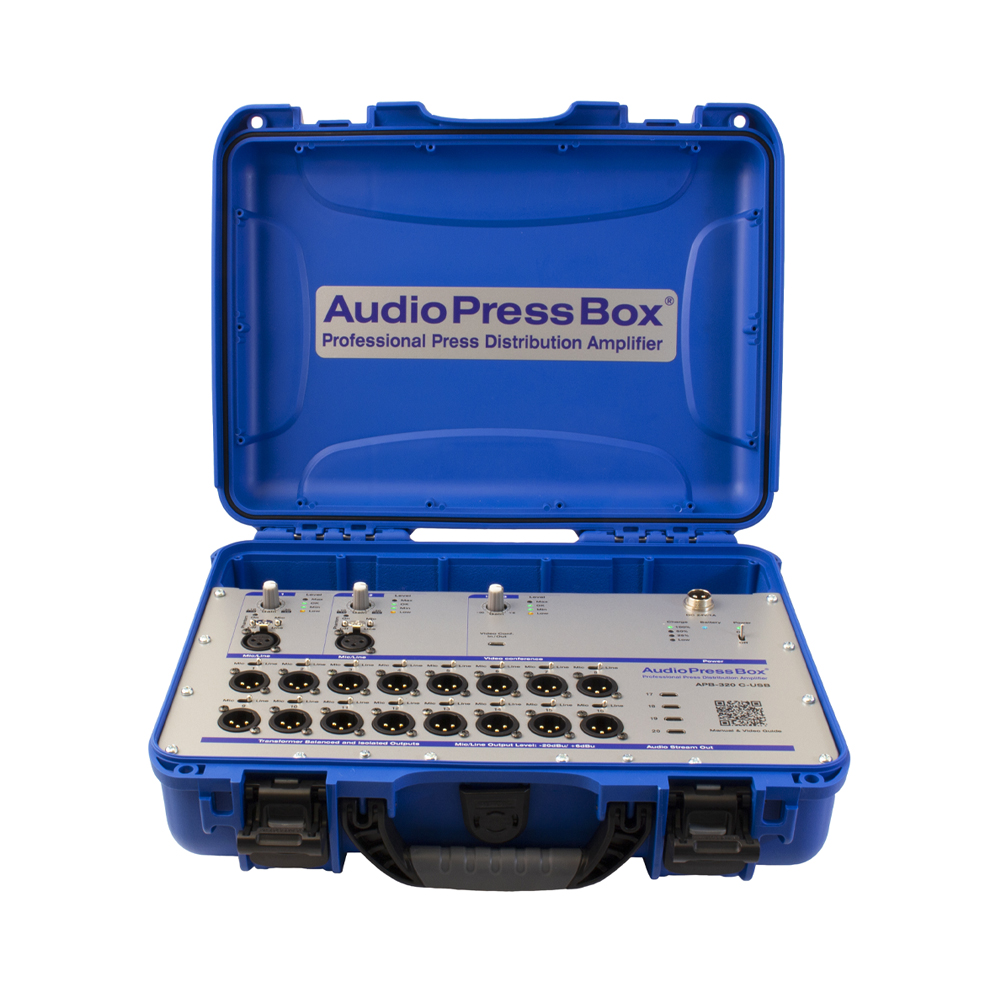

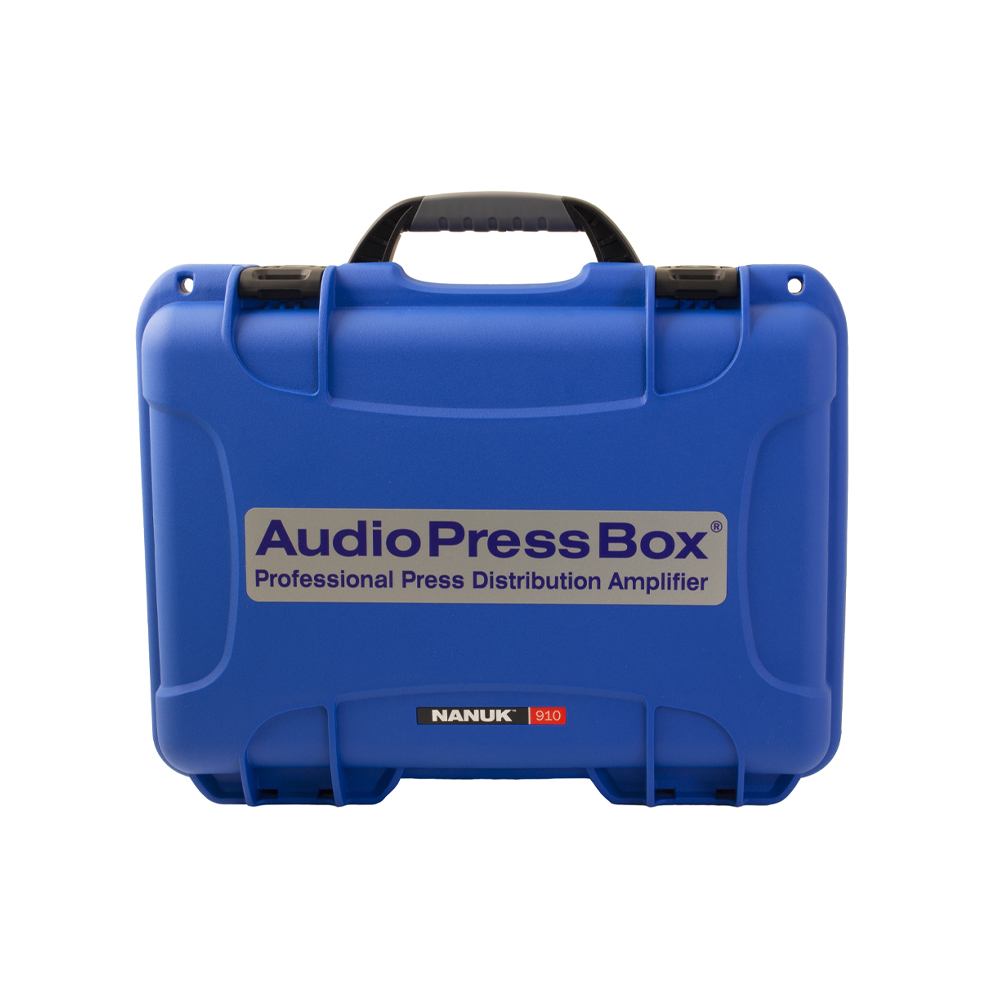

AudioPressBox APB-320 C-USB — Professional portable active press box with 2 analog Line/Mic inputs, 1 digital USB-C input & output, and 16 analog Line/Mic & 4 Digital USB-C outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable AccuPack and heavy-duty Nanuk case. The USB-C also allows a video conference in & out connection for a hybrid press conference.

APB-320 C-USB Features:

  • 2 Analog MIC (phantom power) / LINE inputs – balanced with gain control and 26dB PAD
  • 1 Digital USB-C input & output
  • 16 Analog XLR balanced and individually transformer-isolated outputs
  • Mic/Line inputs and Mic/Line outputs
  • XLR outputs are switchable between MIC or LINE output level
  • 4 Digital USB-C outputs
  • Built-in Compressor and Limiter for Analog (XLR) inputs
  • Rechargeable Li-Ion AccuPack with microprocessor controlled battery management — 20 hours
  • 20 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
  • On unit printed QR code for online access to manual, user guide and video guide
  • USB-C inputs & outputs
  • Portable and easy to operate
  • IP 67 waterproof case

Specifications

Type 3 in 20 out
Groups 1
Input section
Inputs 2 analog, 1 digital
Analog Inputs
Input connectors Balanced, XLR
Input Gain Mic: +22/+62dB Line: -4/+36dB
Max. input level Mic: -10/-30dBu Line: +36/-4dBu
Phantom Voltage 48V
Input Impedance Mic: 2,4 kΩ Line: 3,5 kΩ
Digital Inputs
Input connector USB Type C
Compliant USB Specificaion USB 2.0
Input Gain -∞/ +6 dB
Supported Sampling Rates 32kHz, 44.1kHz, 48kHz
Bit Depth 16-Bit
Interface Powering: Bus Powered*
Charging capability: No
Output section
Outputs 16 Analog with Line/ MIC level, 4 Digital
Analog Outputs
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load)
+14dBu (600Ω)
Output impedance Mic: 220Ω Line: 600Ω
Transformer isolated outputs Yes (each output)
SNR 86dB
Frequency Response 120Hz to 30kHz/ -3dB
Digital Outputs
Output connector USB Type C
Compliant USB Specification USB 2.0
Supported Sampling Rates 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
Bit Depth: 16-Bit
Interface Powering: Internal
Charging capability: Yes, max. 0,5A
Controls
Input section 26dB PAD, Input gain, Phantom
Output section Power switch, Output PAD
Indicators
Input section Phantom power, Input level
Power
Power Supply 24V DC, 1A external adaptor
Battery Li-Ion, 14,4V 2200mAh
Battery operation time up to 20 hours
Mechanical
Dimensions (WxHxD) 370x 120x 300mm
Weight 5.2 kg
