COGA Sound BPS Battery Power System

From: 250.00 USD

COGA Sound BPS Battery Power System — The Attach Anywhere, All-In-One, Chain-Able Sound Bag Power Solution

Each unit purchased includes selection of one (1) COGA clip

Clear

Description

COGA Sound BPS Battery Power System

The COGA Sound BPS Battery Power System is a revolutionary approach to sound bag power. Instead of splitting the power system between a battery and traditional distribution system, the BPS combines everything into a compact unit with a footprint only slightly larger than the battery itself. The BPS is compatible with any eSmart style battery, large or small.

The BPS is perfectly at home in every sound bag, from the smallest micro-kit and to the heaviest rigs. It provides a total of 6A across 4 outputs, each capable of delivering 3A. It includes 1 hardline output with battery telemetry and 3 locking DC outputs. All outputs are switched, with the option to disable for the hardline.

Each unit purchased includes one (1) Basic clip of the customer’s choice from the list below. Additional clips may be purchased separately.

Size Matters

The BPS’ small, compact size allows it to fit in places where traditional power systems are too large and bulky. It features an interchangeable clip system that mates with the the attachment points commonly found on sound bags. These include Molle straps (K-Tek and tactical bags), Mod-U-Lox (Schatler, Petrol and Protogear), and Buddy-Lok (Orca), as well as the Bag Anchor for internal receiver straps.

The BPS is a modular system that multiple units to be chained together. This allows the BPS to power more devices and enables battery hot-swapping, even mid-take.

BPS System Features:

All-in-one system

  • Powers multiple devices
  • 1 Smart Battery input
  • 1 Hard-lined output
  • 3 Switchcraft (761k) locking dc jack outputs
  • A compact design with a small footprint

Attach Anywhere

  • Customizable to every sound kit
  • Swappable Clips designed to attach to different bags

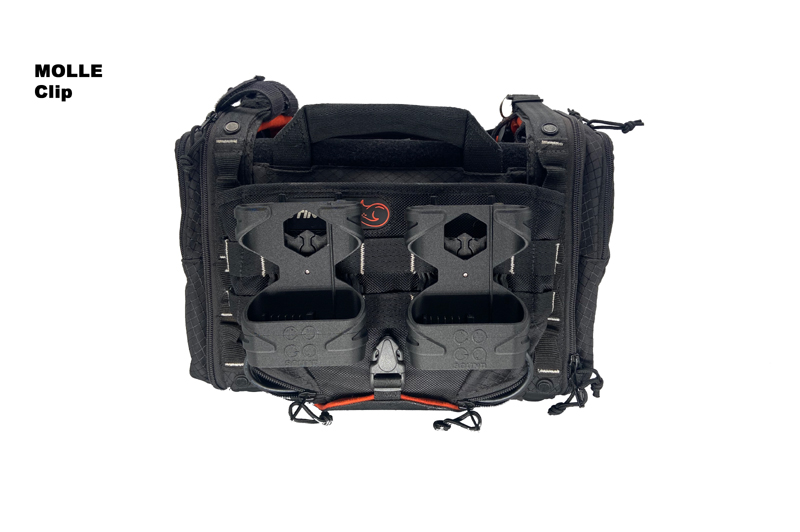

  • MOLLE Clip attaches to the outside of Ktek Sting Bag or any MOLLE bag. Compatable with 1 or 2 loop MOLLE

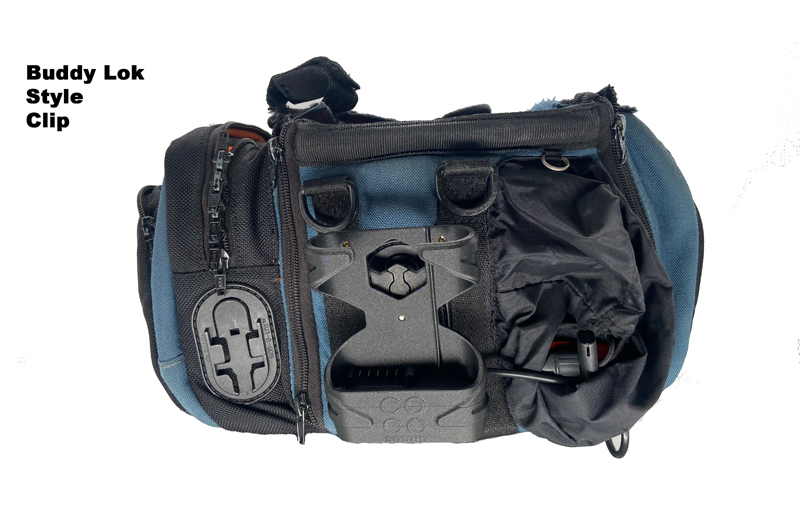

  • Buddy Lok Style Clip attaches to the outside of Orca Bags

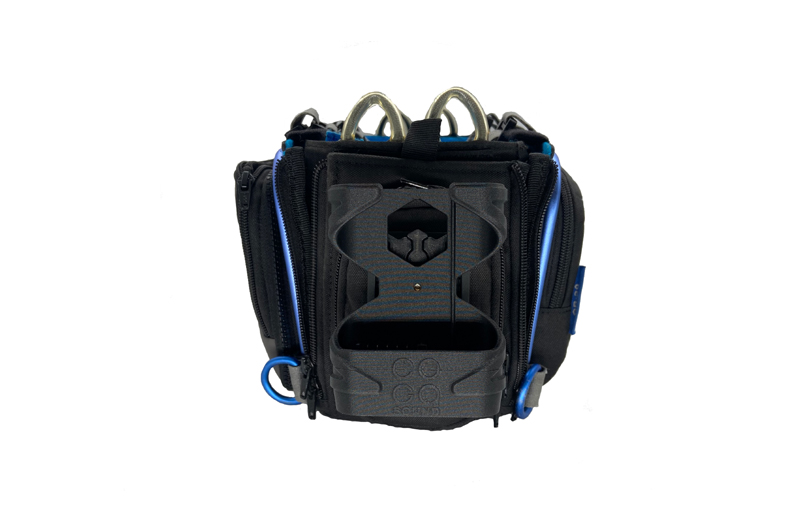

  • Mod-U-LOX Style Clip attaches to the outside of Schatler, Petrol, and Protogear Bags

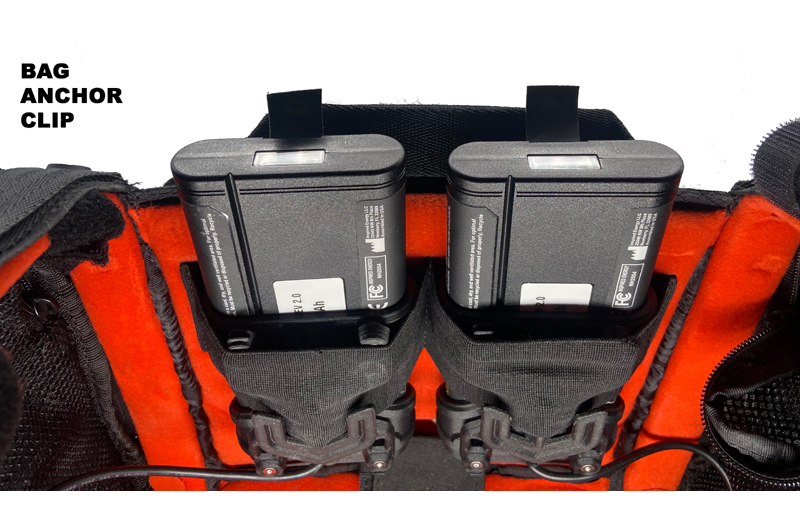

  • Bag Anchor Clip attaches to the inside of any bag with a receiver sleeve. Works with Ktek Stingray, Orca, Schatler, Petrol, and Protogear bags

Daisy Chain BPS units

  • Chain multiple units using Bridge Mode
  • Provides redundant power
  • Allows hot-swaping of batteries
  • Expands the number of outputs
  • One battery can power multiple BPSs

Quick Draw Battery Swaps

  • A battery can be changed with one hand
  • Batteries are held in securely

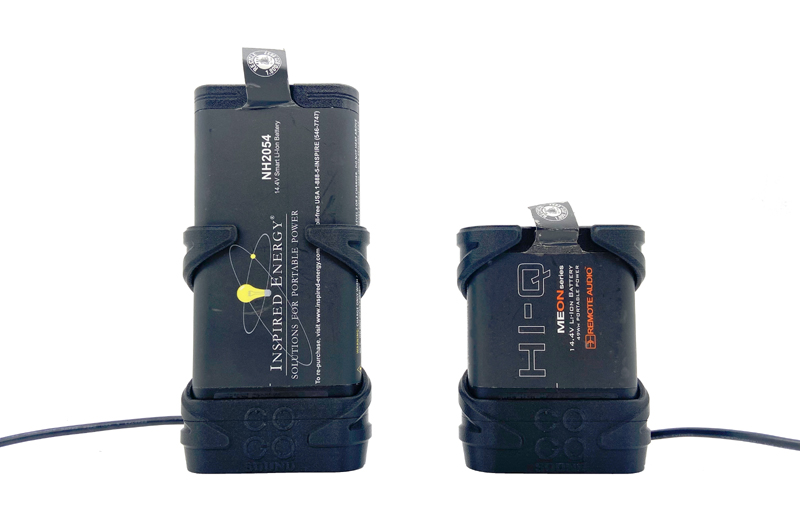

  • Supports large and small smart batteries
  • Battery data display always faces up

Battery Telemetry

  • Output 1 is a four-wire SMBus cable
  • Provides battery data to compatible recorders or other SMBus devices
  • Displays battery cycles, voltage, time remaining, and instantaneous current pull

Swappable output cable

  • The Output 1 cable is user replaceable
  • No soldering required
  • Multiple output connectors available

Fused Input and Outputs

  • The Input is fused at 6A
  • Each output is fused at 3A
  • Uses all self-resetting PPTC fuses

Output Cables

  • Replacement Hard Lined cables available
  • Output cables are standard BDS DC cables. Right angle Switchcraft 761k are recommend

In The Box

  • 1 BPS Unit
  • 1 Output cable (Hirose or TA4f)
  • 1 Attachment Clip (MOLLE, Buddy Lok style, Mod-U-Lox style, or Bag Anchor)
  • 1 M3 x 16 Screw
  • 1 spare M3 x 8mm Screw
Weight: 124g, 4.38 oz
Input: Max 24v, 6A fuse
Output 1: Hard-lined output cable, max 24v, 3A fuse, Hicon TA4f or optional Hirose 4-pin connector

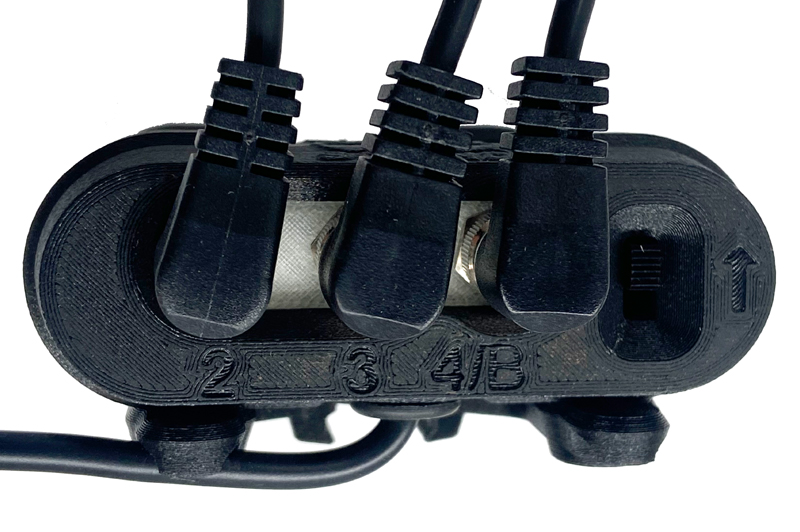

Outputs 2-4: Output jacks, max 24V, 3A fuses, 2.5mm ID x 5.5mm OD locking DC Jack, compatible with Switchcraft 761K connector or similar
Bridge mode: 2.5mm x 5.5mm locking DC connector, max 24v, no input fuse. Same as Output 4. Attach ONLY to the Bridge connector of another COGA Sound Battery Power System (BPS). Do not use with any other battery or power source.
Supported Batteries:
  • Audioroot eSmart Li-98Wh & Li-49Wh
  • Audioroot eSmart Li-96Neo & Li-48Neo
  • Inspired Energy NH2054HD34 & ND2054HD34
  • Remote Audio Hi-Q 98Wh & 48Wh
  • RRC Power Solutions RRC2054 & RRC2054-2
  • Sound Devices XL-Smart Battery
