Core SWX PD Pro Power Cables

Core SWX PD Pro Power Cables

Core SWX PD Pro Power Cables — Built for durability and reliability. Reinforced connectors ideal for the rigors of production environments. The right-angle design allows for easy cable management and reduces strain on connections. Intended for professional use, PD Pro power cables offer long-lasting performance in any setup.

With a focus on lightweight design, versatility, and reliability, the PD Pro Connection revolutionizes power distribution, offering unprecedented freedom for creative expression. Designed to meet the evolving needs of today’s production environments.

Core SWX PD Pro Features

• Reversible connector eliminates polarity concerns and ensures hassle-free connections
• Wide voltage range output, catering to all your power needs with ease.
• Advanced SDI technology ensures seamless operation without any interference
• Lightning quick 10-millisecond connection
• Each connection delivers up to 145 watts of output for consistent performance.
• A secure AUX connection for securely powering your accessories
• Integrated support for video transmission with integrated support
• Built-in networking support for seamlessly connecting to networks for streamlined workflows and enhanced collaboration

Cable Versions

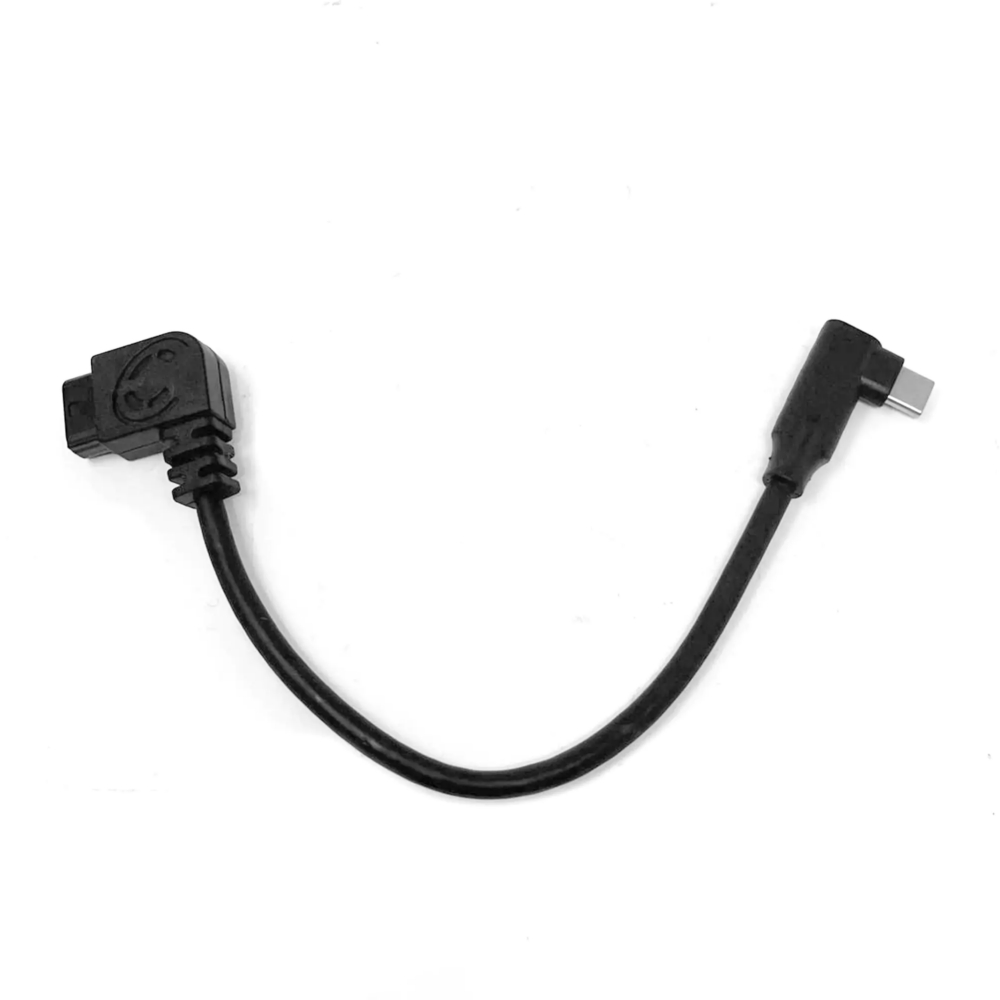

• PDP-USBC: 8″ PD Pro to USB-C PD Right angle
  • Compatible with all devices that accept a USB-C PD power input

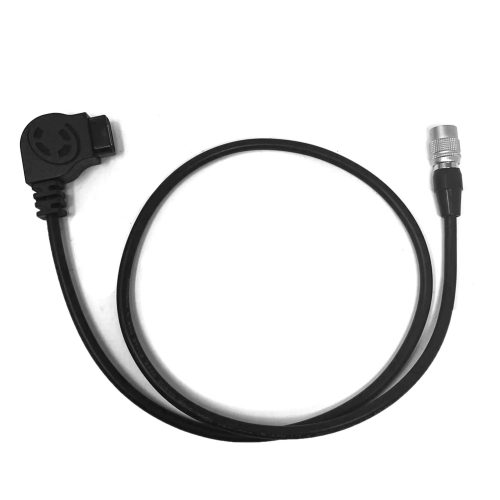

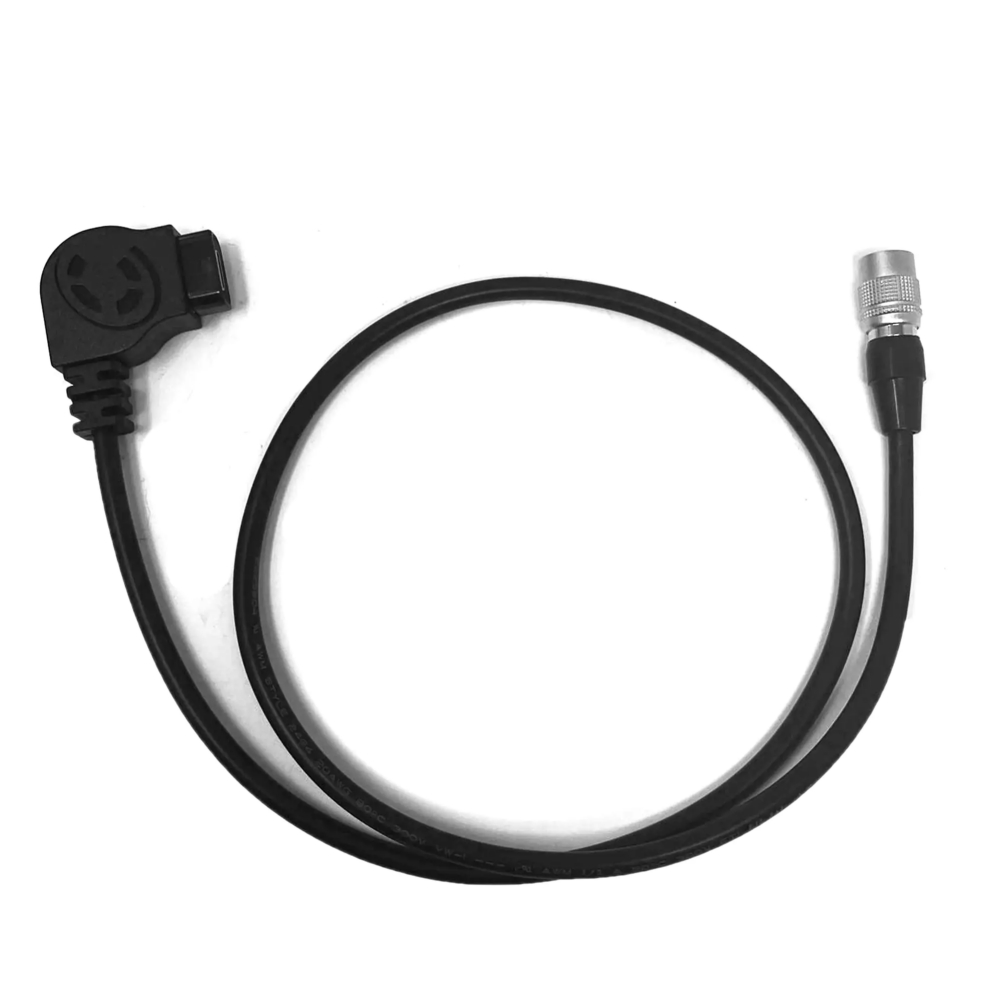

• PDP-HRS4: 24″ PD Pro to 4p Hirose, 12v
  • Compatible with Sound Devices products which accept a 4-pin Hirose power input

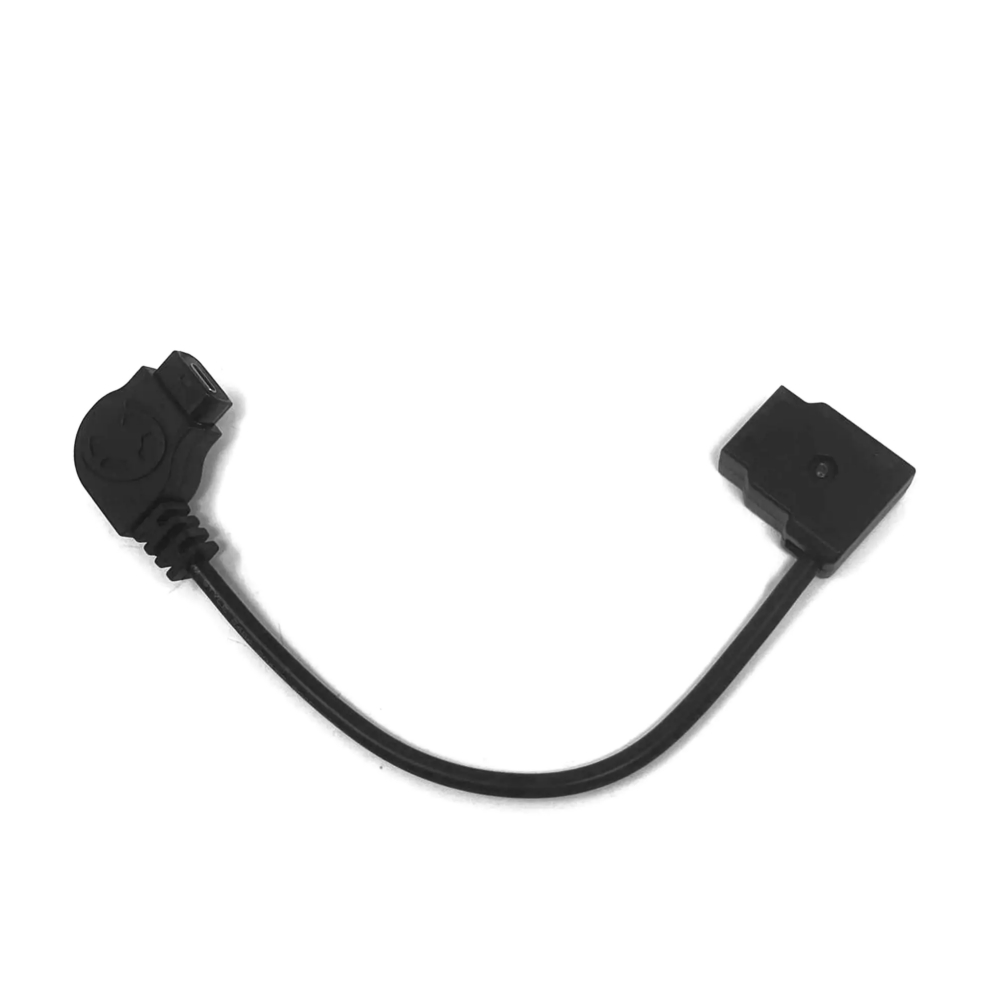

• PDP-PTF PD: 6″ PD Pro to Female Ptap, 12v

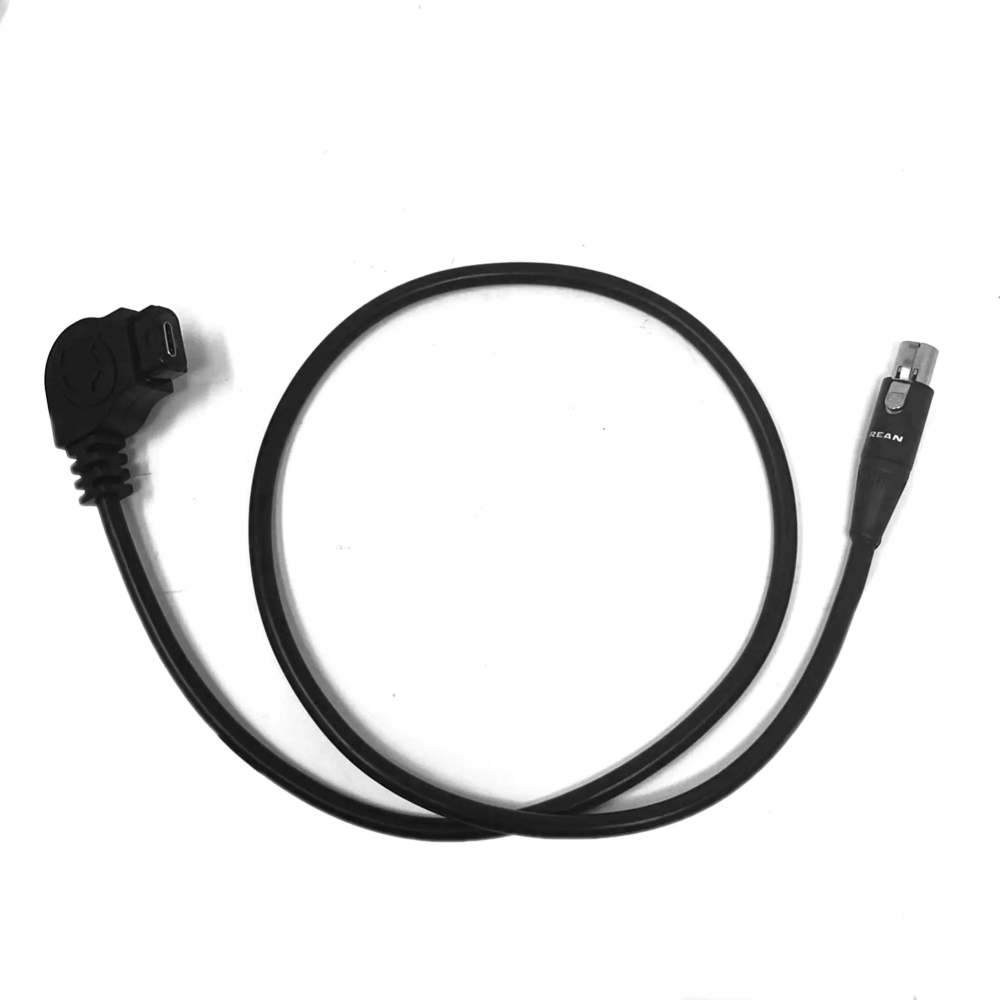

• PDP-TA4: 24″ PD Pro to 4pin TA4 connector, 12v; supports SMBUS battery telemetry

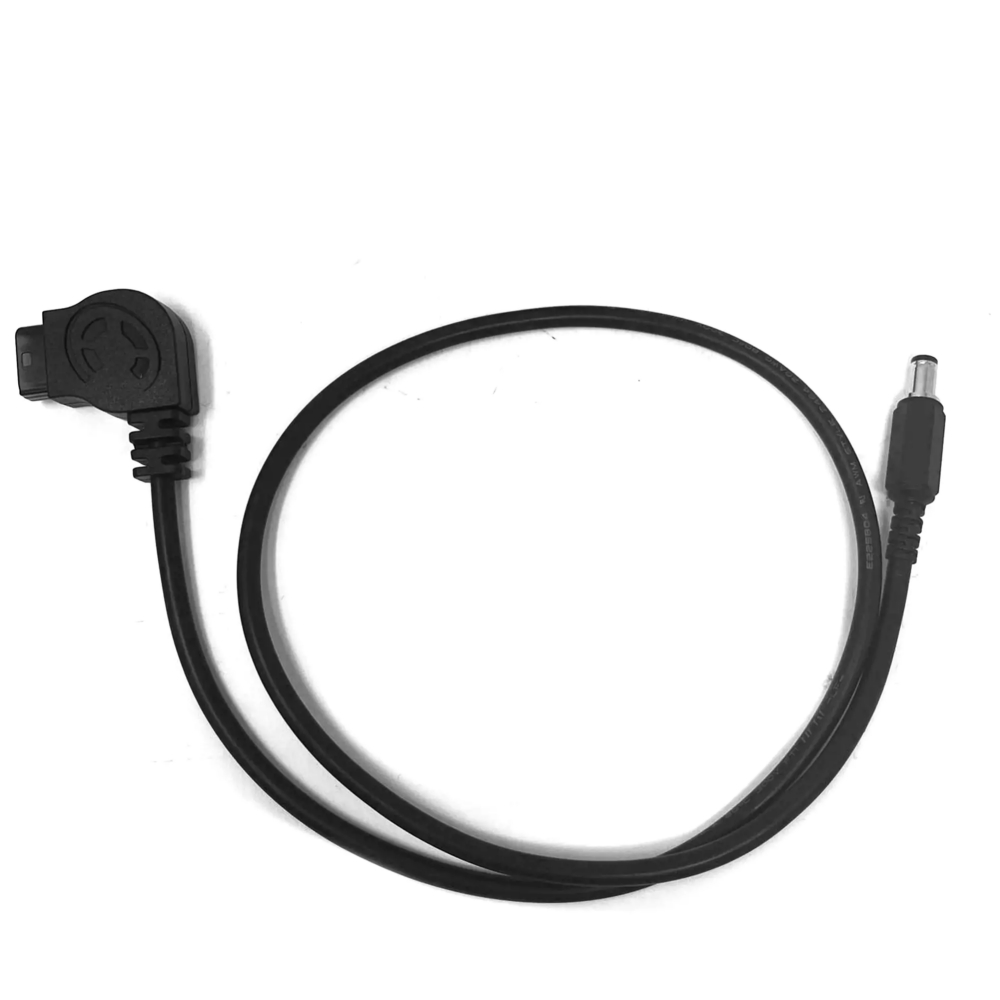

• PDP-DC12: 24″ PD Pro to DC 2.5 x 5.5 DC connector, 14v
  • Compatible with Canon C70, Atomos Ninja and Shogun monitors, Blackmagic Video Assist recording monitors, and SmallHD monitors

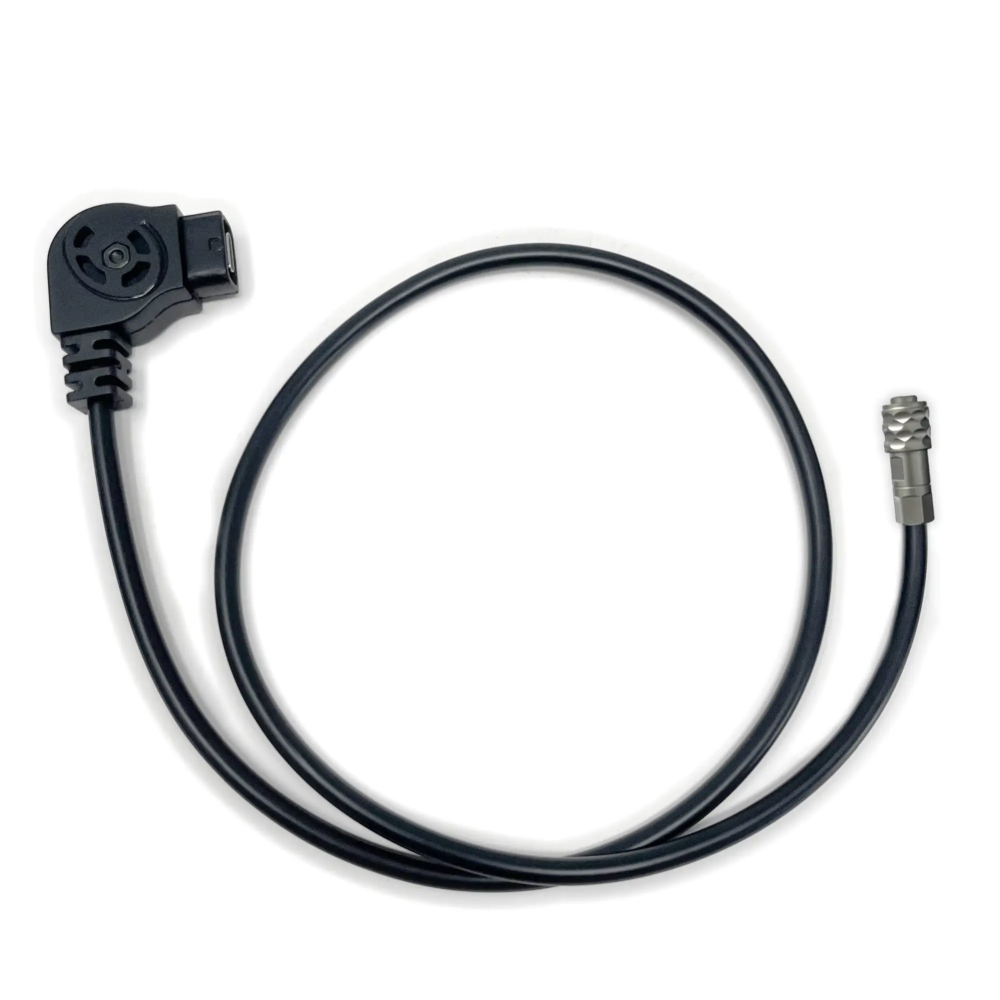

• PDP-BMPC4: 24″ PD Pro to 2pin BMD connector, 12v
  • Compatible with Blackmagic Design Pocket 4K/6K/6K Pro

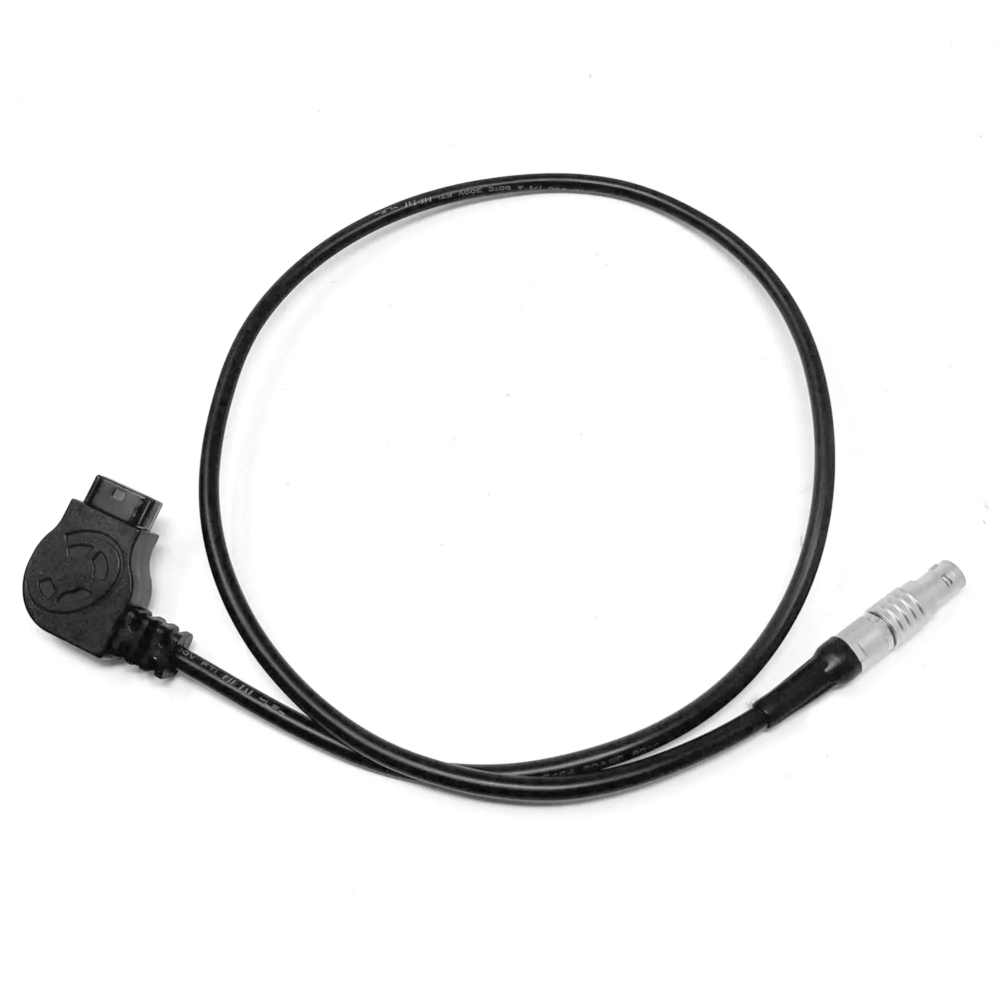

• PDP-2PL: 24″ PD Pro to 2pin Lemo-type connector, 12v
  • Compatible with Blackmagic Design Pyxis, SmallHD monitors, and Teradek devices

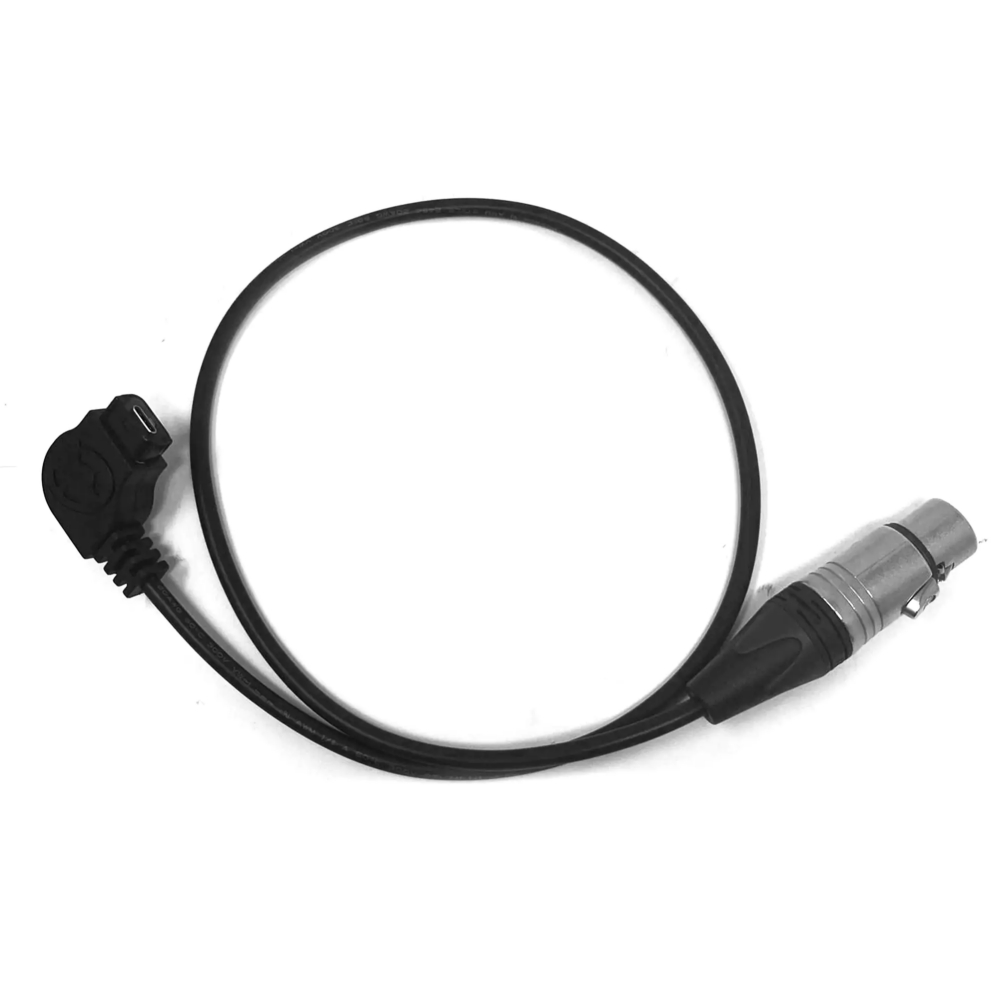

• PDP-4PXLR: 24″ PD Pro to 4pin XLR connector, 14v

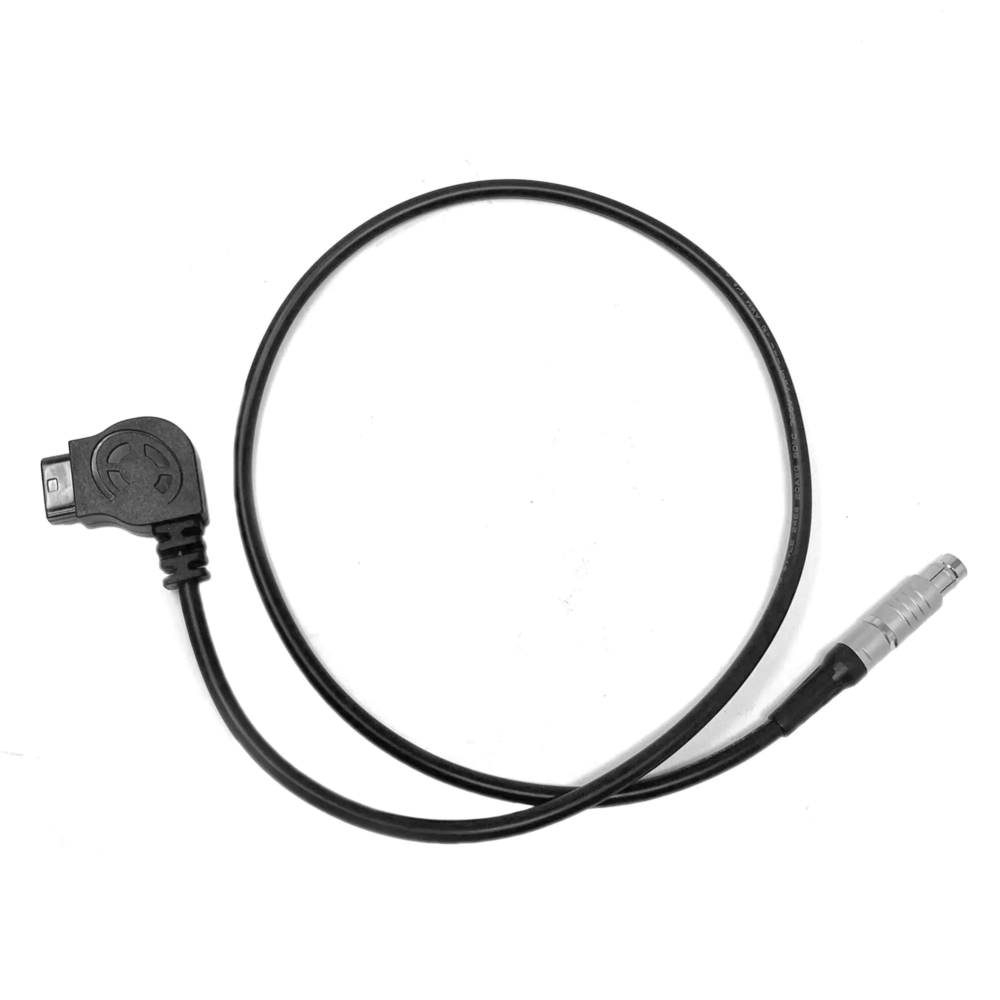

• PDP-3PF: 24″ PD Pro to 3pin Fischer-type connector, 24v

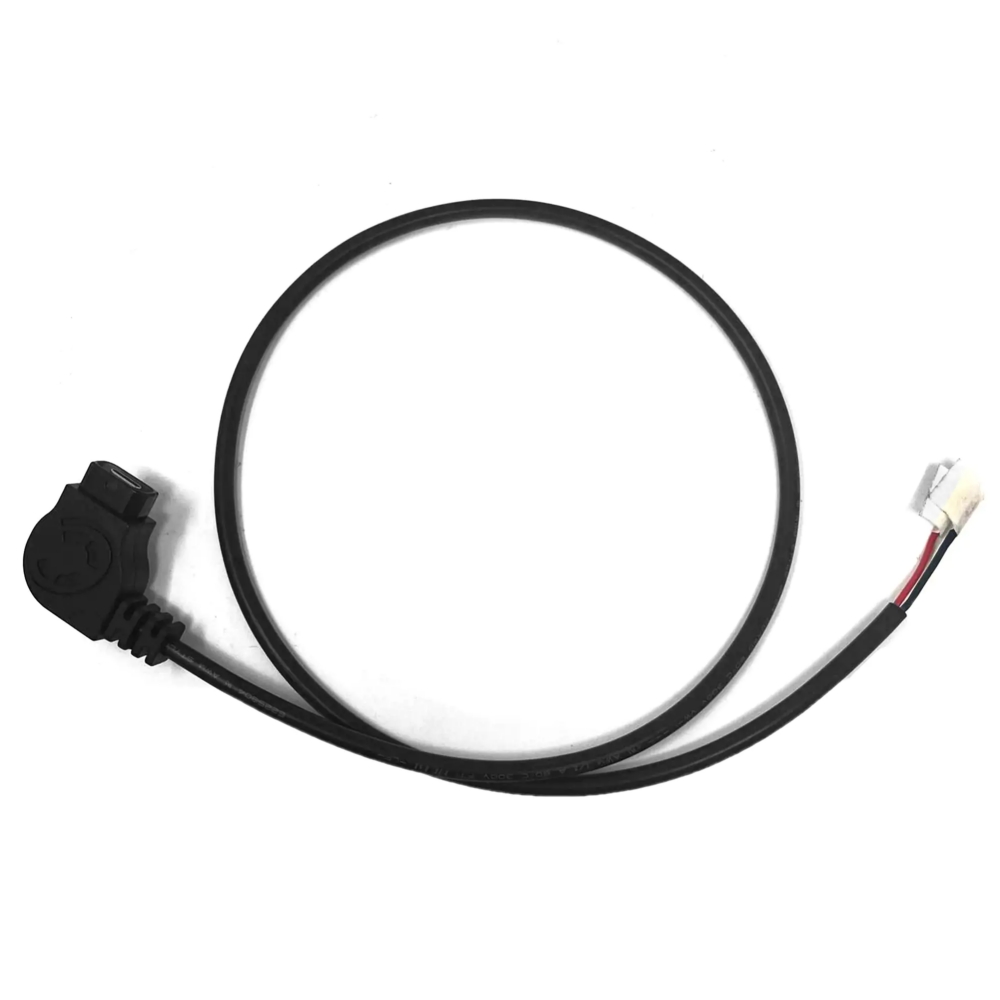

• PDP-FL: 24″ PD Pro to Flying Leads, 5v/15v/20v/28v

Technical Note

Core SWX PD Pro is a highly adaptable power platform designed to support a wide range of auxiliary video and audio devices, offering flexible power output solutions tailored to various production needs. While the PDP-USBC cable allows the connected device to determine the necessary voltage, all other PD Pro cables deliver a fixed voltage pre-set by Core for each specific application. These fixed outputs are optimized to ensure peak performance for your devices.

It’s important to verify that your devices can handle the fixed voltage provided by PD Pro cables, similar to how you would with an unregulated P-Tap cable. For example, while unregulated P-Tap cables may output a wide voltage range (11-17V DC), a PD Pro cable designed for 12V 2-pin LEMO input devices consistently provides a regulated 15V output. This mid-range voltage is carefully calibrated for balance and efficiency, ensuring neither excessively high nor low output, maximizing device stability.
