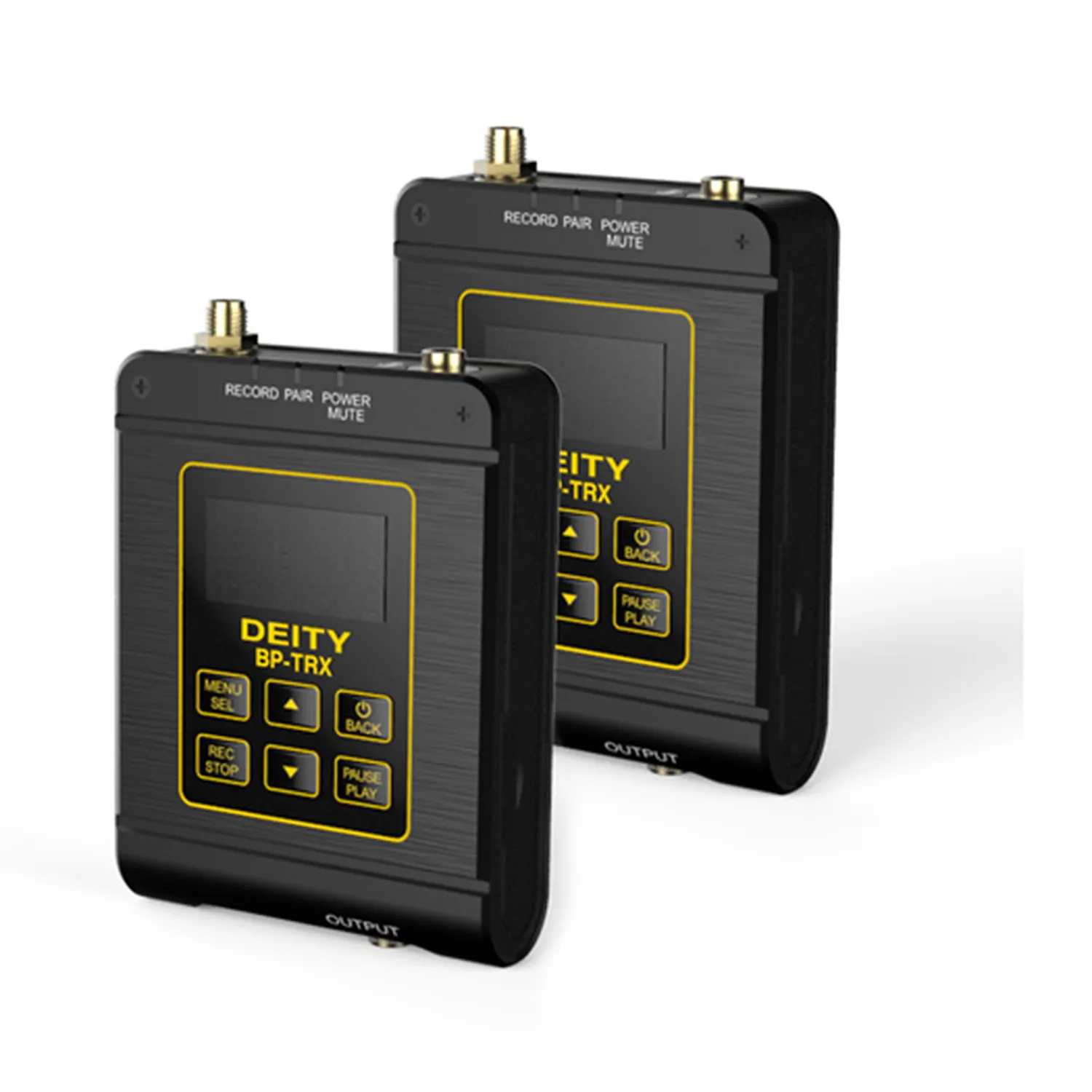

Deity Connect Timecode Kit

479.00 USD

  • Works as a single channel wireless system
  • Can also be used as a pocket recorder or timecode box

Quantity:

SKU: DEI.CONNECT TIME KIT Categories: , , , , Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

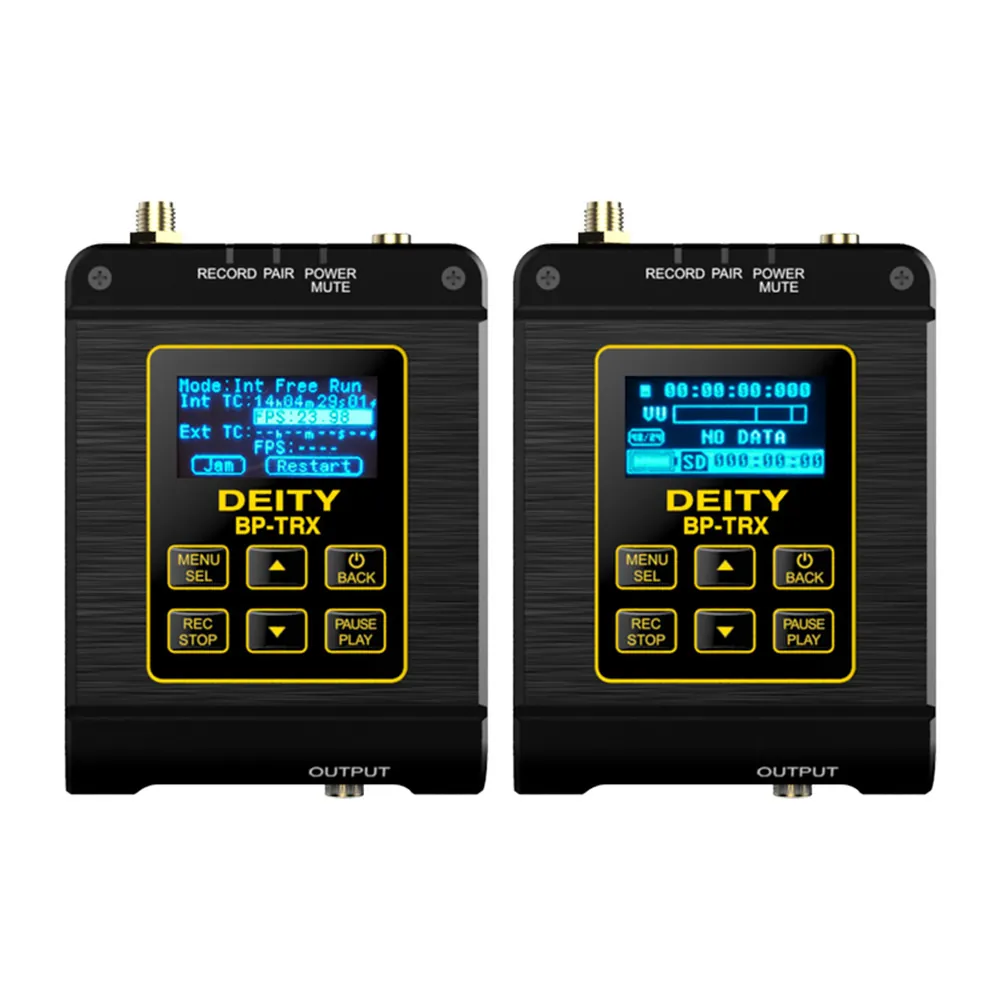

The Deity Connect Timecode Kit is a singlechannel digital wireless system that can double
as dual audio recorders when the user needs an extra lavalier source. Equipped with an internal
timecode clock, both units can be synced up in editing.

As a wireless microphone system, the user will be able to run them for around 12 hours. When used as dedicated audio recorders you will be able to use them for more than 20 hours. The Deity Connect Timecode Kit is perfect for the videographer who may need a wireless system for a sit-down interview one day but could utilize having dual recorders for live events like weddings.

Key Features:

  • Works as a single channel wireless system.
  • Can also be used as a pocket recorder or timecode box.

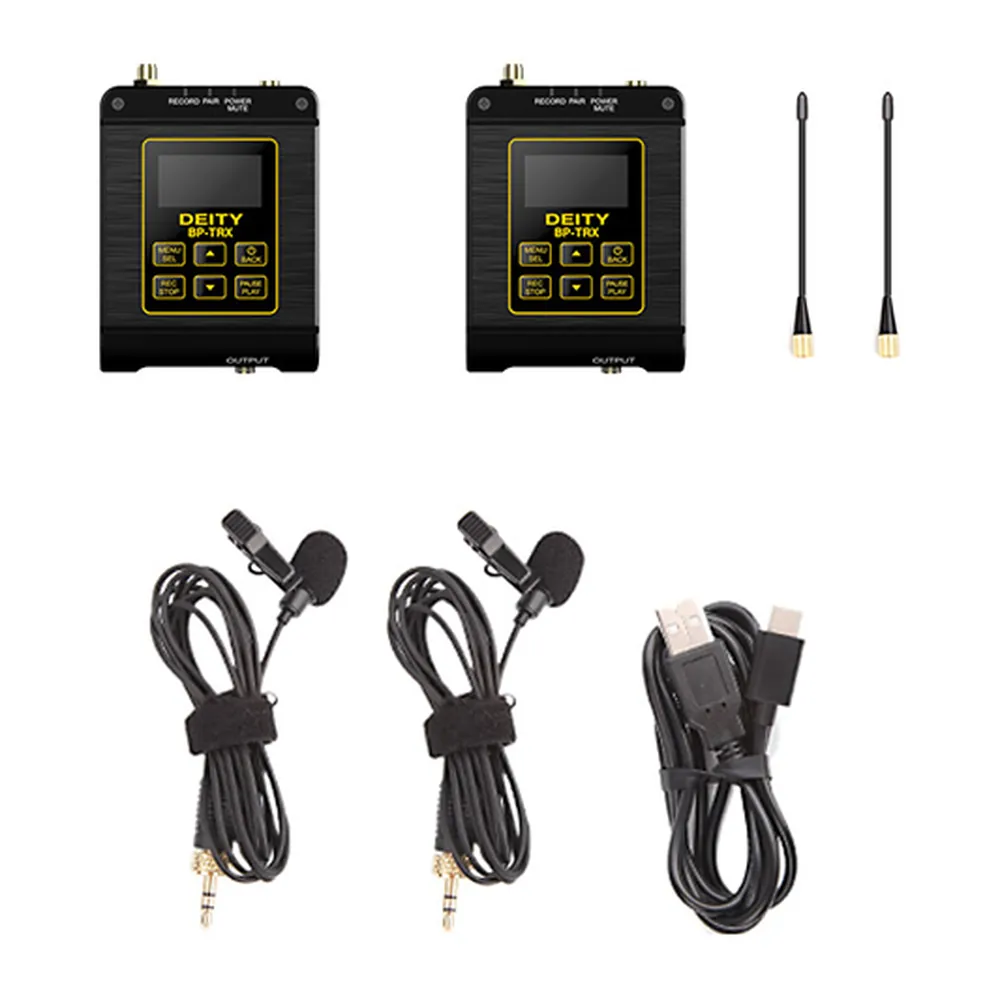

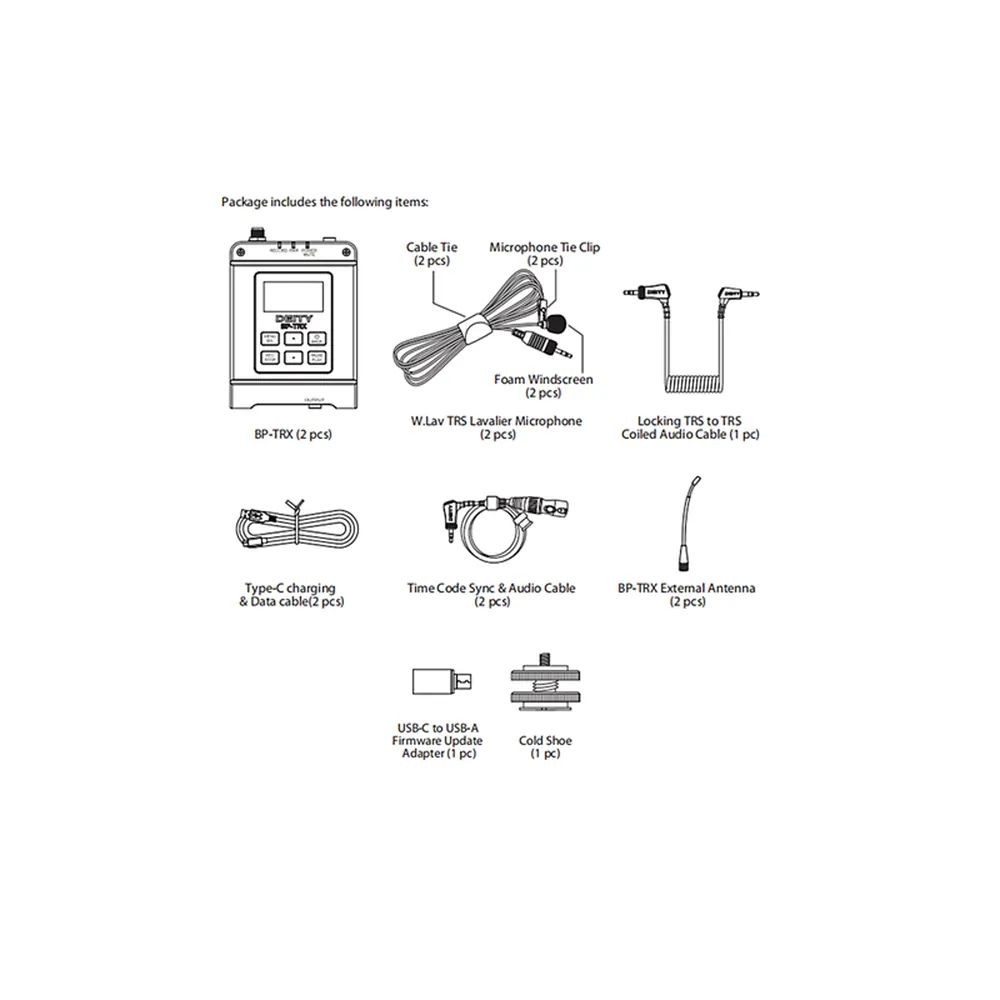

  • Comes with two lavs.
  • Comes with a Timecode sync cable.
  • 12Hrs TX and RX Mode
  • 21Hrs REC Only Mode
  • +25Hrs TC Box Mode
Transmission Type 2.4GHz
Modulation Type Proprietary Protocol
RF Protection Encrypted RF Signal
Frequency Type Advanced Adaptive Frequency Hopping
RF Output Power 10mw, 25mW, 50mW, 100mW, AUTO
Latency 19ms
Range(distance) Up to 100m
Bitrate/Sampling 24bit/48KHz
Frequency Response 20 - 20KHz
Input Connection Locking 3.5mm TRS
Input Type Mono, Stereo
Input Level Mic, Line
Input Mic Power 3.3V
Input Gain -12dB to +36dB
Limiter Guard Rail™️ Analog Limiter
Low Cut Filter Off, 20Hz to 200Hz
Output Connection Locking 3.5mm TRS
Output Type XLR, DSLR, TC Sync
Timecode Accuracy ±0.2ppm
Timecode Type SMTPE
Timecode Frame-Rates 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D
Antenna Inputs Internal & External SMA
Recording BWF .wav file
Card Type Micro SD
Micro SD Max Size Up to 128Gb
USB update exFat/Fat16/Fat32
Battery Type Lithium-Ion Rechargeable Battery
Battery Capacity 2800mAh
Battery Working Time ~12Hrs@100mW RF Output
Battery Life
  • 12Hrs TX Mode
  • 12Hrs RX Mode
  • 21Hrs REC Only Mode
  • +25Hrs TC Box Mode
Battery Charger USB Type-C Charging Cable
Display Type 1.3" OLED Display
Dimensions 83.75x63.5x18.5mm
Weight 160g
Temperature Range -10℃ to +45℃
