Film Devices Rack-N-Bag for Aaton Cantar Mini – 2 Tier

Description

Film Devices Rack-N-Bag for Aaton Cantar Mini – 2 Tier

Rack-N-Bag for Aaton Cantar Mini – 2 Tier dimensions:

• Internal Frame – 11.81″ x 11.81″ x 5.9” / 300 mm x 300 mm x 150 mm
• Full Frame Height – 160 mm
• Combined Shelf Height – 144 mm

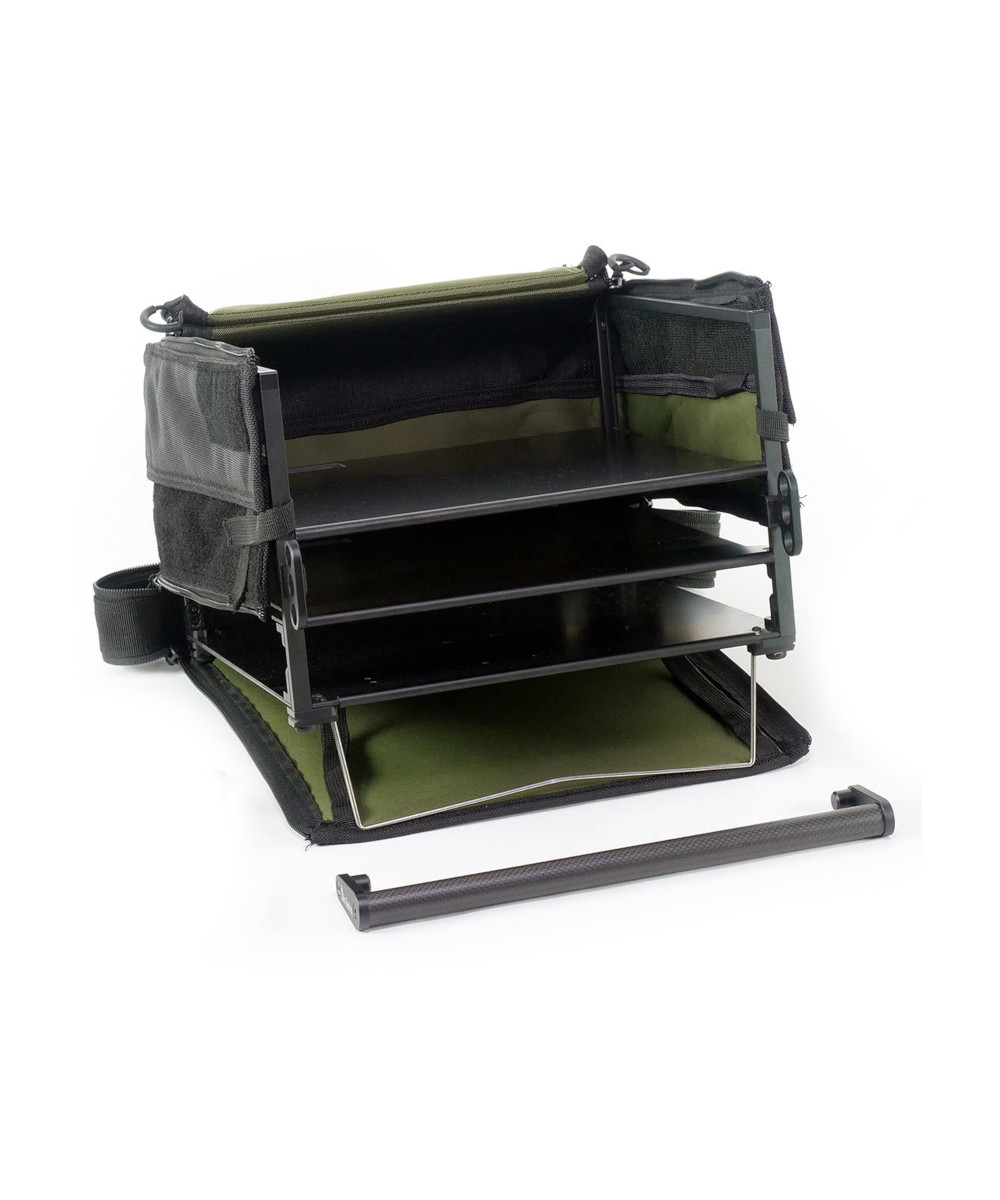

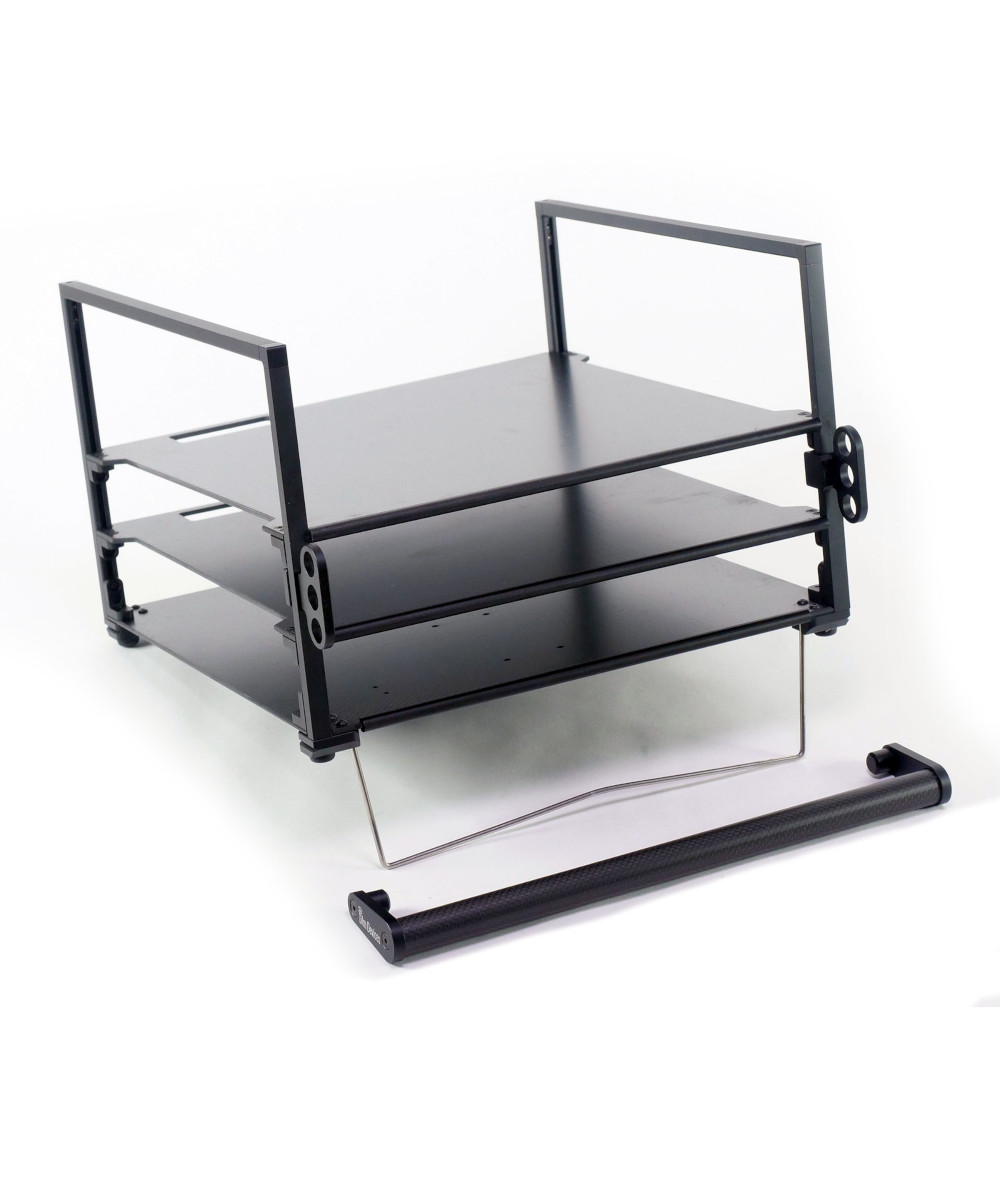

Film Devices patent pending Rack-N-Bag® 2 tier for the Aaton Cantar Mini is a ground breaking design for this model mixer/recorder. Up until now there has not been a practical location sound bag adapted to the unique design of the Cantar Mini.The kit consists of 6 included components: a ballistic nylon outer shell with a detachable pouch, a rigid carbon fiber & aluminum frame, carbon fiber handle, shoulder strap, a built-in kickstand, and a clear front vinyl cover.

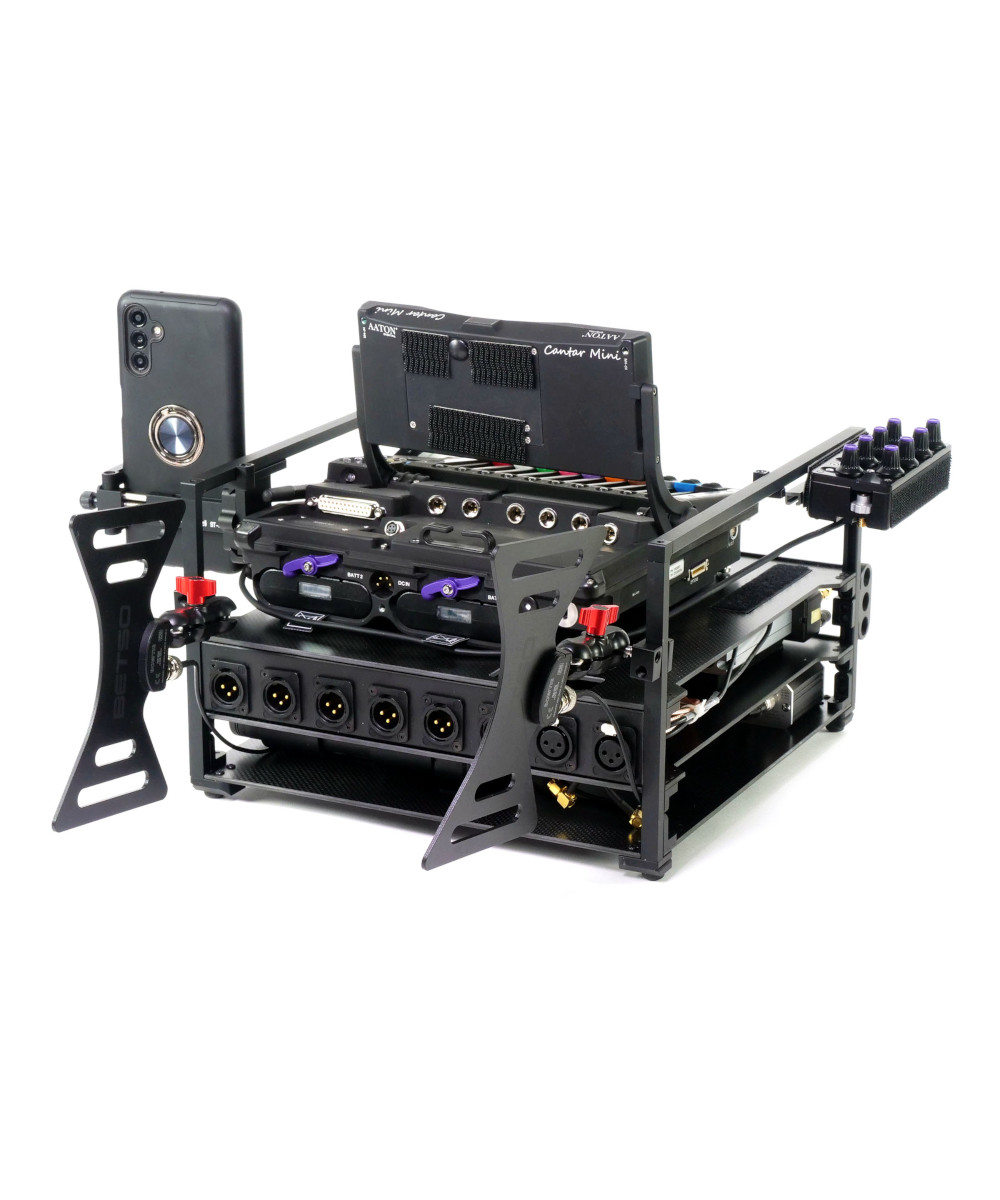

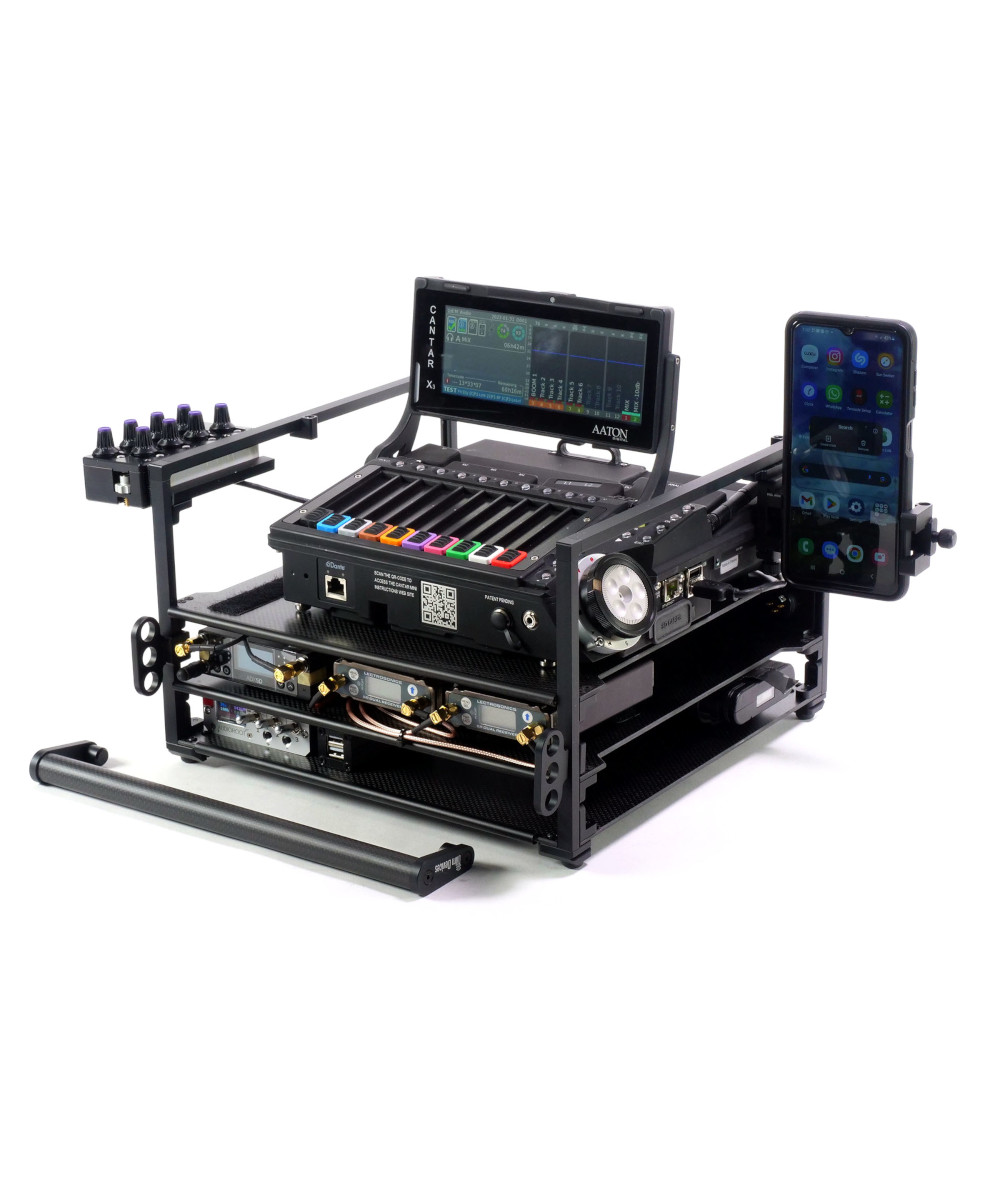

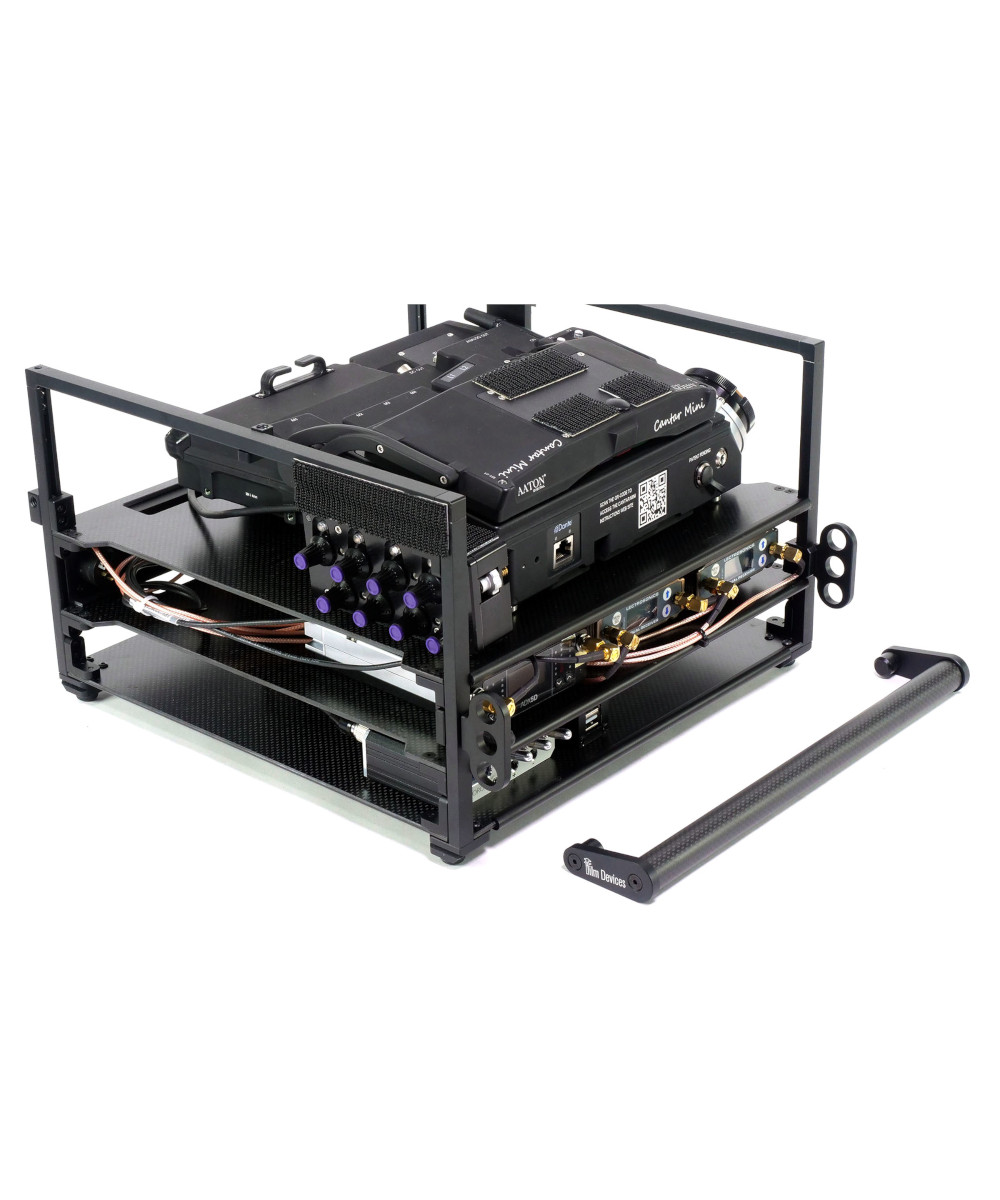

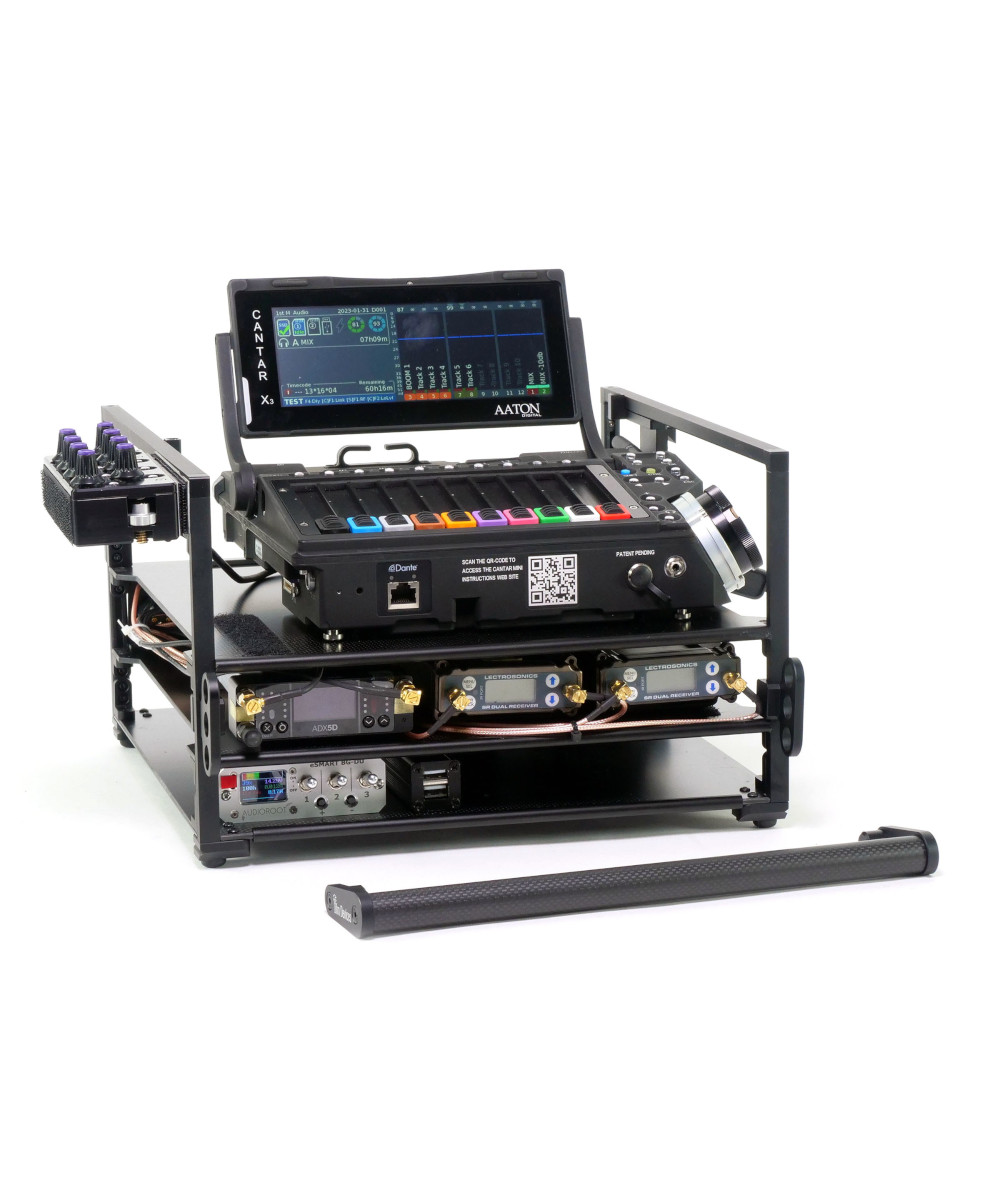

With the outer shell on, it acts like an ordinary sound bag which can be attached to the shoulder strap or optional harness or handheld with the carbon fiber handle. When the outer shell is removed, it converts to a desk console with a kickstand to prop it up. Every device is in an accessible, secure location and all connections are easy to reach. The top tier section tilts at an angle for front control wireless transmitters and receivers. The Rack-N-Bag can even be harness mounted without the outer nylon shell allowing full access to all connections and a reduction in weight.

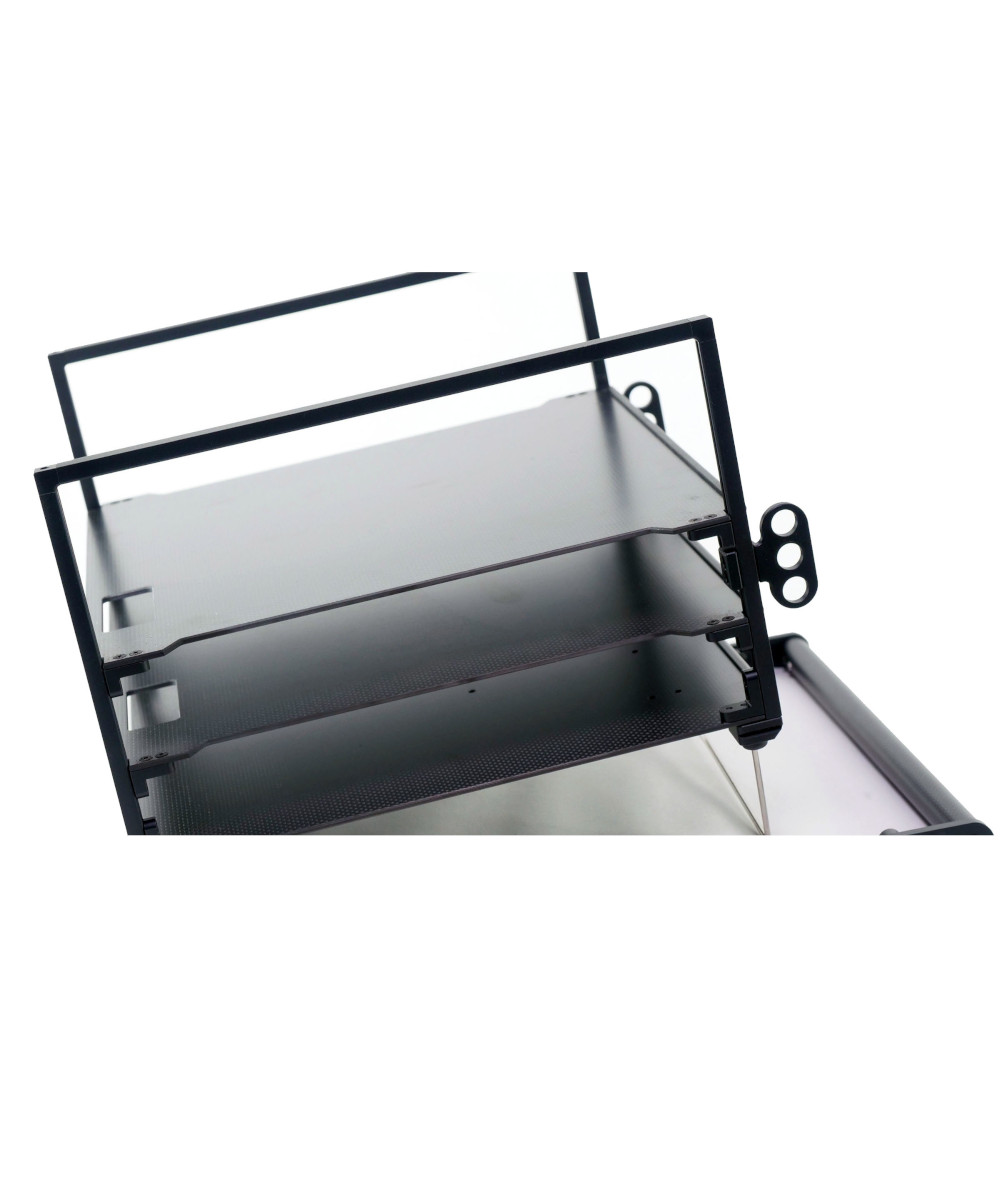

The tier heights are field adjustable. Optional 1/4″x20 threaded blocks can be added anywhere on the C-channel frame. An optional Betso Antenna mounting kit is also available. The antenna fold flat at the rear of the unit for storage within the nylon shell.  The frame is made of aircraft grade aluminum extruded “C” channel and the tiers are carbon fiber. Devices can be attached anywhere on the frame.

The Rack-N-Bag for the Cantar Mini is available in 2 and 3 tier models.  As your equipment changes, the Rack-N-Bag can be reconfigured to match.

The Rack-N-Bag for Cantar Mini – 2 Tier includes:

• 1 – Carbon Fiber & Aluminum Frame

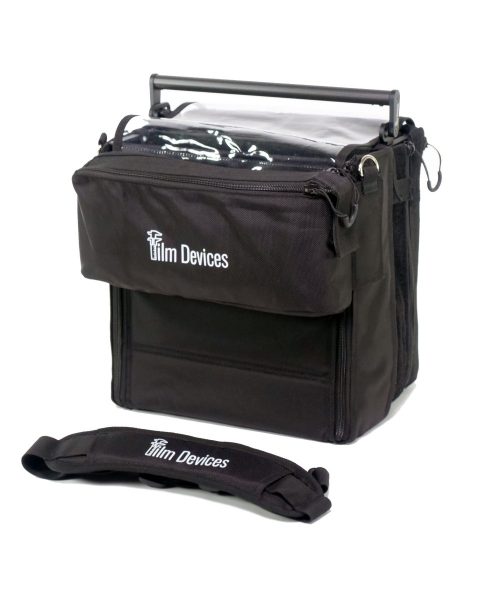

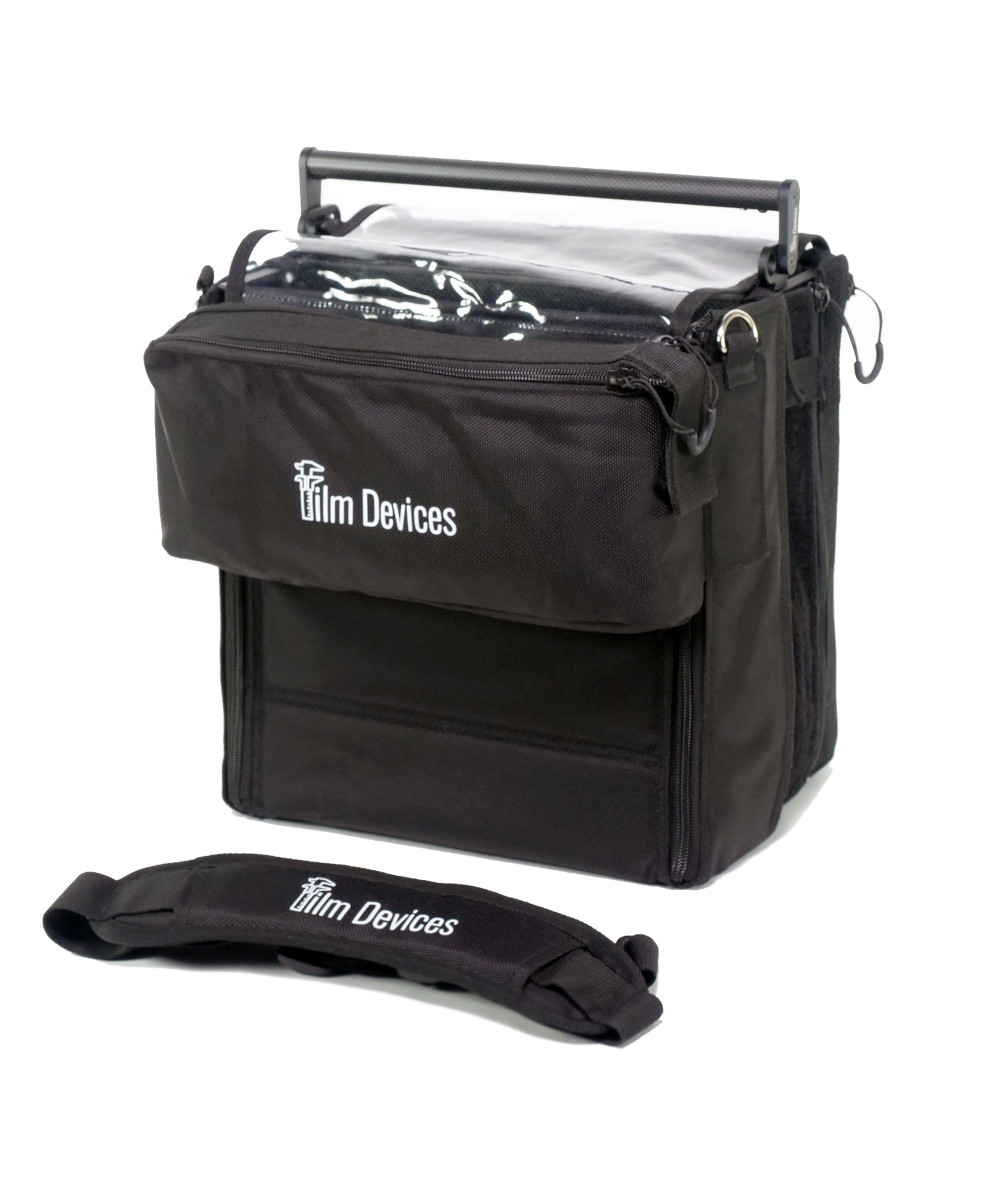

• 1 – Ballistic Nylon Outer Shell with Removable Pouch
• 1 – Carbon Fiber Handle
• 1 – Shoulder Strap

Available Options:

• Swing Out Phone Holder
• Wing Kit for Additional Wireless Devices
• Power Distro with Sled
• Docking Bracket Kit allows Secure Fastening to Sound Carts
• USB Power Receptacle
• Harness

Manufacturer Part Number: RNB-V-103-ACM-2

Specifications

Weight:

• Complete: 2.06kg / 4.55lbs
• Rack Only: 1.20kg / 2.30lbs
