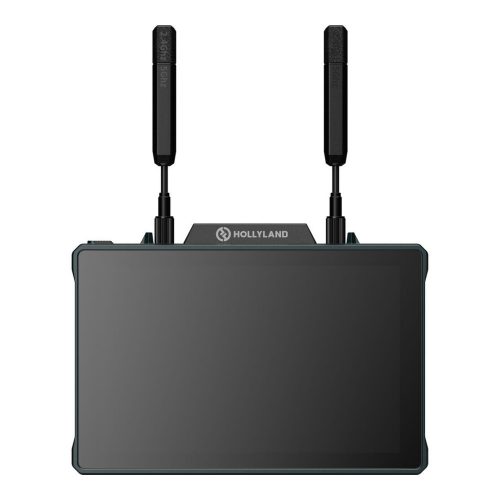

Hollyland Pyro 7 Wireless Monitor

From: 549.00 USD

Hollyland Pyro 7 Wireless Monitor — 7-inch wireless transceiver/monitor that integrates the functionalities of TX, RX, and monitor, all in one.

Clear
SKU: HOLPYRO7 Categories: , Tags: ,
Share on:
Share on google Share on pinterest Share on mail

Description

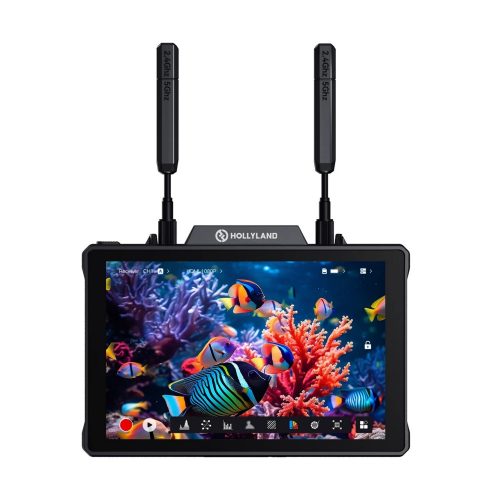

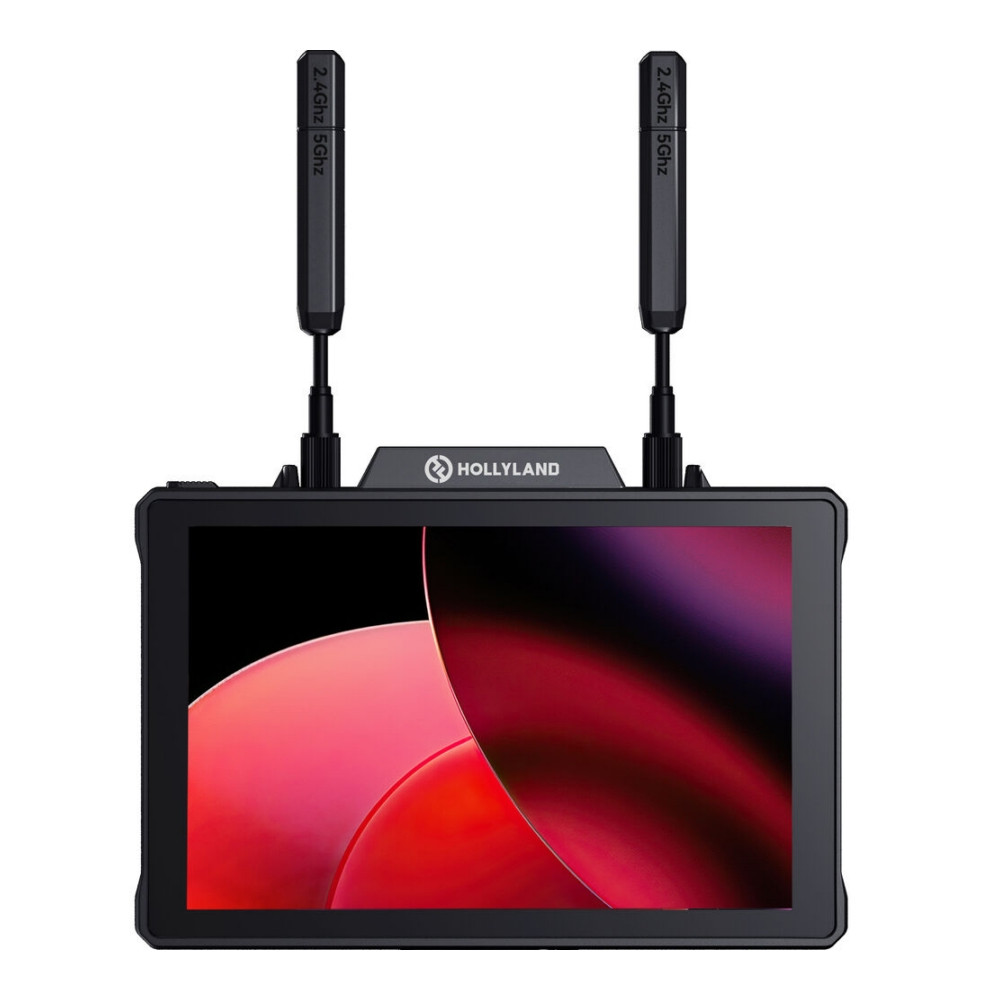

Hollyland Pyro 7 Wireless Monitor

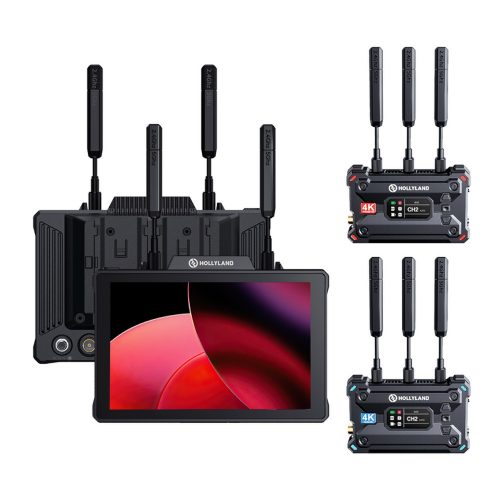

Hollyland Pyro 7 Wireless Monitor — 7-inch wireless transceiver/monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

The Pyro 7 allows for extended MP4 video recording of up to 40 minutes in a single session using an external standard SD card. Includes option for applying LUT during video export. Furthermore, Pyro 7 enables efficient export and organization of available videos into specific folders, catering to your needs for streamlined editing workflow.

Also, the Pyro 7 supports importing external devices or taking on-set screenshots, overlaying them with the current recording screen for scene restoration or replication purposes.

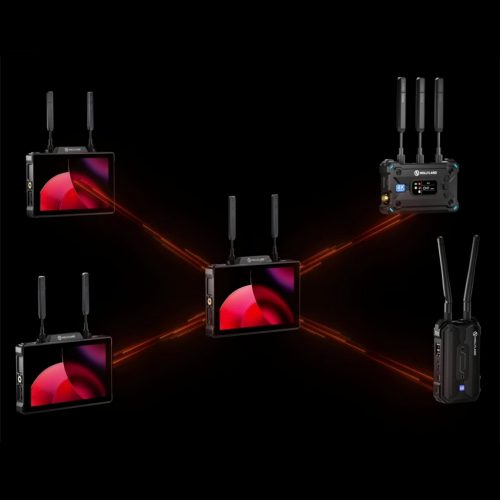

With Broadcast mode activate, the transmitter can transmit signals to a max of four receivers. With Broadcast mode deactivated, the Pyro 7 can transmit signals to at most two receivers and two mobile devices. Please note: Connection to the monitoring app may affect the transmission range.

The Pyro 7 has dual mode operation to fulfill a variety of needs:

Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.

HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).

Pyro 7 Features

  • 1TX & 4RX: Offers more flexibility when additional monitoring needs emerge on set.
  • 1300ft (400m) & 0.06s Latency: Ultra-long range wireless transmission capability.
  • 2.4 GHz & 5 GHz Dual Band: Provides better signal transmission performance and efficiency.
  • Auto Frequency Hopping: Guarantees reliable and uninterrupted wireless video transmission.
  • TX, RX, and Monitor – All in One: One Device to Meet Your Diverse Needs
  • Dual-View Quick Monitoring Switch: Conveniently switch to the desired view.
  • 7-Inch & 1200 nits: 7-inch, better monitoring experience.
 1200 nits; clear and visible even in outdoor or strong lighting conditions.
  • Revolutionary Operating System: Featuring precise image analysis, SDI & HDMI loopout, & RTMP streaming

Pyro 7 in the Box

  • Wireless Transceiving Monitor(s)
  • Paddle Antennas (2.4 GHz & 5 GHz)
  • Secure Digital Memory Card(s) (32G)
  • D-Tap to Locking DC Power Adapter Cable(s)
  • USB-C OTG Adapter
  • Documentation (including warranty card)

Specifications

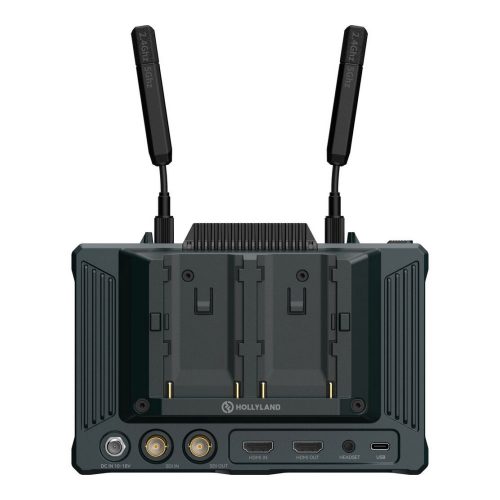

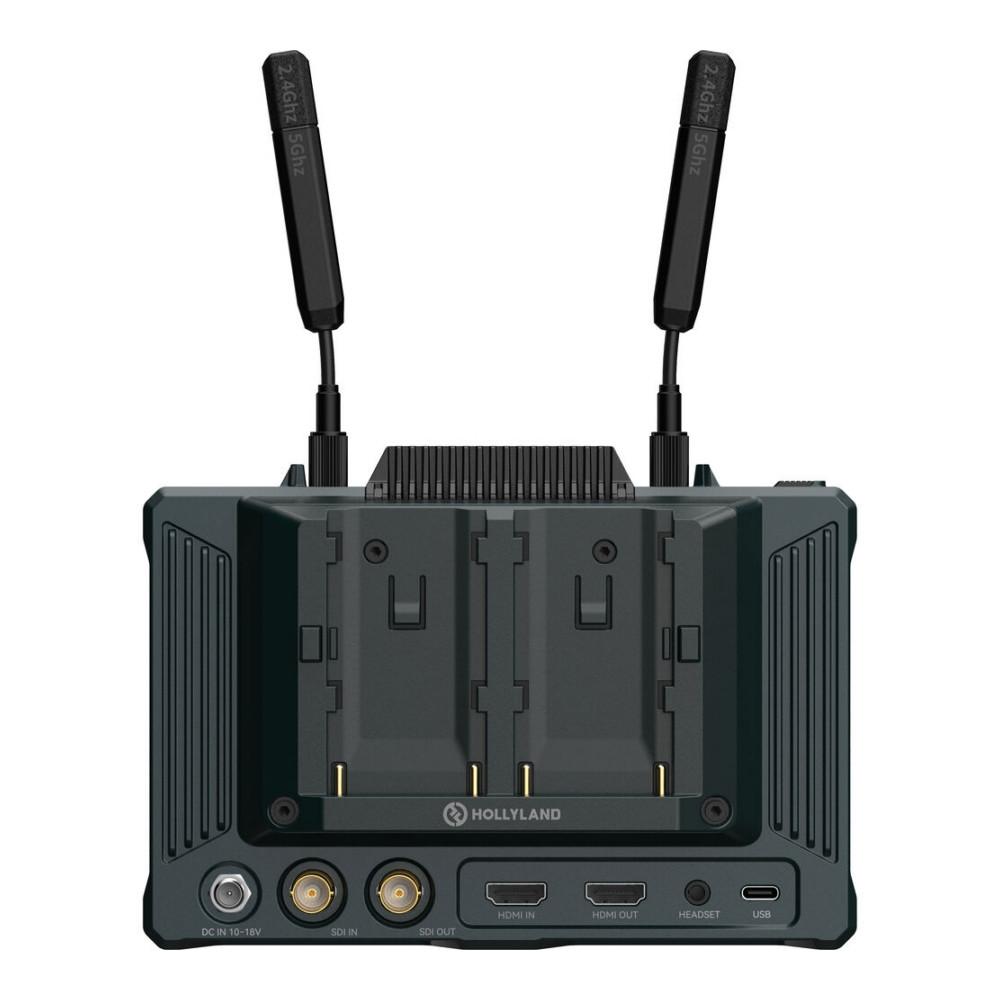

Input Port HDMI 1.4b + 3G SDI
Output Port HDMI 1.4b + 3G SDI
HDMI 1.4b + 3G SDI RP-SMA Male*2
Power Input DC Input (2.0mm core socket)
Headphone Jack 3.5mm

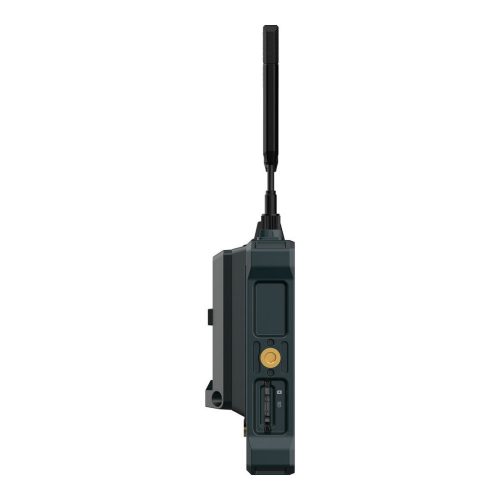

Upgrade Port USB-C (USB 2.0 OTG) SD Card Slot
Screen Size 7″ Touchscreen
Screen Resolution 1920 × 1200 pixels
Pixel Density 323 PPI
Aspect Ratio 16 to 9
Screen Brightness 1200 nits
Contrast Ratio 1000 to 1
Power Input Voltage 10 – 18V/2.5A DC Input (nominal 12V)
Power Consumption < 22W
Net Weight 545g (19.2oz) with battery plate included and external antennas excluded
Dimensions (L × W × H) 180 × 127 × 31.8mm (7.1″ × 5″ × 1.25″) with battery plate and external antennas excluded
Operating Frequency 5.1 – 5.8 GHz; 2.412 – 2.484 GHz
Transmit Power ≤ 23 dBm
Receiver Sensitivity -80 dBm
Display Latency < 50ms
Transmission Latency ≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
LOS Range •1,300ft (400m)* (Connection to the monitoring app may affect the range); •650ft (200m)* (in Broadcast mode)
Bandwidth 20 MHz; 40 MHz (in Broadcast mode)
Audio Format HDMI 1.4b 8-Channel
Operating Temperature – 10℃ – 45℃
Storage Temperature – 40℃ – 60℃
HDMI Input 720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60 3840*2160 23.98/24/25/29.97/30
HDMI Loopout
 720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60 3840*2160 23.98/24/25/29.97/30
SDI Loopout 720p50/60 1080i50/60 1080p24/25/30 1080p 50/60 1920*1080 24/25/30
HDMI/SDI Output 720p50/60 1080i50/60 1080p24/25/30 1080p 50/60 1920*1080 24/25/30

Note: Due to differences in various countries and regions, there may be variations in the operating frequency bands and wireless transmit power of the product. For details, please refer to local laws and regulations.
