Hollyland Solidcom C1 Pro Roaming Hub

From: 5,999.00 USD

Hollyland Solidcom C1 Pro Roaming Hub — Allows up to 20 headsets and 6 groups, seamless roaming, an extensive range of 1,600ft (500m), and backward compatibility.

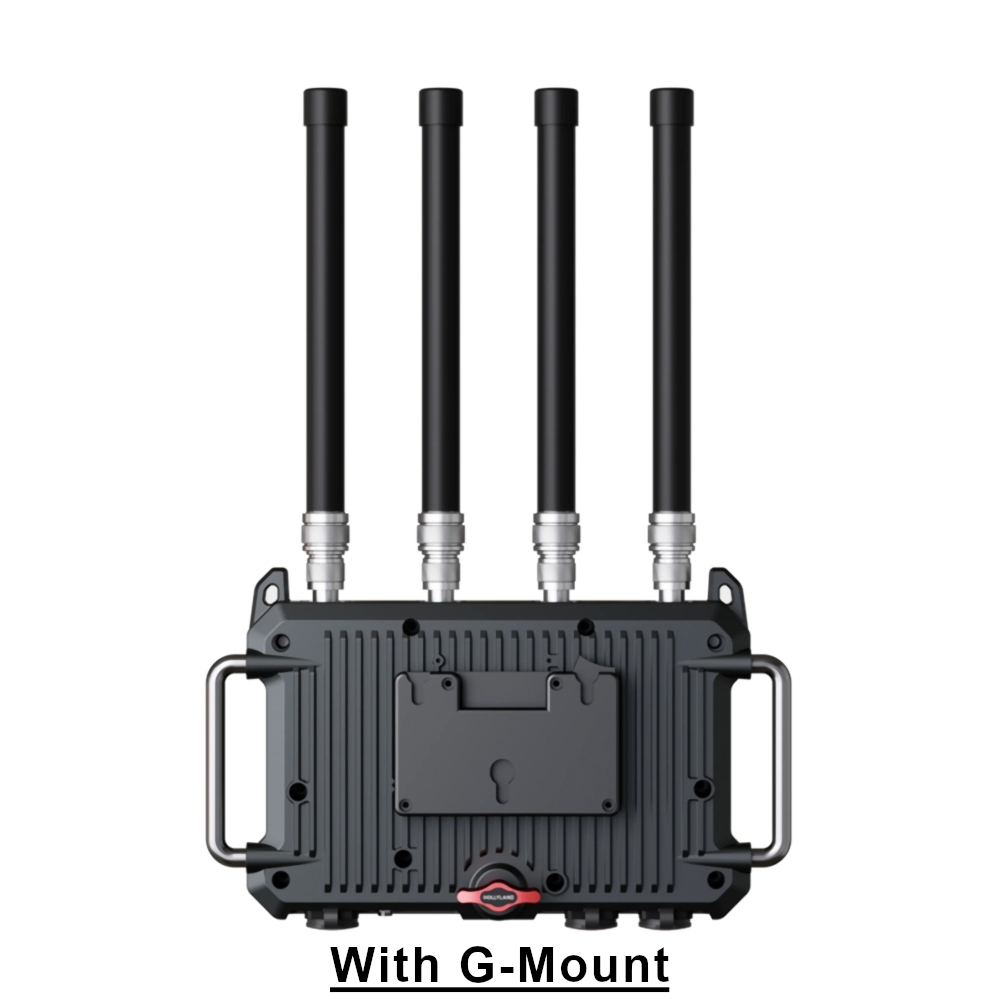

V-Mount and G-Mount variants for external battery compatibility. Available as the Roaming Rub by itself, or as kit with 10 or 20 C1 Pro single-ear noise-cancelling headsets.

Clear
SKU: HOLSCC1PRORH Category: Tags: ,

Description

Hollyland Solidcom C1 Pro Roaming Hub

Hollyland Solidcom C1 Pro Roaming Hub — Allows up to 20 headsets and 6 groups, seamless roaming, an extensive range of 1,600ft (500m), and backward compatibility. Designed for film and television for productions, this innovative solution can empower professionals across all styles of communication settings and take their communication experience to new heights.

V-Mount and G-Mount variants for external battery compatibility. Available as the Roaming Rub by itself, or as kit with 10 or 20 C1 Pro single-ear noise-cancelling headsets.

Features

  • Full-duplex Communication
  • 500m Transmission Range
  • High-quality Audio
  • Compatible with Solidcom C1 and C1 Pro headsets
  • Hub Cascading and Expansion Interfaces
  • Roaming Functionality
  • Multiple Power Supply Options
  • UAC Function via USB
  • Upgrade Options
  • Flexible Configuration

Product Overview

20-User Effortless Communication
The C1 Pro Roaming Rub supports to 20 headsets without the need for cascading, thus ensuring easy set-up and reducing cable clutter. With this game-changer, the communication needs of many different applications can be easily met.

Can also be configured in a dual-hub cascade connection. Use a standard CAT5e or above cable to cascade the two hubs, with a cable length of 300-500ft.

Seamless Roaming
Seamless roaming capability guarantees effective communication behind walls or complex structures, where dropouts happen most frequently. Ideal for production team members who need to move freely and wirelessly from one area to another. No matter where your work takes you, enjoy consistent communication.

Effective Talking with 6 Groups
Support for up to 6 groups, making this device highly useful for professional scenarios that call for communication among multiple function groups, such as in productions coordinating between the sound department, camera crew, lighting, etc. You can also assign roles and customize the number for each type of role for better coordination.

Long Range Transmission of 1,600ft (500m)

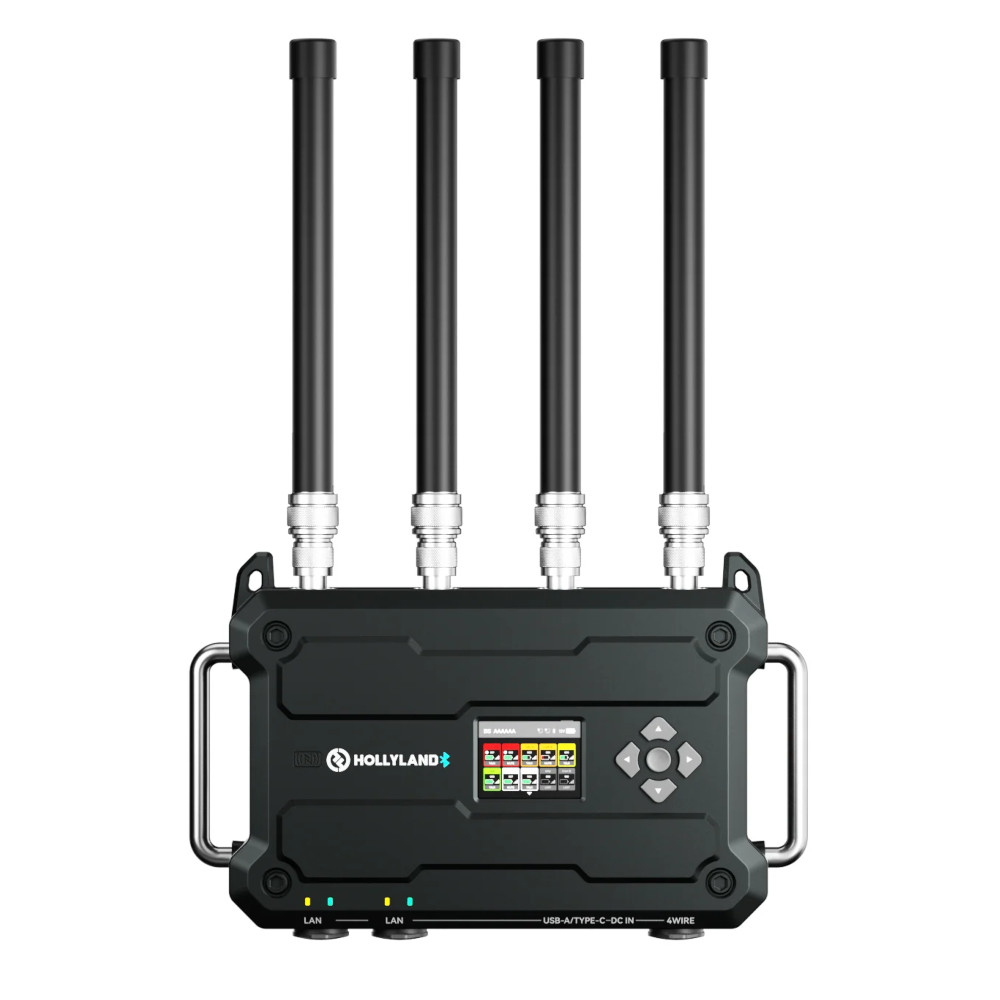

With 4 robust omnidirectional fiberglass antennas maintaining stability, the C1 Pro Roaming Hub boasts a LOS (line of sight) range of up to 1,600ft (500m), capable of use in large venues or open spaces, giving the ability to immerse yourself in reliable and stable communication.

Enhanced Mounting Flexibility
Features industry-standard 5/8” and 3/8” mounting holes, which directly enable the attachment of a variety of accessories, such as tripods, light stands, etc., allowing hassle-free onsite installation.

Easy Off-Site Communication
Supports USB Audio Class (UAC), facilitating real-time online communication with off-site personnel. Through a direct USB-C connection to your computer, you can start online conversations without the necessity of sound capture cards.

App Control
With the built-in Bluetooth module, theC1 Pro Roaming Hub provides users with easy access to modify settings directly from their mobile devices via a specially developed app. Bid farewell to long walks to the hub just for parameter adjustments.

Specifications

LOS Range 1,600ft (500m)
Operating Frequency 1904-1919 MHz: China
1880-1900 MHz: Europe, South Africa, much of Asia
Hong Kong SAR, Australia, and New Zealand (10 channels) 1880-1895 MHz: Taiwan (8 channels)
1893- 1906 MHz: Japan (J-DECT)
1910-1920 MHz:Brazil (10 channels)
1910-1930 MHz: Much of Latin America excluding Brazil
1920-1930 MHz:USA & Canada
Transmit Power 21dB
Bandwidth 1.728MH
Modulation Mode GFS
Frequency Response 100 Hz – 7 kHz (+3dB) @ 1 kHz
Receiver Sensitivity -90dB
SNR > 55dB
Antenna Gain 4 dBi (all directions)
DC Voltage Range 7-30V < 1A @ 12V
V/G Mount Battery Voltage Range 11-30V < 1A @ 12V
Power Consumption < 1A @ 12V
Dimensions 302mm × 181.52mm × 63.6mm
Weight 1797.5g (63.4oz)
Temperature Range -10 – 45 C (working) -20 – 60C (storage)

What's Included

Solidcom Roaming Hub (Standalone)

  • Solidcom Roaming Hub x1
  • Solidcom Roaming Hub Antenna x4
  • V-Mount or G-Mount Battery Plate x1 (on the hub)
  • User Manual x1
  • Warranty Card x1
  • Hardshell Suitcase x1

Solidcom C1 Pro Roaming Hub 10S

  • Solidcom Roaming Hub Base x1
  • Solidcom Roaming Hub Antenna x4
  • V-Mount or G-Mount Battery Plate x1 (on the hub)
  • Solidcom C1 Pro Wireless Single-Ear Remote Headset x10
  • Solidcom C1 Pro Battery x20
  • Solidcom C1 Pro 8-Slot Battery Charging Case x1
  • Solidcom C1 Pro Over-Ear Earmuff x10
  • Solidcom C1 Pro On-Ear Earmuff x10
  • Solidcom Headset Ear Pad x10
  • Solidcom C1 Pro Mic Cushion x10
  • Solidcom Headset Sticker Sheet x1
  • 12V/2A DC2.1 Power Adapter x1
  • USB TypeC Cable x1
  • User Manual x1
  • Warranty Card x1
  • Hardshell Suitcase x1

Solidcom C1 Pro Roaming Hub 20S

  • Solidcom Roaming Hub Base x1
  • Solidcom Roaming Hub Antenna x4
  • V-Mount or G-Mount Battery Plate x1 (on the hub)
  • Solidcom C1 Pro Wireless Single-Ear Remote Headset x20
  • Solidcom C1 Pro Battery x40
  • Solidcom C1 Pro 8-Slot Battery Charging Case x3
  • Solidcom C1 Pro Over-Ear Earmuff x20
  • Solidcom C1 Pro On-Ear Earmuff x20
  • Solidcom Headset Ear Pad x20
  • Solidcom C1 Pro Mic Cushion x20
  • Solidcom Headset Sticker Sheet x1
  • 12V/2A DC2.1 Power Adapter x3
  • USB TypeC Cable x1
  • User Manual x1
  • Warranty Card x1
  • Hardshell Suitcase x1
