Description

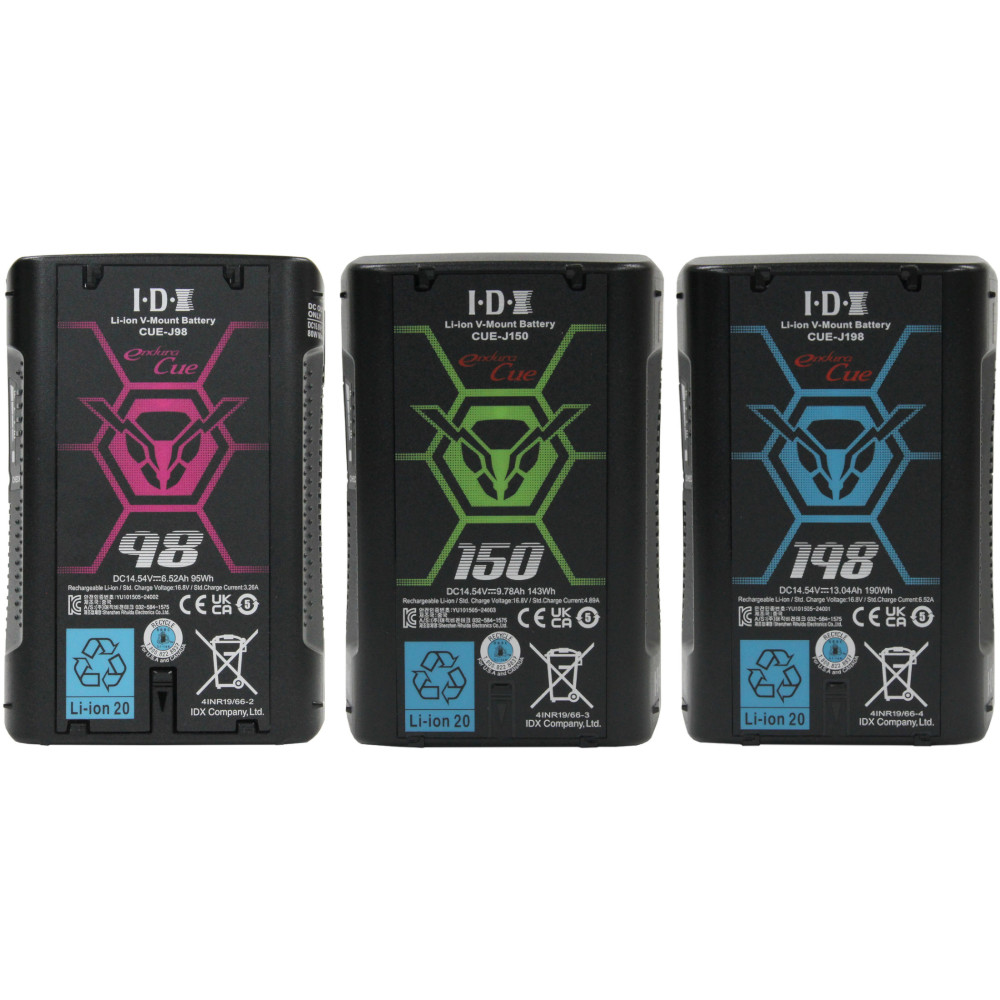

IDX CUE-J V-Mount Batteries
IDX CUE-J V-Mount Batteries — The CUE-J Series is the next generation of IDX’s ever-popular V-Mount batteries. The series consists of the CUE-J98, CUE-J150, and CUE-J198 models. Utilizing the latest lithium-ion cell technology, the CUE-J series has increased capacity while maintaining the same reliability and safety standards as previous CUE series products. The increased CUE-J Series power capacity allows the frequent production user to get more out of its IDX batteries and still meet the IATA flight power restrictions.
Capacity, Size, and Weight
- CUE-J98: 95Wh; 1.38 lbs; 3.82″ × 5.75″ × 1.54″
- CUE-J150: 143Wh; 1.96 lbs; 3.82″ × 5.75″ × 2.32″
- CUE-J198: 190Wh; 2.38 lbs; 3.82″ × 5.75″ × 2.32″
All CUE-J series batteries have (1) D-Tap with 80W max output; over-charge, over-discharge, and over-current protection; and are compatible with all IDX V-Mount battery chargers (including the VL-2X). Features a 4-LED power indicator.
The CUE-J Series of batteries are designed to be an affordable, reliable option for a variety of power needs, such as for audio devices, cameras, portable production monitors, and portable lighting, that require power from a V-Mount plate or D-Tap to XLR cable input.
[Please note: the CUE-J series is not compatible with D-Tap charging.]
Specifications
Ambient Temperature | To charge: 32°F ~ 104°F (50°F ~ 86°F recommended); To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended); To store: -4°F ~ 113°F (less than 1 month) |
Battery Protection | Over-charge, Over-discharge, Over-current |
Capacity | 143Wh (14.54V/ 9.85Ah) |
D-Tap | 80W each |
End Voltage | 11.2V |
Max Discharge Current | 13.9A ‡ |
Max Output Voltage | 16.8V DC |
Nominal Voltage | 14.54V DC |
