INOVATIV Apollo Workstation

Please note that Sound Carts are ineligible for Free Shipping and a varying lift gate fee will apply based on the courier that delivers it and the size of the Sound Cart ordered. Please contact your local Trew Audio location for specific details.

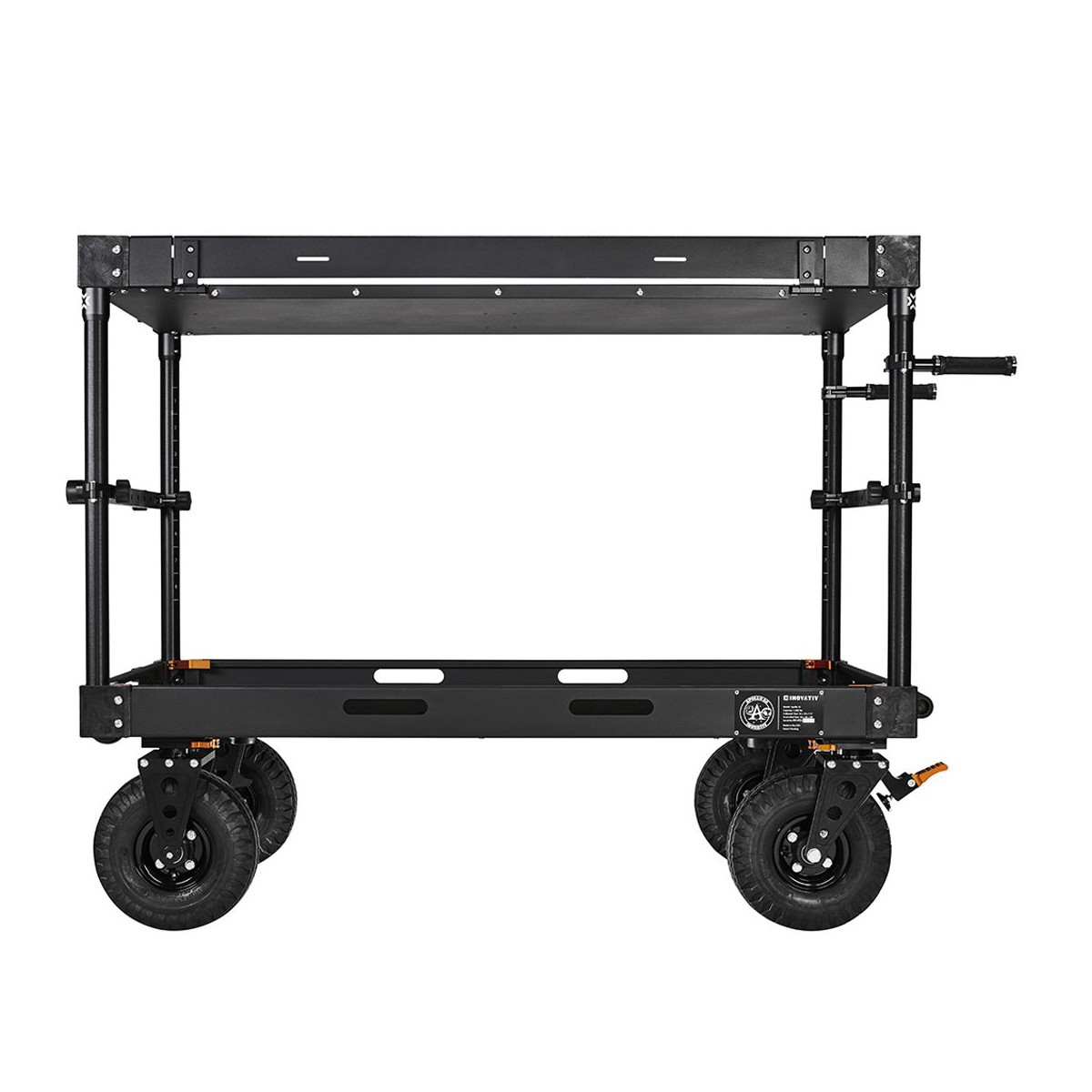

INOVATIV Apollo Sound Cart

INOVATIV Apollo Sound Cart — The most heavy-duty cart design from INOVATIV, the Apollo uses the 10″ removable EVO Wheel System and incorporates a top and bottom shelf that easily assembles without the use of tools. The Apollo is not height adjustable, but has a standard height of 40.5″, providing you a work surface at a comfortable standing height. The shelfs are “hemmed” and compared to our traditional sheet metal shelves, the Apollo’s shelfs have been increased in thickness by 56% to support heavier loads. Additionally, the Apollo’s bottom shelf includes INOVATIV’s first ever internal Main-Frame System, greatly increasing the carts stability and overall payload capacity.

The upright tubes are secured using the Corner Mold Lock-System that doubles as a location to mount Apollo specific accessories directly into the carts upright posts, from the top deck. These four vertical posts are 14% thicker than our standard workstation posts and have been positioned at the corners of the cart. Because of these design changes, the Apollo is the most stable and durable cart INOVATIV has produced to date.

Furthermore, the Apollo’s 4-Sided Top Shelf has a hinged front-panel that quickly transforms your top shelf into a flat working surface. Having a flat working surface, clear of an edge, greatly improves stationary workflows. Simply lift up on the front panel and lock into place with our “bolt-action” latches to keep your items safe and secure while on the move.

And finally, the Apollo uses our Pack Latch System to easily connect the top and bottom shelf’s together when packed, and our integrated Skate Wheels to easily transport the workstation when in case-mode. All of these features are jammed packed into the Apollo’s design, and when packed, the Apollo is a slim 7.5″ thick.

Specifications

Payload Capacity: Apollo 40: 1,200 lb | Apollo 52: 1,200 lb

APOLLO 40

• Product Weight: 102 lb
• Product Weight, Wheels Removed: 85.5 lb
• Wheel Weight (Including Wheel Bags): 16.5 lb
• Packed: 42 In. L x 26 In. W x 7.5 In. H
• Built: 42 In. L x 26 In. W x 40 In. H
• (Fixed Height, Not Adjustable)
• Available Space Between Shelves (Built): 34 In. L x 22 In. W x 26.75 In. H

APOLLO 52

• Product Weight: 115 lb
• Product Weight, Wheels Removed: 98.5 lb
• Wheel Weight (Including Wheel Bags): 16.5 lb
• Packed: 54 In. L x 26 In. W x 7.5 In. H
• Built: 54 In. L x 26 In. W x 40 In. H
• (Fixed Height, Not Adjustable)
• Available Space Between Shelves (Built): 46 In. L x 22 In. W x 26.75 In. H

Length dimensions include Easy Roll Handle

THREADED RAIL PLATE SPECIFICATIONS (EA):

• 10.500 In. L x 2.125 In. H x 0.250 In. W
• (10) 1/4-20 Threaded Holes
• (18) 3/8-16 Threaded Holes

INCLUDED WITH YOUR INOVATIV APOLLO:

Apollo 40

• Fixed Height Hinged X-Top Shelf with (2) Integrated Threaded Rail Plates
• (4) 10In. Removable EVO Wheels (2 Fixed / 2 Swivel with Foot Brakes)
• (1) pair, Overtube Quick Grips
• (2) Overtube Accessory Crossbars
• Transporting Bags for Upright Posts, Wheels, Accessory Crossbars, and Quick Grips

Apollo 52 (ship’s via LTL Freight)

• Fixed Height Hinged X-Top Shelf with (3) Integrated Threaded Rail Plates
• (4) 10In. Removable EVO Wheels (2 Fixed / 2 Swivel with Foot Brakes)
• (1) pair, Overtube Quick Grips
• (2) Overtube Accessory Crossbars
• Transporting Bags for Upright Posts, Wheels, Accessory Crossbars, and Quick Grips
