INOVATIV Deploy Mobile Workstation

INOVATIV Deploy Workstation

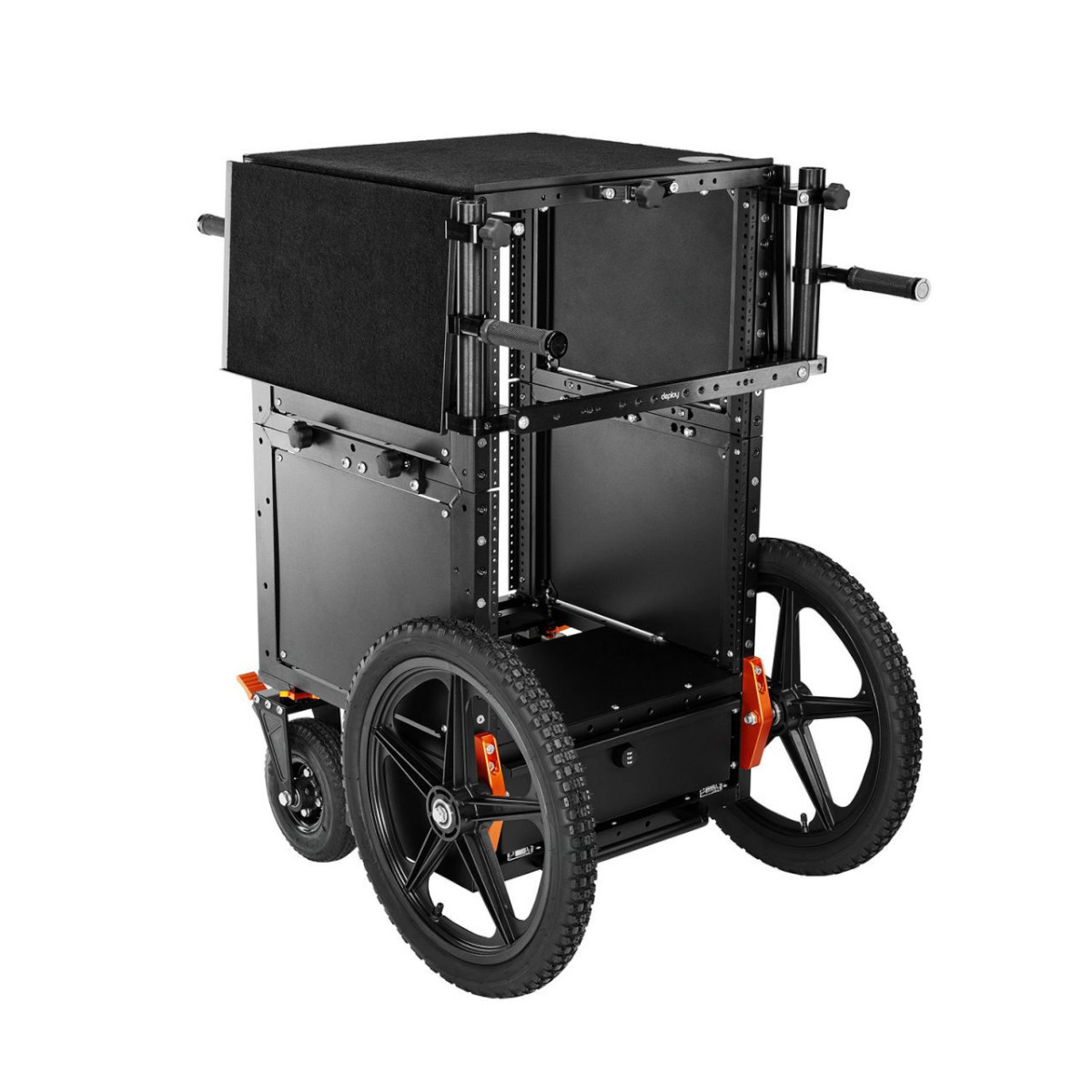

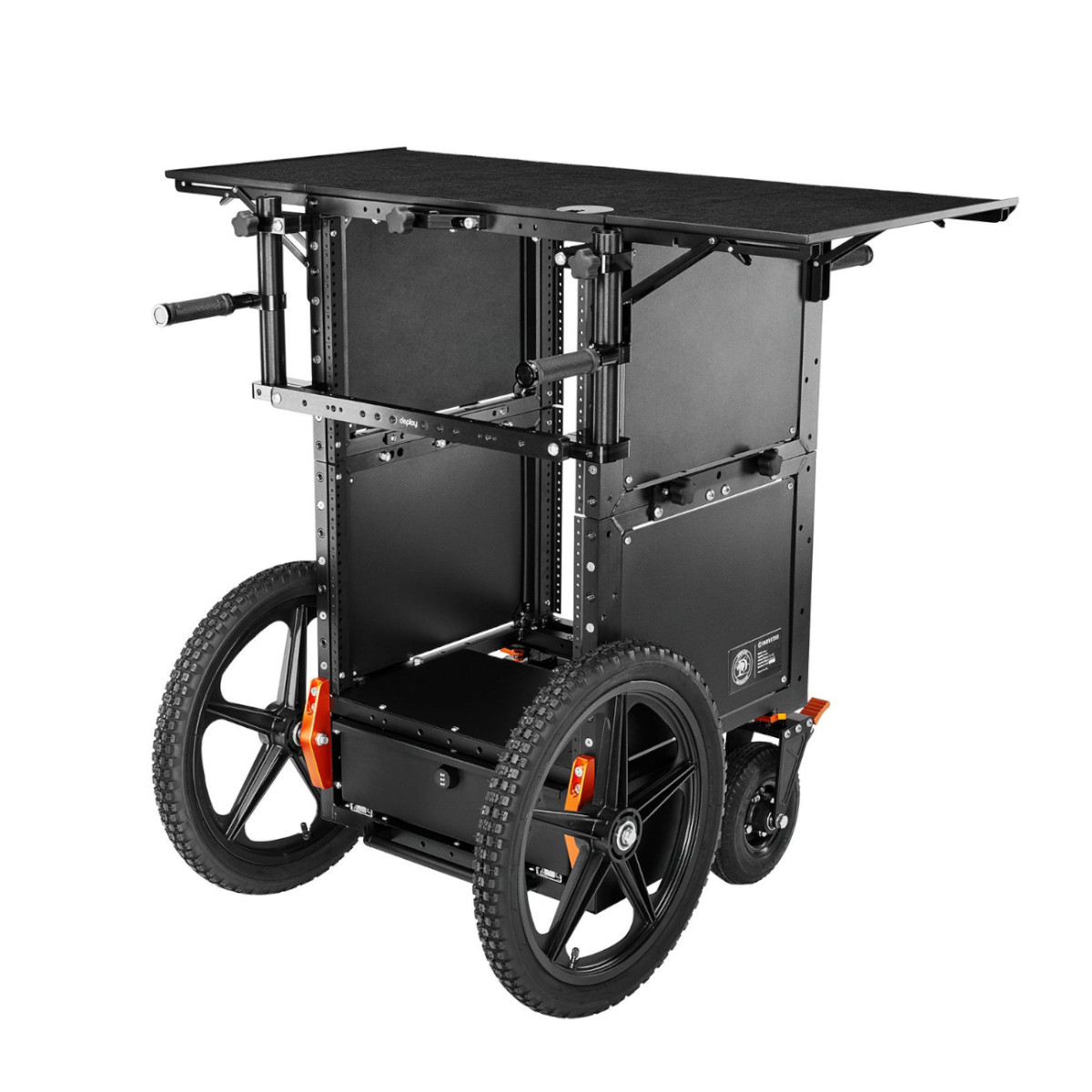

The INOVATIV Deploy is a mobile vertical rackmount workstation with up to 16U of vertical rack-mount space. Ideal for both studio and on-location use, the Deploy is fit for travel with INOVATIV’s EVO Wheel System on the front and 20” traction wheels in the rear. Integrated accessory mounts in several places allow the user to further customize their workstation.

The Deploy (2023) is a mobile vertical rack-mount workstation with 16U of space accessible from both the front and back of the cart. The turnkey configuration allows users to get started from the moment Deploy is unboxed.

Main Features

• 16U of standard 19″ rack space, 21″ depth
• Separate top and bottom half
• Collapsible Side Wings that double surface area when extended
• Frame with integrated (and removable) ⅜”-16 mounting points
• Center Mast Bracket
• Dual Rear Tube Accessory Mounts
• Rear Crossbar with ⅜”-16 and ¼”-20 mounting points
• Screw on Load Handles
• Height adjustable Quick Grips with 360* of rotation
• EVO Wheel System
• 20 In. rear wheels for mobility
• Combo-locking bottom drawer
• Constructed of 5052 and 6061 T6 aluminum, stainless steel hardware throughout, corrosion resistant
• INOVATIV’s 5-year Manufacturer’s Warranty. Limitation Apply.
• Designed, manufactured, and assembled in California, USA

New Frame

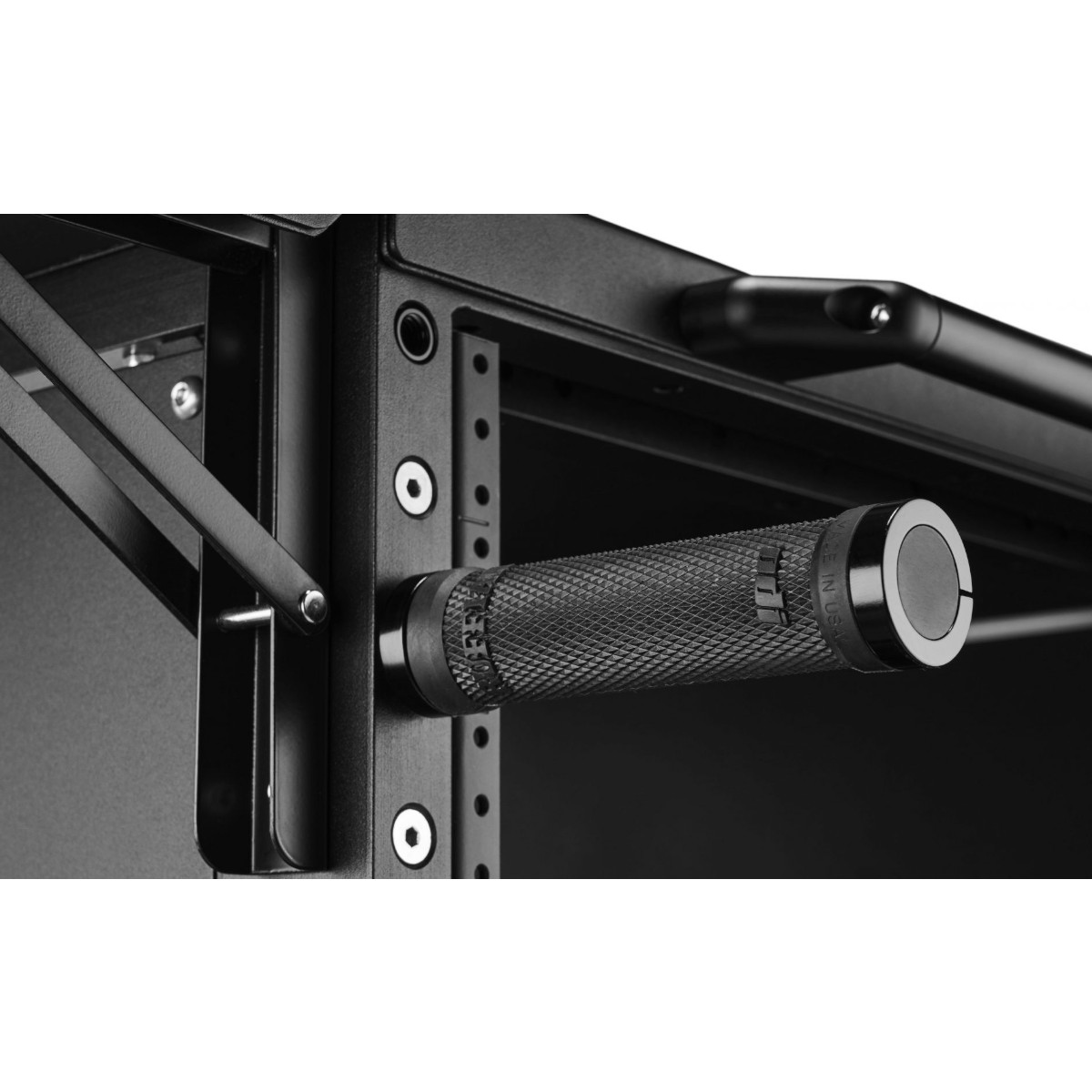

The 2023 Deploy features an entirely new frame with 16 internal (and replaceable) machined bars that provide a total of 38 integrated 3/8″-16 threaded mounting points for accessory mounting, new aluminum Pull Handles for improved comfort, height adjustable Quick Grips with 360° of rotation, Load Handles that can be mounted to any of the frames 38 mounting points, and a locking bottom drawer.

Working Surface

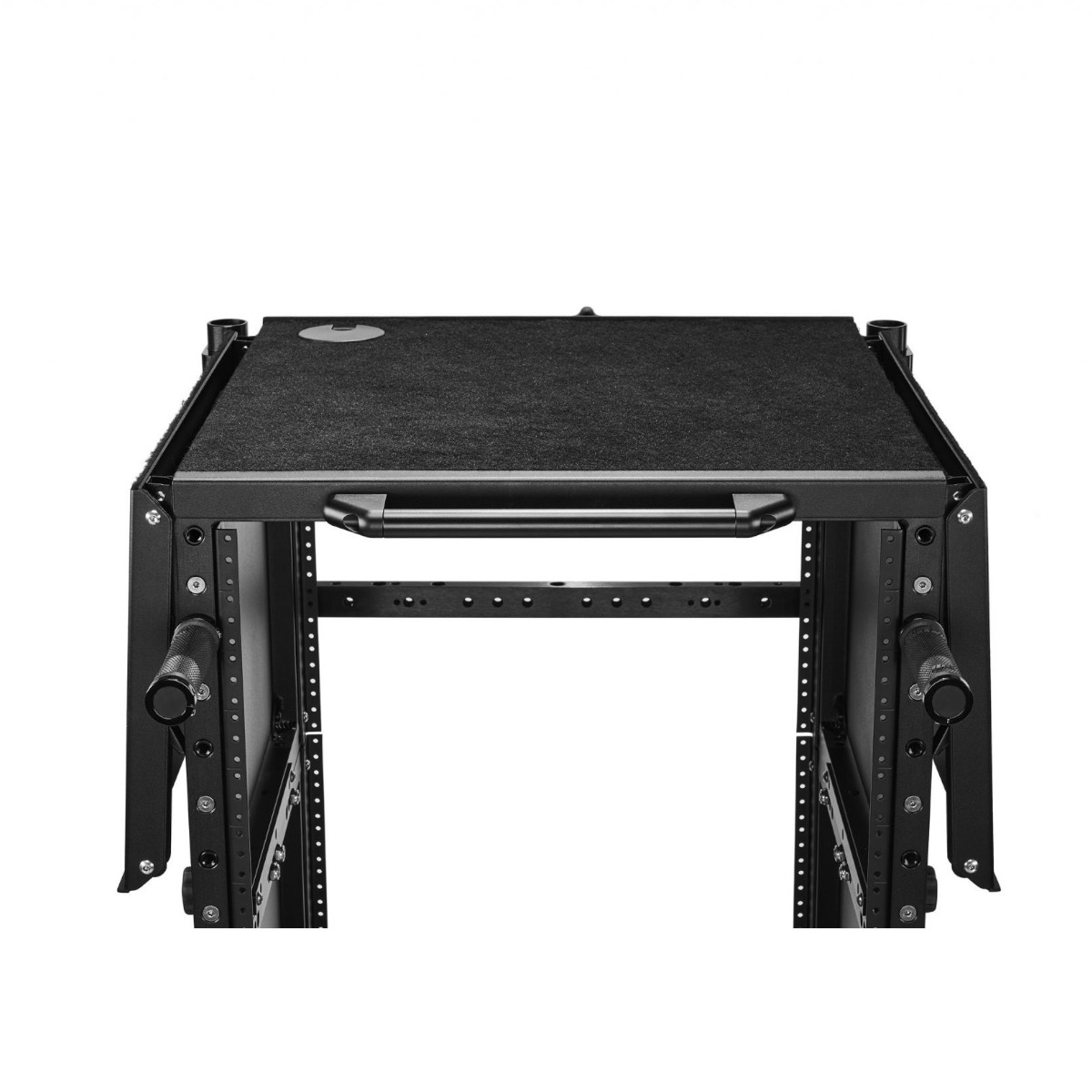

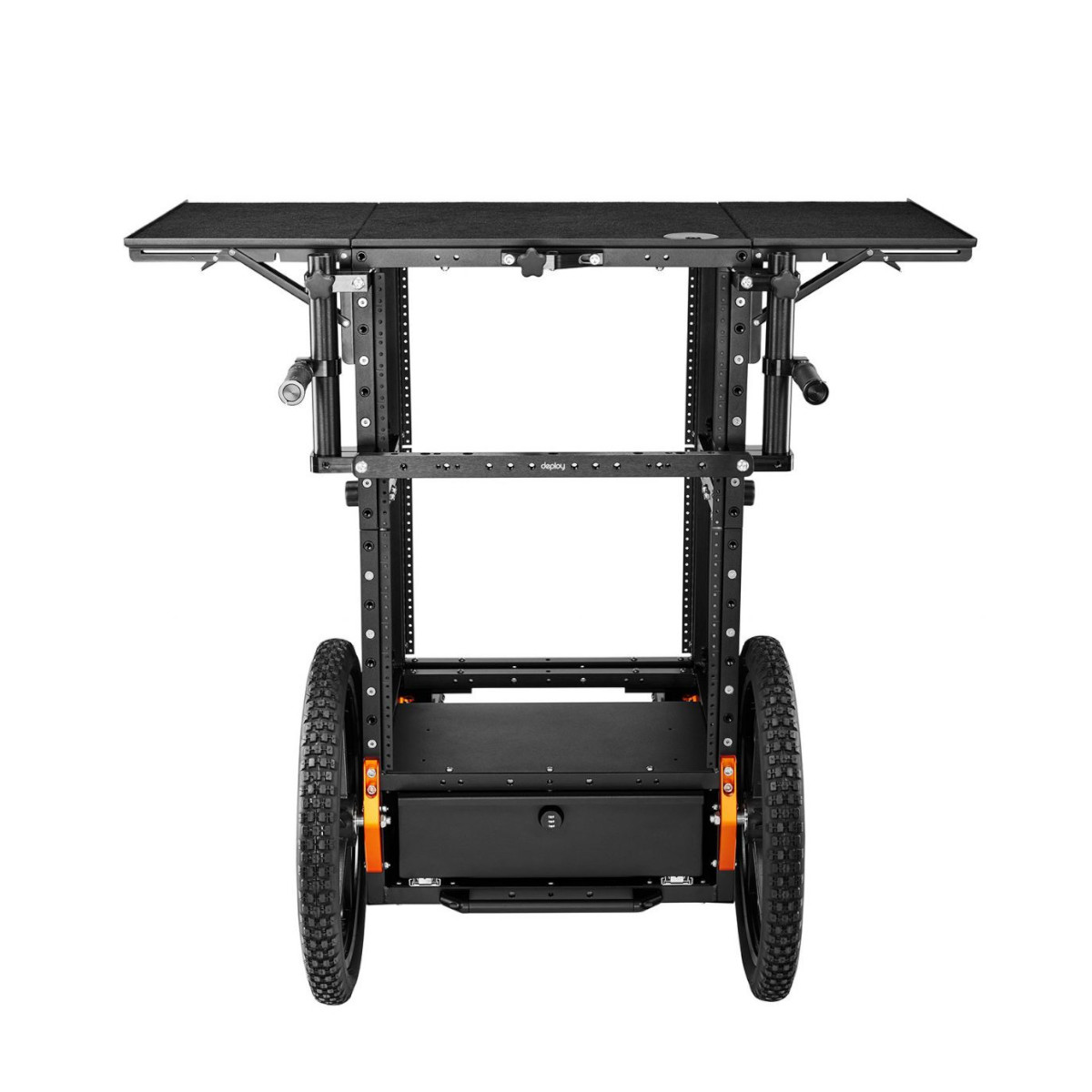

With a tabletop height of 42.5”, the Deploy provides a comfortable station for standing workflows. Total working surface expands from 21.125” to 45.125” with side wings extended. When side wings are collapsed, the Deploy is streamlined, compact, and easily maneuverable. The aluminum top surface of the Deploy is equipped with a 2.5” cable passthrough hole for superior cable management and is finished with INOVATIV’s signature black outdoor marine carpet.

Simplified Transport

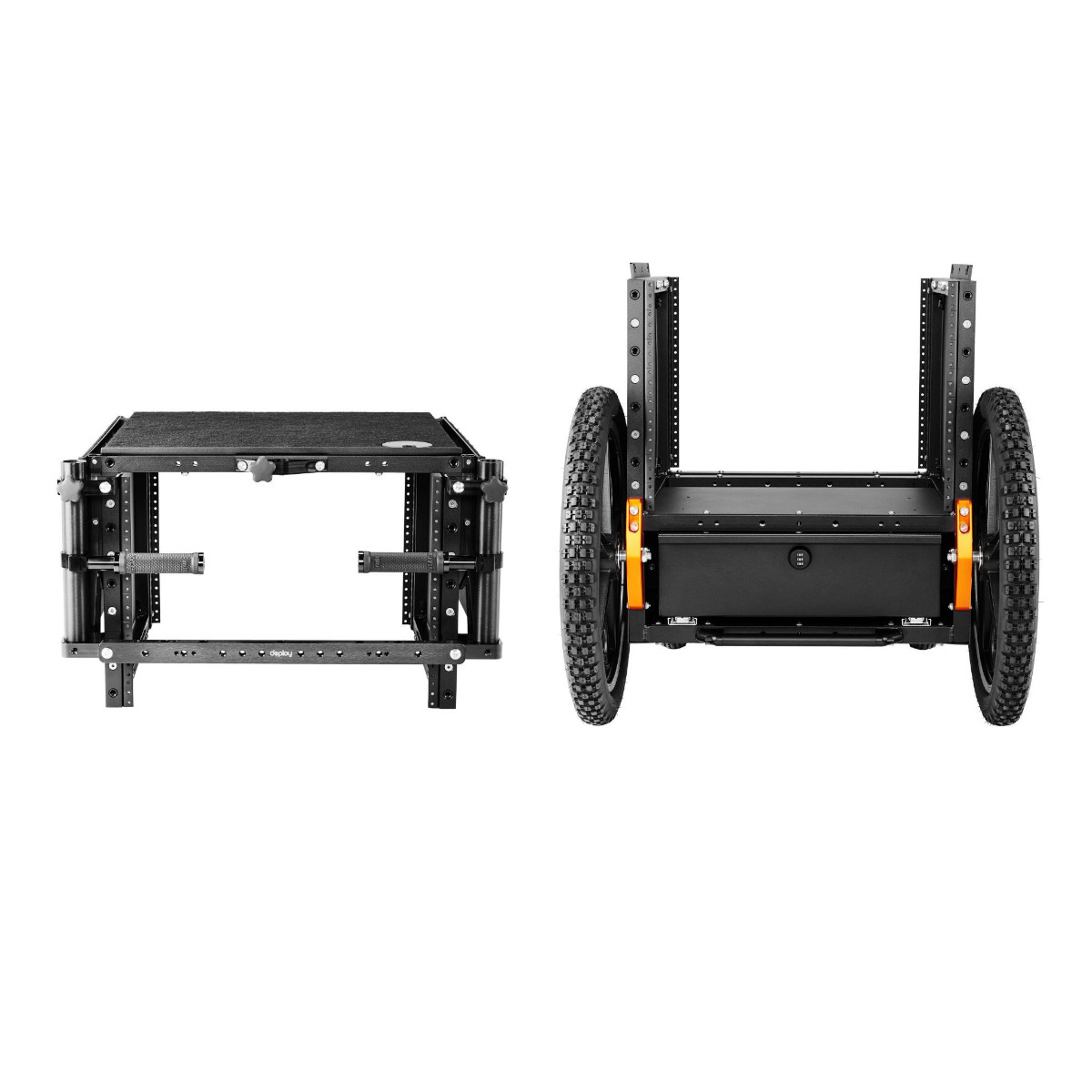

The Deploy frame separates in half for simplified transportation and storage. Four removable aluminum side panels protect the inside of the workstation and still allow easy access to internal rack-mounted components. The Deploy is compatible with industry-standard 19” rack-mounted systems.

Accessory Mounts

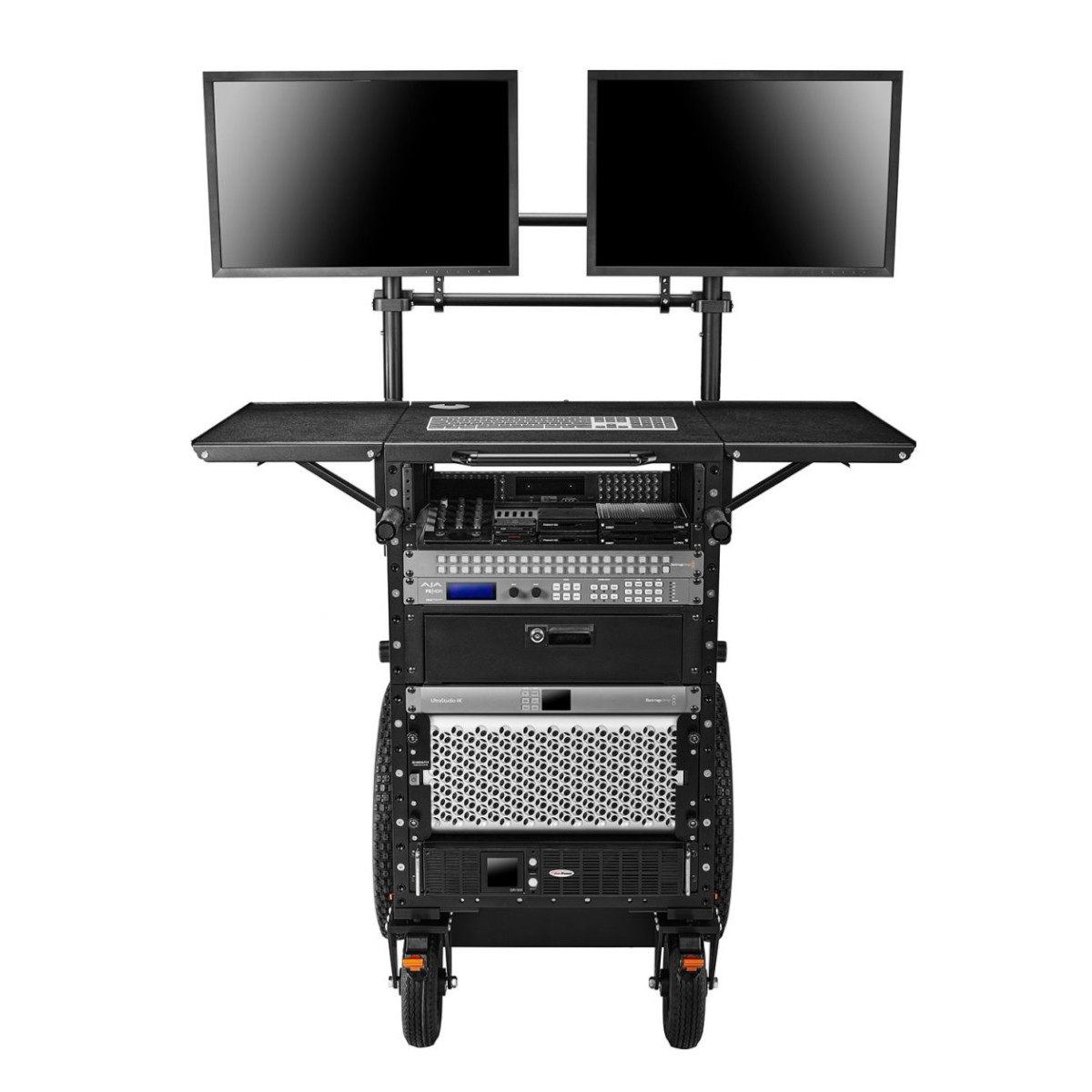

Integrated accessory mounts in several places allow the user to further customize their workstation. Rear Accessory Mounts provide easy connection to INSIGHT Monitor Mount Systems or Two-Stage Risers. A Rear Crossbar supplies additional 3/8″-16 mounting points for accessories like Cable Hooks. Center Mast Bracket provides centered mounting of accessories like the Two-Stage Riser. The Deploy frame features integrated 3/8”-16 threaded mounting points throughout and features 16 replaceable 3/8″-16 accessory bars.

INOVATIV Deploy — Ultimate Mobility

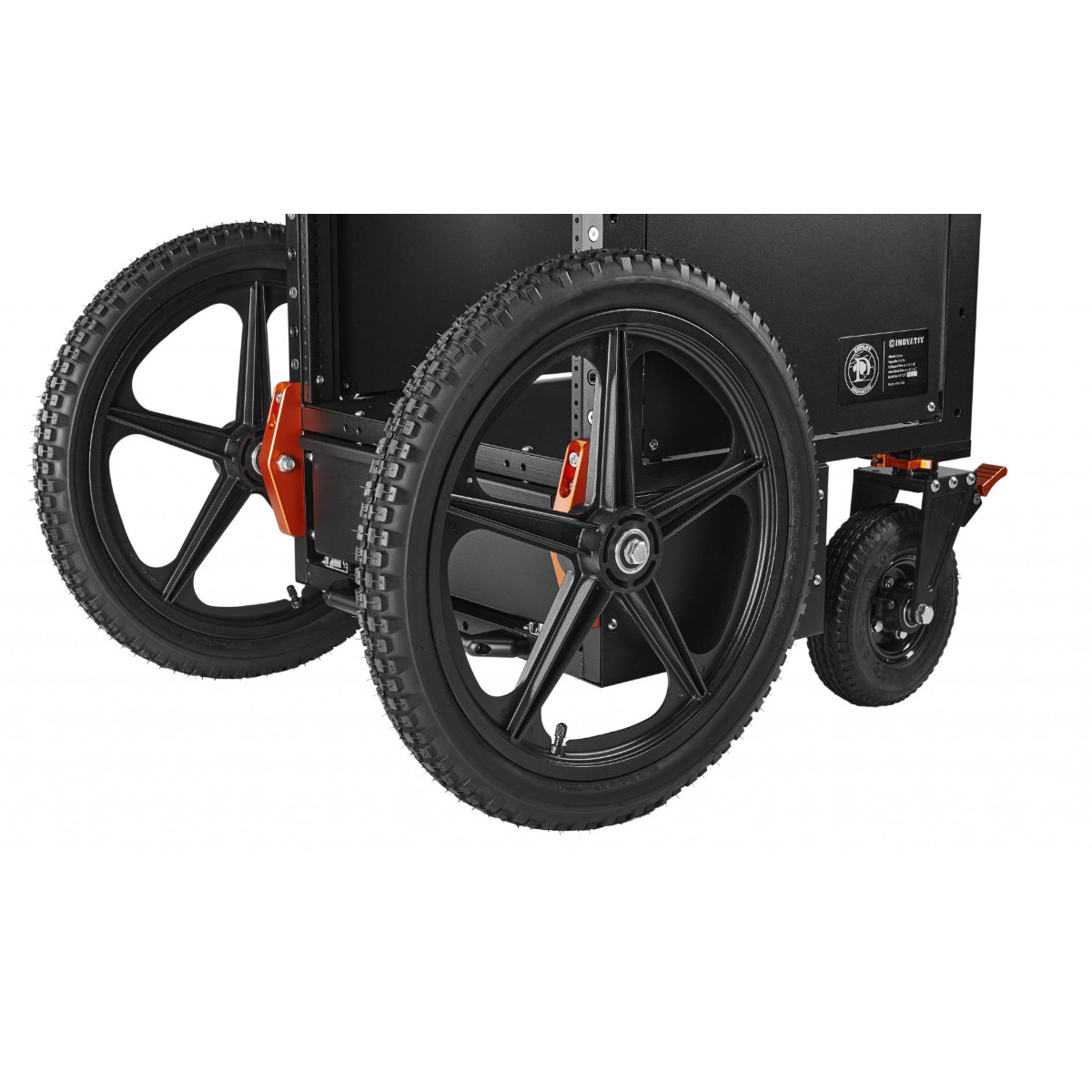

Ideal for both studio and on-location use, the Deploy is fit for travel with INOVATIV’s EVO Wheel System on the front and 20” traction wheels in the rear. EVO Wheels swivel for navigation, include foot brakes for safety, and can be removed if needed. The 20” rear wheels improve mobility over uneven surfaces or rugged terrain.

Made in the US

Deploy is designed and manufactured in Southern California with premium grade materials and craftsmanship to ensure reliability.

Specifications

Dimensions

• 35 In. L x 45.25 In. W x 42.5 In. H Assembled, Wings Extended
• 35 In. L x 27.50 In. W x 42.5 In. H Assembled, Wings Collapsed
• Top Working Surface, Side Wings Collapsed: 21.25 In. L x 21.125 In. W
• Top Working Surface, Side Wings Extended: 21.25 In. L x 45.125 In. W
• Bottom Drawer Internal Dimensions: 11.625 In. L x 17.625 In. W x 5.250 In. H
• Rack Dimensions (Top Half): 21.00 In. L x 19.00 In. W x 14.00 In. H
• Rack Dimensions (Bottom Half): 21.00 In. L x 19.00 In. W x 14.00 In. H

Rack and Frame

• 10/32 Tapped Steel Rack-Rail
• 16U of standard 19″ rack space, 21″ depth
• (38) integrated and replaceable 3/8-16 threaded mounting holes

Weight and Payload

• Product Weight: 102 lb
• Payload Capacity: 600 lb

INOVATIV Deploy Ships With:

• Deploy workstation
• Set of 2 Quick Grips
• Set of 2 Load Handles
• Locking Bottom Drawer
• 50x 10-32 x 0.500 Socket Head Stainless Steel Bolts for accessory rack mounting
• Deploy ships via LTL Freight
