JK Audio BlueSet Wireless Headset Interface

500.00 USD

Limited run, while supplies last. Expected delivery in 6–8 weeks. Pre-orders are nonrefundable. Call 800-241-8994 for inquiries.

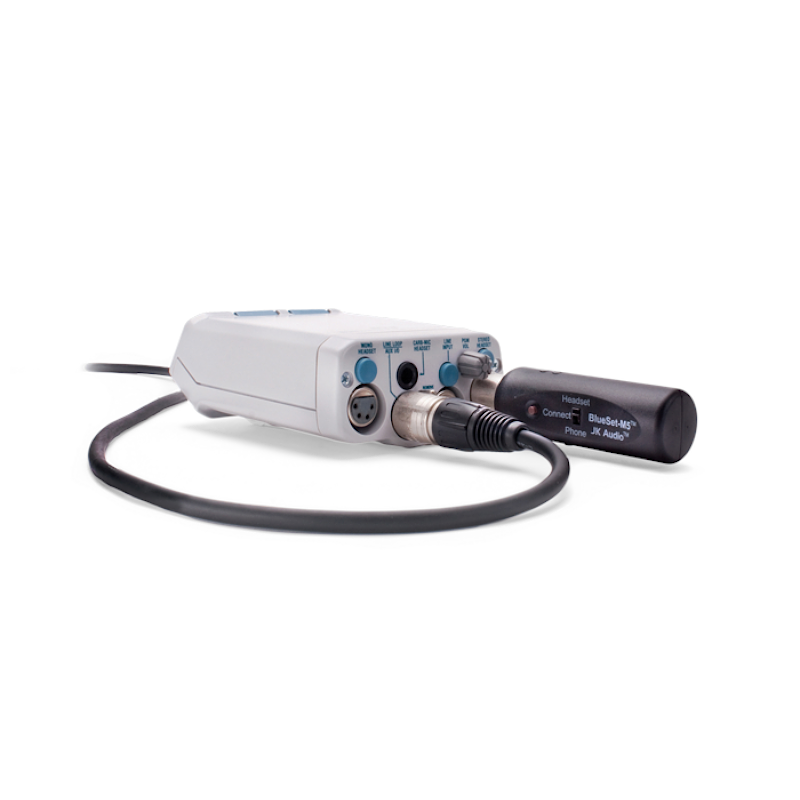

JK Audio BlueSet — Wireless headset interface that plugs directly into most party-line (PL) beltpacks, replacing the wired headset. A 3.5 mm stereo headset jack contains a mic level output signal suitable for recording, with the beltpack headphone signal on the left channel and the Bluetooth return signal on the right. A switch selects between connection to a 3rd party Bluetooth headset or a cell phone.

Clear
SKU: JKABLUESET Category: Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

Limited run, while supplies last. Expected delivery in 6–8 weeks. Pre-orders are nonrefundable. Call 800-241-8994 for inquiries.

JK Audio BlueSet Wireless Headset Interface

JK Audio BlueSet Wireless Headset Interface — Plugs directly into most party-line (PL) beltpacks, replacing the wired headset. A 3.5 mm stereo headset jack contains a mic level output signal suitable for recording, with the beltpack headphone signal on the left channel and the Bluetooth return signal on the right. A switch selects between connection to a 3rd party Bluetooth headset or a cell phone.

Available with male or female connector (4 or 5 pin).

Features

  • Electret / Dynamic Headset Compatibility
  • HD Voice Compatible (Wide-Band Speech)
  • Bluetooth Wireless Technology
  • Mini USB power jack
  • >6 hours on Internal Li-Ion Battery
  • Trim pot adjusts Bluetooth Return
  • Made in America
  • CE compliant — approved for sale in Europe and Australia

Overview:

Headset Connect — Pair BlueSet to your Bluetooth headset. Leave your belt pack on the desk as you walk around the room.

Phone Connect — Pair BlueSet to your cell phone to extend your system around the world. The belt pack Mic/Talk button controls audio from the cell phone into the intercom system.

HD Voice* — BluePack now features HD Voice technology, allowing 7 kHz wideband Speech when used with compatible phones on compatible networks. Read this HD Voice primer for more details.

Intercom Headset Compatibility — Female and Male XLR four and five pin versions available: BlueSet-F4, BlueSet-F5, BlueSet-M4, & BlueSet-M5.

Specifications:
Output 1/8″ (3.5 mm) stereo
Impedance 1000 ohms
Level 15 mV RMS (-34 dBu nom)
Bluetooth Wireless Technology
Standard Bluetooth 3.0
Distance 66 ft (20 m)
Frequency Response Hands-Free (Full Duplex): 300 Hz– 3.4 kHz
Hands-Free (Full Duplex HD): 50 Hz– 7 kHz
XLR Pinout
Pin 1 Headset Mic (low)
Pin 2 Headset Mic (high)
Pin 3 Headphone (low)
Pin 4 Headphone (high)
Pins 4 & 5 are mixed together on BlueSet F5/M5 to accomodate dual-sided headsets.
Pin 5 Headphone (high)
Misc
Connector Mini-USB Series B
Battery Internal Lithium-Ion Polymer rechargeable
Size 1.1” x 4.4” (2.8 cm x 11.2 cm)
Weight 2.1 oz (60 g)

*HD Voice: While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice
calls offer 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives voice a more
natural sound, while the additional upper octave dramatically improves speech clarity and intelligibility.

*Wireless HD Calls: To take advantage of this extended bandwidth, both phones on the call must
support HD Voice, & both phones must be on the same carrier in coverage areas that support HD Voice.
