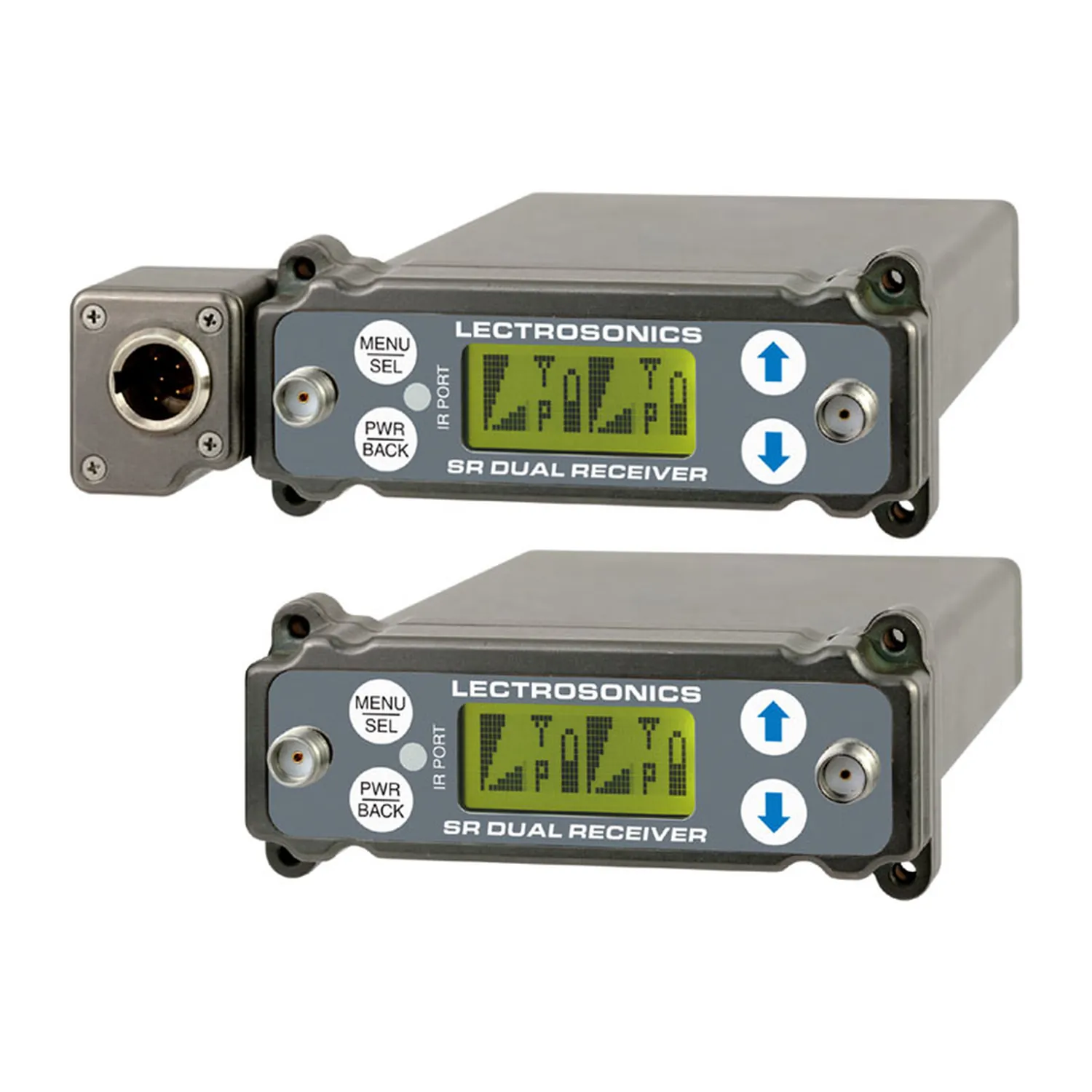

Lectrosonics SRc and SRc5P Dual-Channel Slot Mount Receiver

Lectrosonics SRc and SRc5P Dual-Channel Slot Mount Receiver

From: 2,755.00 USD

Lectrosonics SRc and SRc5P receivers — Fit in camera slots & Lectrosonics Duopack adapter and Octopack multicoupler. Operate stand-alone with various adapters.

Unavailable for shipping outside of The United States and Canada.

Clear
SKU: LECSRCNSRC5P Categories: , , , Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

Lectrosonics SRc and SRc5P Features at a Glance

  • Fits camera “slots,” Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
  • Tunes over a 75 MHz range* (3 blocks)
  • Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
  • Digital Hybrid Wireless® with compatibility modes for use with other transmitters

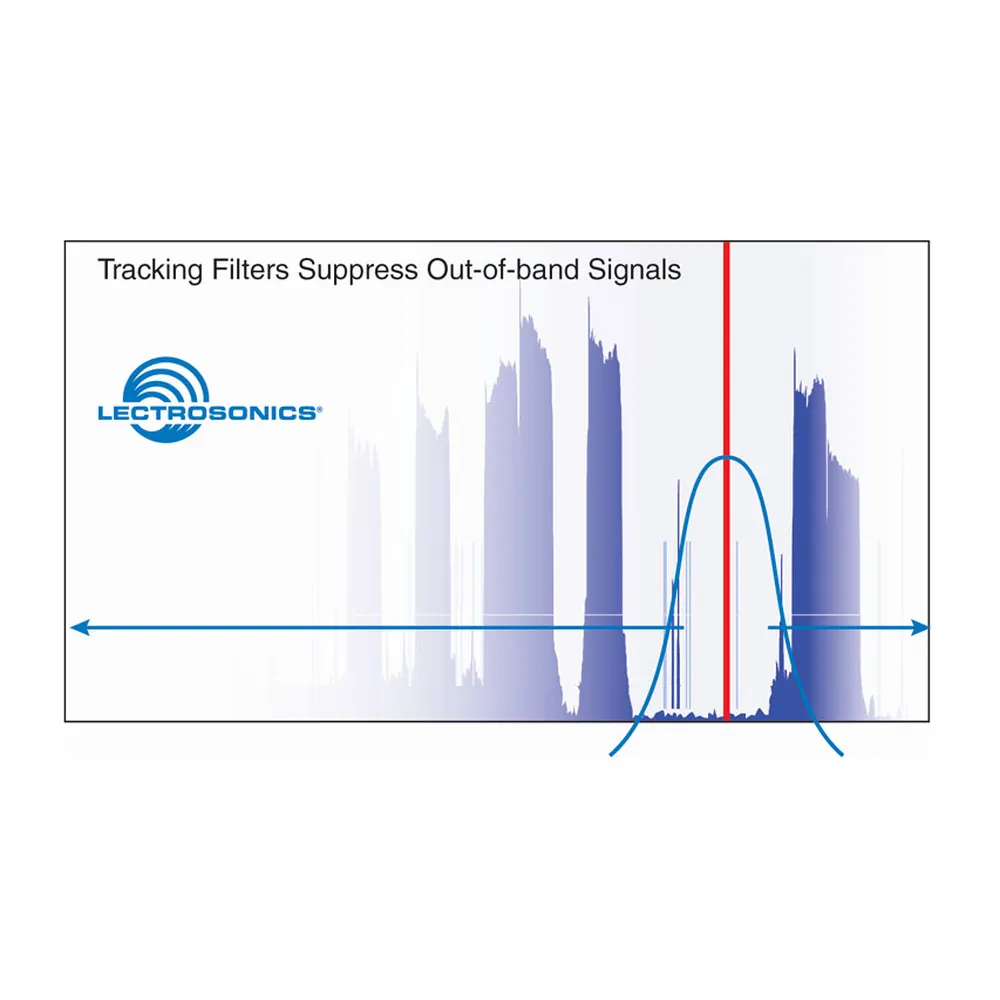

  • Tracking front-end filters for high performance in tough RF environments

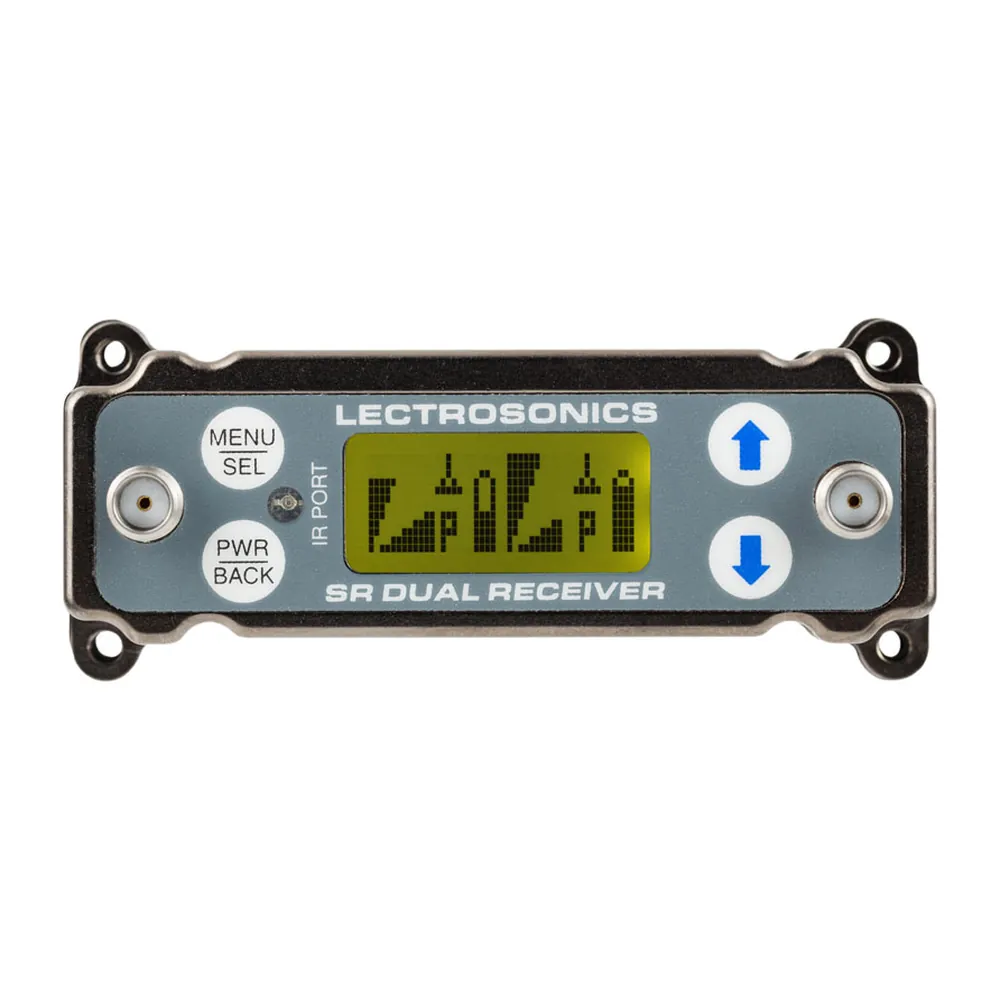

  • LCD with RF spectrum scanning
  • SmartSquelchTM DSP-controlled, noise-based filtering and squelch
  • DSP-based pilot tone for squelch control
  • IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
  • SmartTune operation for quick and confident frequency selection

The Lectrosonics SRc and SRc5P Digital Hybrid Wireless® dual-channel diversity “slot” receivers with Smart Tuning and SuperSlot™ compatibility, designed for top performance in tough RF environments, making them ideally suited for field production.

The Lectrosonics SRc and SRc5P units each consist of two receivers which are built into a single, ultra-compact housing, with optional adaptors for video camera receiver slots and for standalone use. The two internal receivers can be operated separately, each using switching, antenna combining diversity, or in tandem with ratio diversity reception. The audio inputs of the receivers can be mixed internally or left separated for discrete recording tracks or external mixing. The 5P variant allows dual channel operation.

These new Digital Hybrid Wireless dual-channel diversity slot receivers include a wide tuning range of three standard Lectrosonics blocks or 76 MHz. Tuning steps of 100 kHz or 25 kHz allow for up to 3072 frequencies per band. Tracking front-end filters provide excellent out-of-band rejection of RF noise, making the receivers ideal performers in extreme RF conditions. And DSP compatibility modes allow the receivers to be used with a variety of Lectrosonics systems, including the IFB transmitters, as well as a variety of other wireless systems. An IR (infrared) port is included to simplify setup with IR enabled.

The SmartTune feature quickly and automatically selects frequencies based on local scan data. Audio frequency response: 40 Hz – 20 kHz +- 1dB. Four frequency ranges are available for worldwide use: A1 (470-537 MHz or blocks 470, 19, and 20), B1 (537-614 MHz or blocks 21, 22 and 23), B2 (563-640 MHz or blocks 22, 23 and 24) and C1 (614-691 MHz or blocks 24, 25 and 26).

Specifications

Operating Frequencies:
  • Tuning range A1: 470.100 – 537.575 MHz
  • Tuning range B1: 537.600 – 614.375 MHz
  • Tuning range C1: 614.400 – 691.175 MHz
Frequency selection steps: Selectable; 100 kHz or 25 kHz
IF Frequencies:
  • Ch.1: 248.450 MHz and 350.000 kHz
  • Ch. 2: 243.950 MHz and 250.000 kHz
Frequency Stability: ±0.001 %
Front end bandwidth:
  • 20 MHz @ -3 dB Sensitivity
  • 20 dB SINAD: 1.0 uV (-107 dBm), A weighted
  • 60 dB Quieting: 2.2 uV (-100 dBm), A weighted
Squelch quieting: Greater than 100 dB typical
AM rejection: Greater than 60 dB, 4 uV to 1 Volt
Modulation acceptance: 85 kHz
Image and spurious rejection: 85 dB
Third order intercept: 0 dBm
Diversity method: SmartDiversityTM phased antenna combining or Ratio Diversity using both receivers for a single audio channel
FM Detector: Digital Pulse Counting Detector operating at 250 and 350 kHz
RF spectrum analyzer: Coarse and fine scanning modes for RF spectrum site survey
Antenna inputs: 50 Ohm; SMA female connectors
Audio outputs connectors:
  • Interchangeable D connector adapters for camera slot interfaces
  • Dual TA3 male (mini XLR) balanced output adapter
  • Balanced output adapter with fixed cables

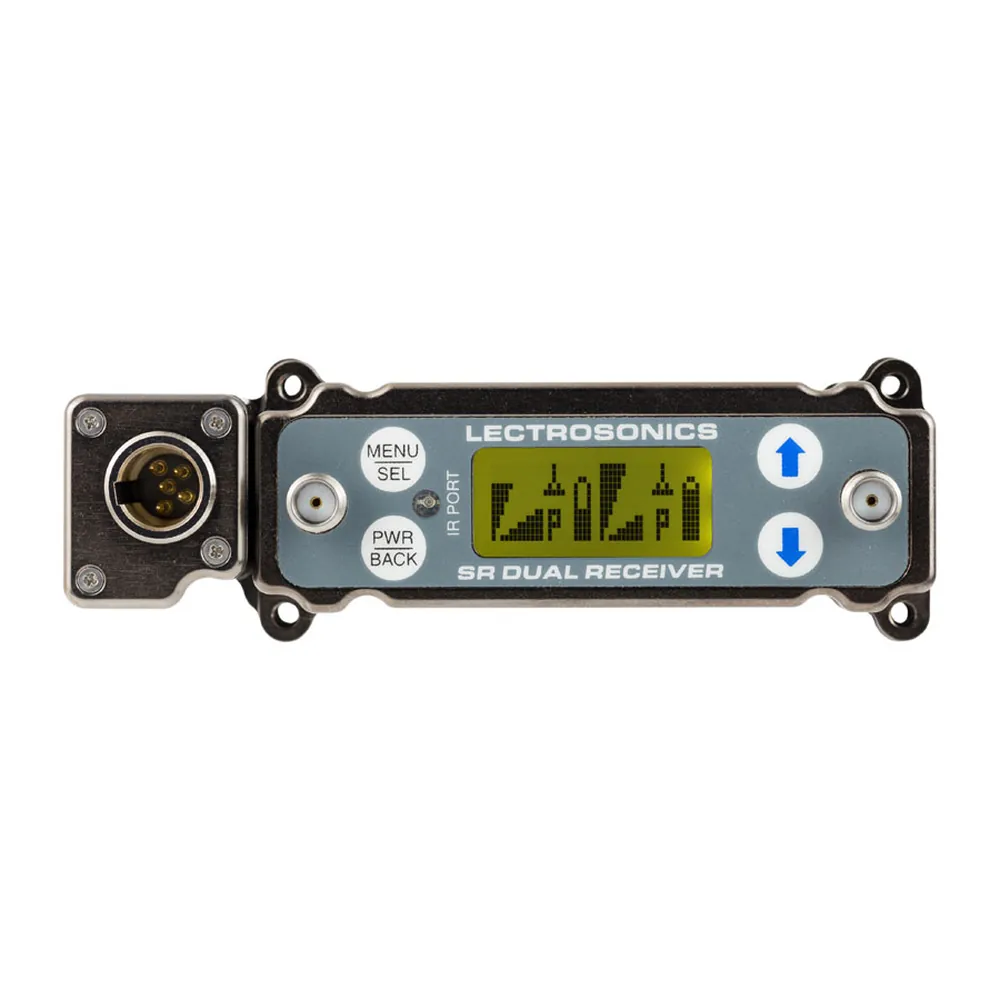

Front panel audio output (5P version): Front panel TA5M with two balanced outputs
Audio output level: Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output is 6 dB lower
Audio channel crosstalk: -80 dB or better

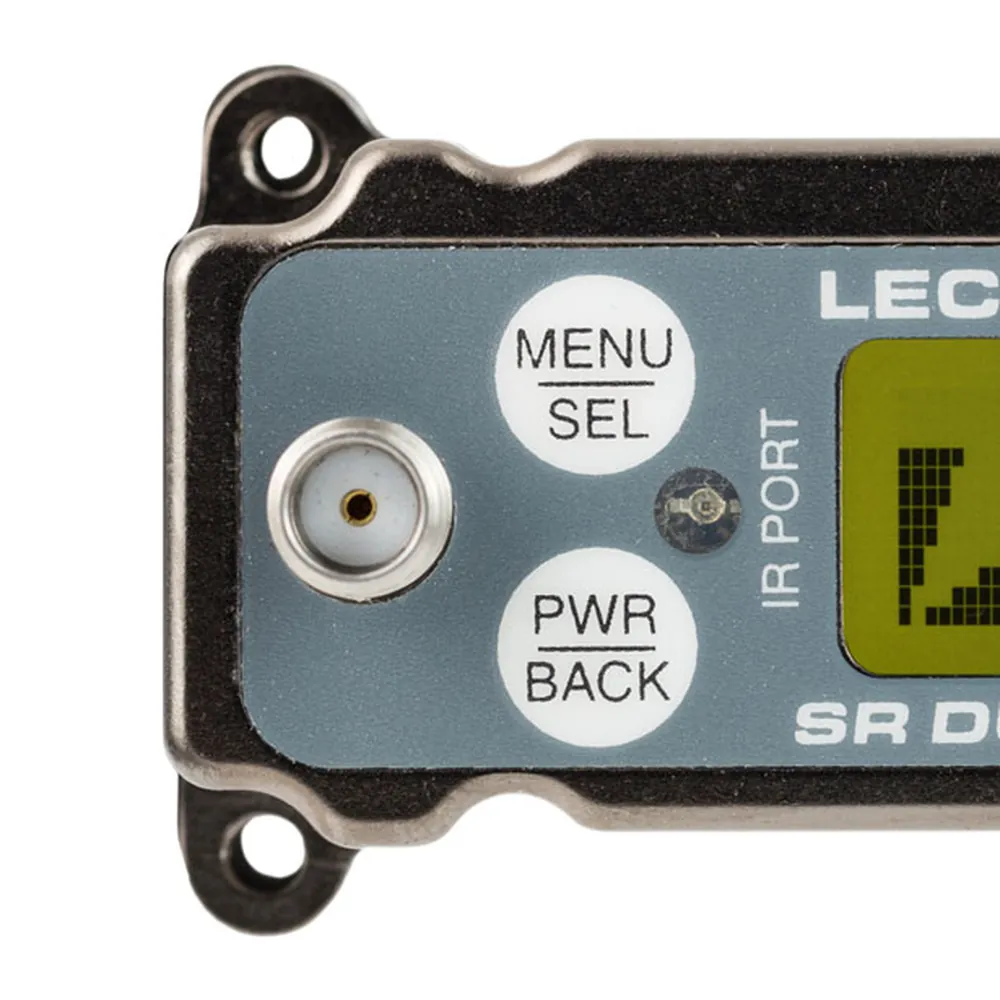

Front Panel Controls and Indicators:
  • Sealed panel with membrane switches
  • LCD monitors pilot tone; antenna phase, receiver battery level; transmitter battery status; audio level, RF level
SizAudio test tone: 1 kHz, -50 dBu to +5 dBu output (bal); 1% THD
Transmitter battery type Selection: 9V alkaline, 9V lithium, AA alkaline, AA lithium, NiMH
Phase invert: Audio output phase normal or inverted
Compatibility modes:
  • HYB native Digital Hybrid mode
  • M.3 non-Lectrosonics (call factory)
  • 200 Lectrosonics 200 Series
  • 100 Lectrosonics 100 Series
  • HYB/TB Digital Hybrid w/ Talkback
  • M.7 non-Lectrosonics (call factory)
  • M.6 non-Lectrosonics (call factory)
  • IFB Lectrosonics IFB
SmartNR (noise reduction): OFF, NORMAL, FULL modes (available in Digital Hybrid mode only)
Audio Performance (overall system): Frequency Response: 32 Hz to 20 kHz (+/- 1dB)
THD: 0.15% (system) typical in Digital Hybrid mode
Input Dynamic Range: 125 dB (with full Tx limiting)
Rear Panel Controls and features:
  • Audio output connectors;
  • External DC input; Powering and current consumption: Min. 7 V to max. 18 Volts DC; 2.2 W
  • 125 mA at 18 VDC
  • 180 mA at 12 VDC
  • 295 mA at 7 VDC
Runtime with SRBATTSLED adapter: 7.2 V, 2200 mAH “L” style battery will typically provide about 11 hours of operation
Transmitter battery level tracking: LCD display with battery icon or timer readout
Operating temperature: -20° C to +50°C
Weight: 195 grams (7 ozs.) with SRaEXT adapter
Dimensions: 2.68” wide x .72” high x 3.52” deep (68 mm x 18 mm x 89 mm)
