Remote Audio Adapt-a-Pak Pro Kit

Description

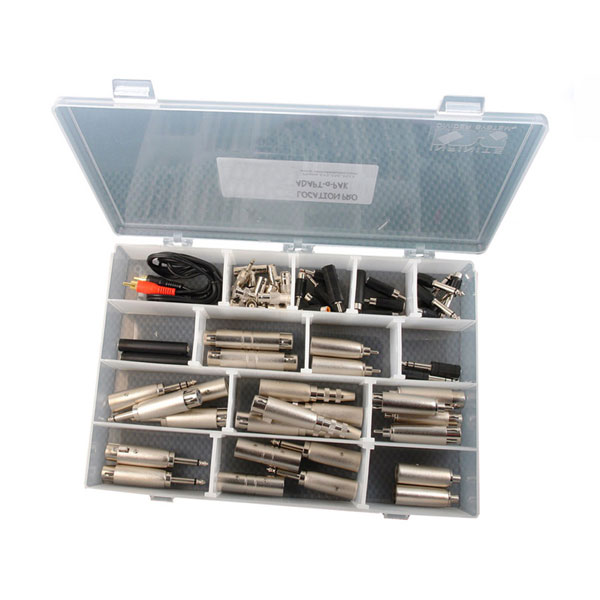

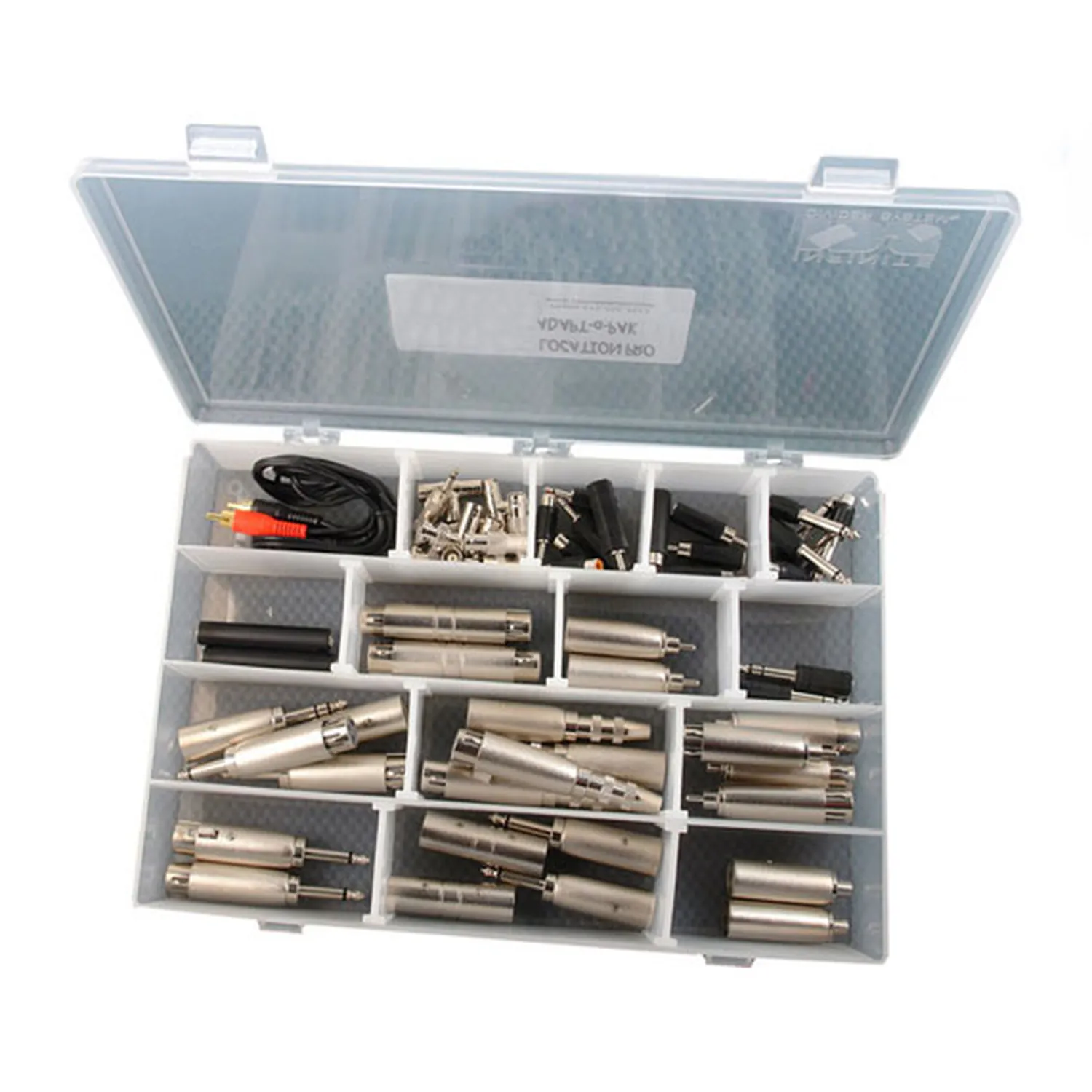

The Remote Audio Adapt-a-Pak Pro Kit (APPKITPRO) is a collection of the most commonly needed problem-solver adapters for location sound mixing, all in a low-profile, durable carry pack. The Adapt-a-Pak kits provide the adapters you need, organized and at your fingertips for quick reaction to any situation.

Utilizing an an easy-to-use, customizable divider system, Adapt-a-Paks are perfect for efficient packing in space-starved cases. Plus, the Adapt-a-Paks are very cost effective, as each of the connectors purchased separately would be quite a bit more expensive. Be prepared for any situation, and save cash, too. The sound department can often find itself making adapters on the fly from spare parts and cable. But the Adapt-a-Pak saves you the time, effort, and space required for these do-it-yourself jobs.

The Adapt-a-Pak includes adapters for most balanced and unbalanced connections, including XLR, BNC, RCA, quarter-inch, and three-and-a-half millimeter, of both genders. Balanced connectors in the Adapt-a-Pak are wired unbalanced when adapting to a two-wire connector, which means that XLR pins one and three are connected to the ground, and pin two is connected to the audio positive.

The Pro version of the Adapt-a-Pak features 30 different types of commonly needed audio adapters, with 58 pieces total.

The Pro version includes the following adapters:

• (2) 3.5mm TS jack to 1/4 inch TS plug. APP01
• (4) Phono (RCA) jack to 1/4 inch TS plug. APP02
• (2) 3.5mm TS jack to Phono (RCA) plug. APP04
• (2) Phono (RCA) jack to 3.5mm TS plug. APP06
• (2) 1/4 inch TS jack to Phono (RCA) plug. APP07
• (2) 1/4 inch TS jack to 3.5mm TS plug. APP09
• (2) Phono (RCA) jack to Phono. (RCA) jack APP11
• (2) 1/4 inch TS plug to XLR3M. APP12
• (2) XLR3M to XLR3M. APP13
• (2) 1/4 inch TS jack to XLR3M. APP14
• (2) XLR3F to 1/4 inch TS plug. APP15
• (2) XLR3F to 1/4 inch TS jack. APP16
• (1) Unbalanced stereo breakout cable. Gold plated. 3.5mm TRS plug to (2) Phono (RCA) plugs. 5 feet. APP17
• (2) BNC “T” adapter. Jack-Jack-Jack. APP19
• (2) BNC jack to 3.5mm TS plug. APP20
• (2) BNC jack to Phono (RCA) plug. APP21
• (2) BNC jack to BNC plug. Right angle. APP22
• (2) BNC jack to BNC jack. APP24
• (2) XLR3F to 1/4 inch TRS plug. APP28
• (2) 1/4 inch TRS plug to XLR3M. APP29
• (2) XLR3F to Phono (RCA) jack. APP30
• (2) XLR3F to Phono (RCA) plug. APP31
• (2) Phono (RCA) jack to XLR3M. APP32
• (2) Phono (RCA) plug to XLR3M. APP33
• (2) XLR3F to XLR3F. APP34
• (2) 3.5mm TRS jack to 1/4 inch TRS plug. APP35
• (2) 1/4 inch TRS jack to 1/4 inch TRS jack. APP36
• (1) CAT5e Coupler. Metal housing. Shielded. (CAT5ECOUPLER)
