Description

Schoeps ST 20-3/8 Table Mounting Cylinder

Schoeps ST 20-3/8 Table Mounting Cylinder — This cylindrical mounting adapter is inserted into the TEF elastic suspension. Its 3/8″ tap screw can hold a support rod or gooseneck. The adapter exists in a long and a short version.

There are two notches in the sides of the adapter, through which the cable or cables can be passed. Alternatively, the cable can be passed through the centre of the adapter. For this purpose, the adapter has a hole drilled in the center of its top which can be used to pass a miniature cable through. However, the connector has to be dismantled to do this.

Available Versions:

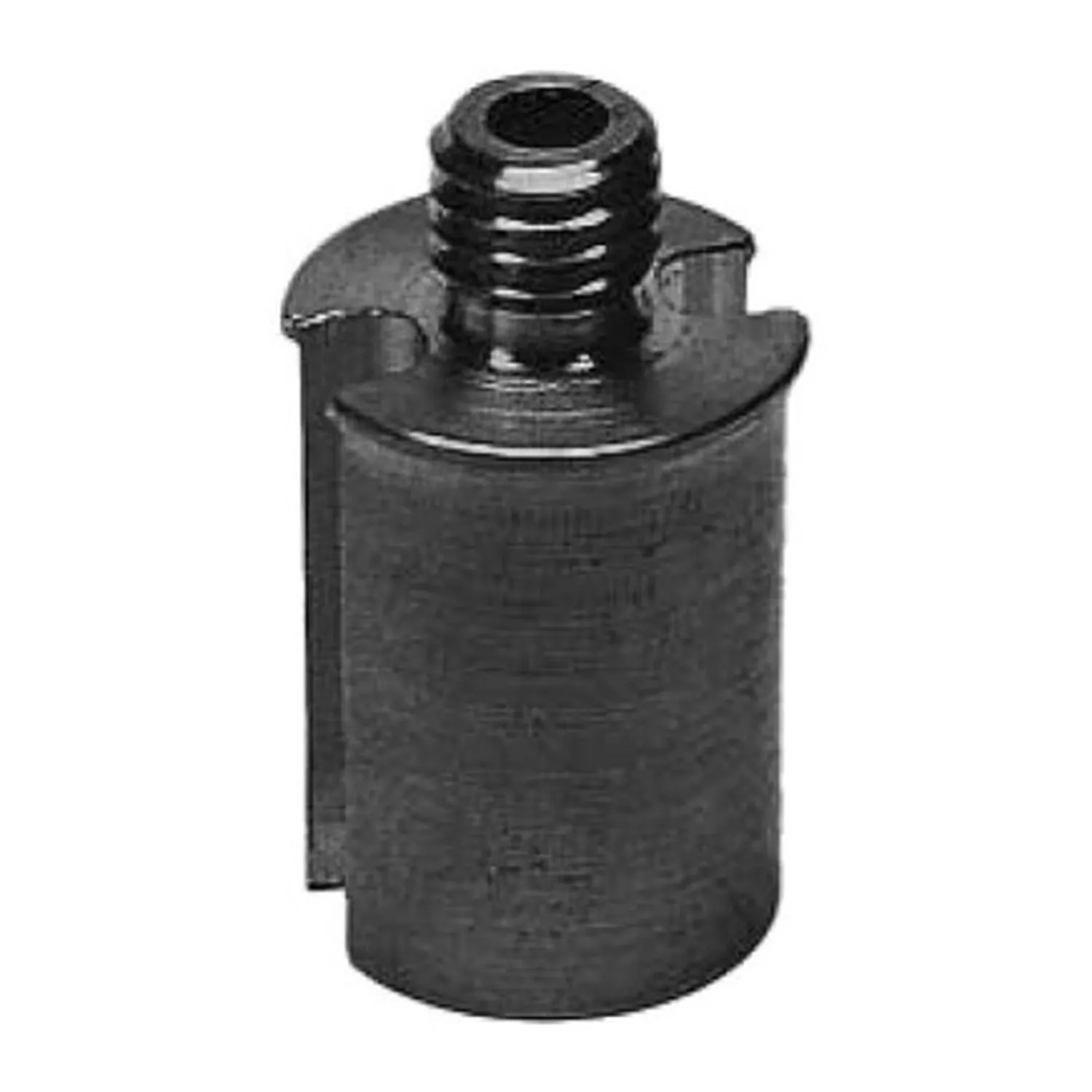

• ST 20-3 / 8 (Mfr. code: 165007): Short version is suitable for mounting in a TEF table flange.

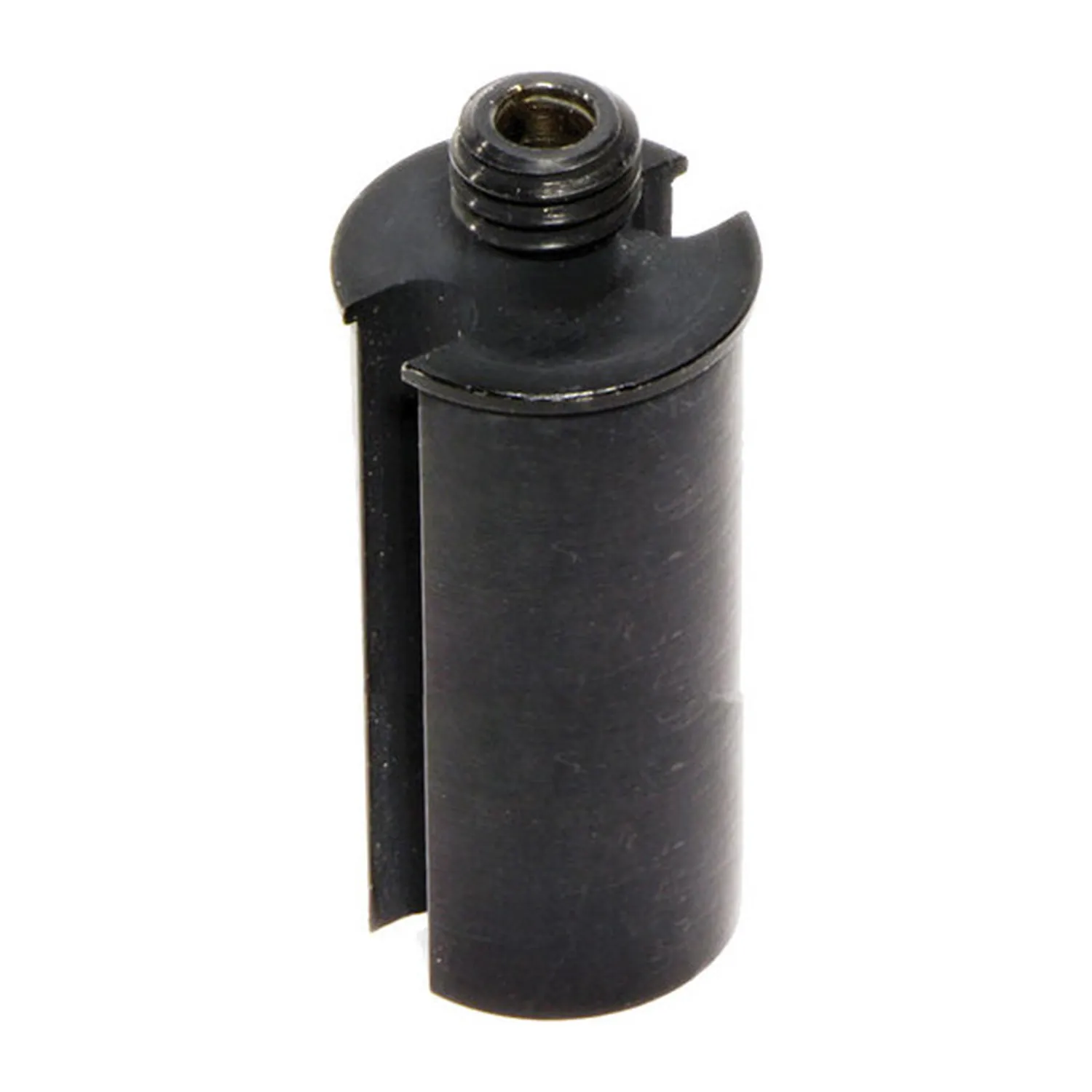

• ST 20-3 / 8 EXT (Mfr. code: 165009): Long version is suitable, if two table flanges AF 1 are used.

PRACTICE

A typical set with built-in tripod looks like this:

• TEF-S – table flange
• ST 20-3/8 – mounting cylinder
• TM S 250 L38 – gooseneck
• CCM 4 – microphone
