Sennheiser XSW 1-835
On sale!

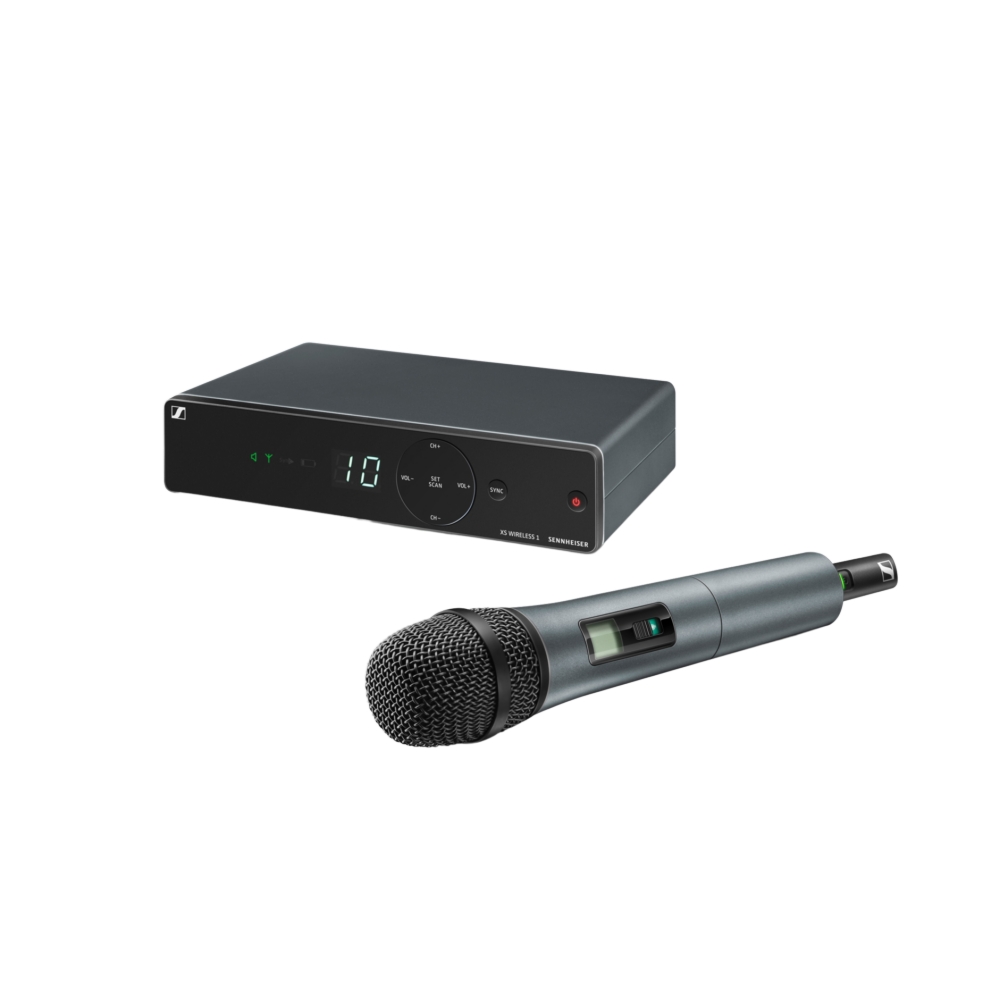

Sennheiser XSW 1-835 Wireless Microphone System

349.00 USD 299.00 USD

Sennheiser XSW 1-835 — An easy to use all-in-one wireless system for live sound applications. Features Sennheiser’s evolution e835 dynamic cardioid capsules. The XSW 1-835 provides a solid transmission with up to 10 compatible channels in a stable UHF band.

This product page is for the XSW 1-835-A model, frequency band 548 to 572 MHz.

Quantity:

SKU: SEN.507115 Categories: , , , , , Tags: , ,
Share on:
Share on google Share on pinterest Share on mail

Description

Sennheiser XSW 1-835

Sennheiser XSW 1-835 — An easy to use all-in-one wireless system for live sound applications. Features Sennheiser’s evolution e835 dynamic cardioid capsule. The XSW 1-835 provides a solid transmission with up to 10 compatible channels in a stable UHF band. Includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

This product page is for the XSW 1-835-A model, frequency band 548 to 572 MHz.

Sennheiser XSW 1-835 Features

  • Excellent live sound featuring Sennheiser’s renowned e835 microphone capsule
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

What’s Included:

  • 1 receiver EM-XSW 1
  • 1 handheld transmitter SKM 835-XSW
  • 1 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries

Specifications

AF frequency response 80-16,000 Hz
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern cardioid
Signal-to-noise ratio  ≥ 103 dBA
RF output power  10 mW
Switching bandwidth  up to 24 MHz
Operating time  approx. 10 hrs
Modulation  wideband FM

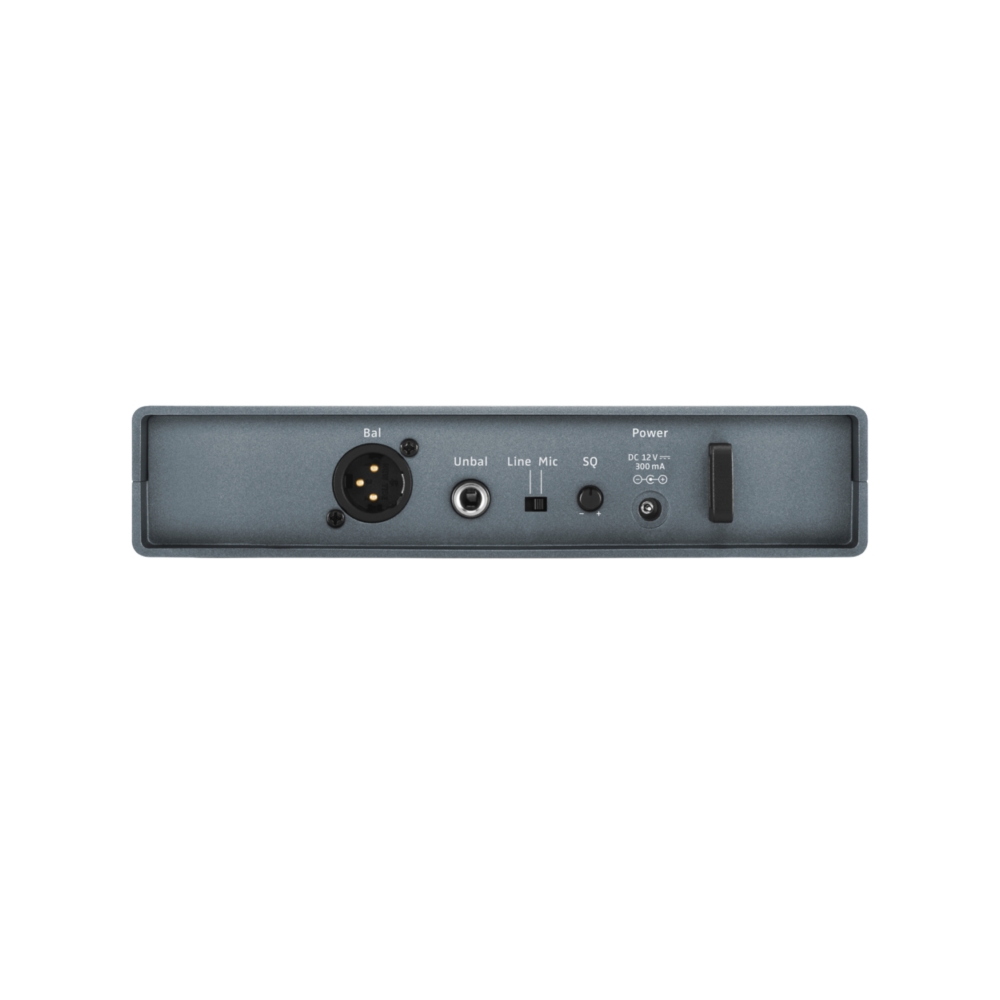

Output voltage  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing  rugged ABS housing
Dynamic range dynamic
Frequency  8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
Sensitivity  < 3 μV at 52 dB(A)rms S/N
Squelch  adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization  2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity  1.5 mV / Pa
Adjustment Range Transmitter  0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range  45 dB, adjustable in 5-dB steps
Line / Mic level  20 dB, switchable
Temperature Range  operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle  double superheterodyne
Diversity principle  Antenna switching diversity via internal antennas

Receivers

Power supply Receiver: 12 V DC nom. / 300 mA
AF frequency response  Receiver: 50 to 16,000 Hz (–3 dB)
Gain 8.5dB to 16.5dB, selectable
