Wisycom MCR54 4-Channel Receiver

Wisycom MCR54 4-Channel Receiver

3,885.00 USD

Wisycom MCR54 — Quad True Diversity Portable Receiver

Unavailable for shipping outside the United States and Canada.

Quantity:

SKU: WIS.MCR54B2 Categories: , , , Tags: ,
Share on:
Share on google Share on pinterest Share on mail

Description

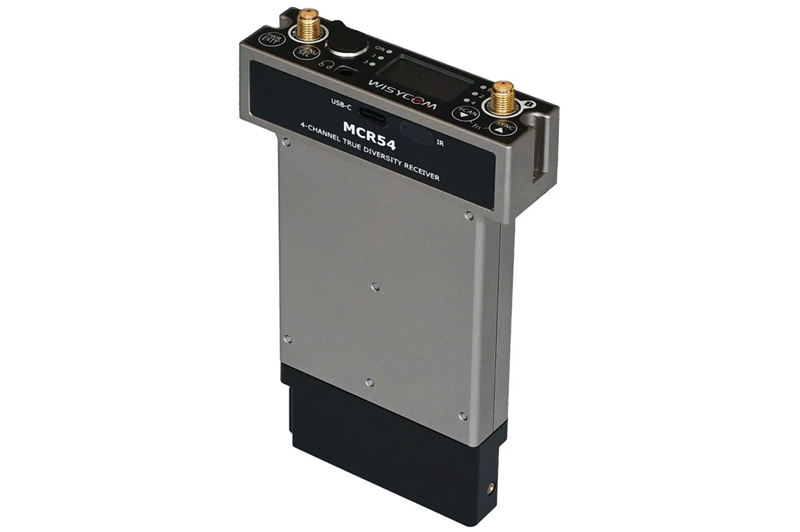

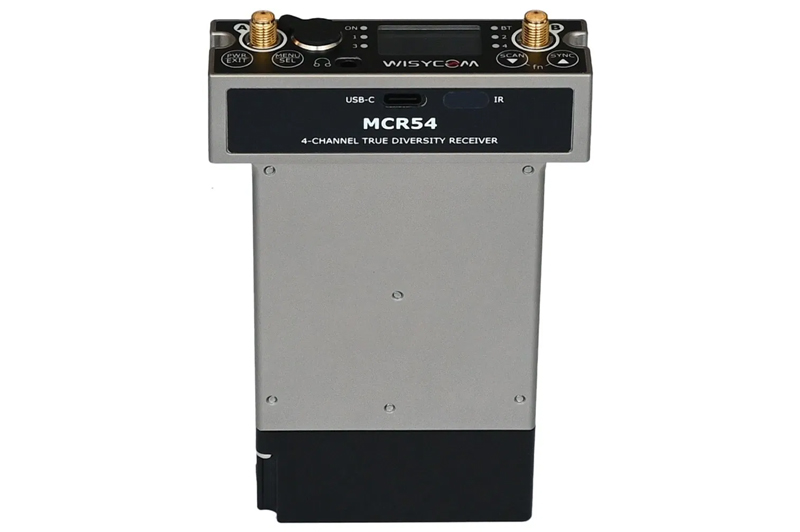

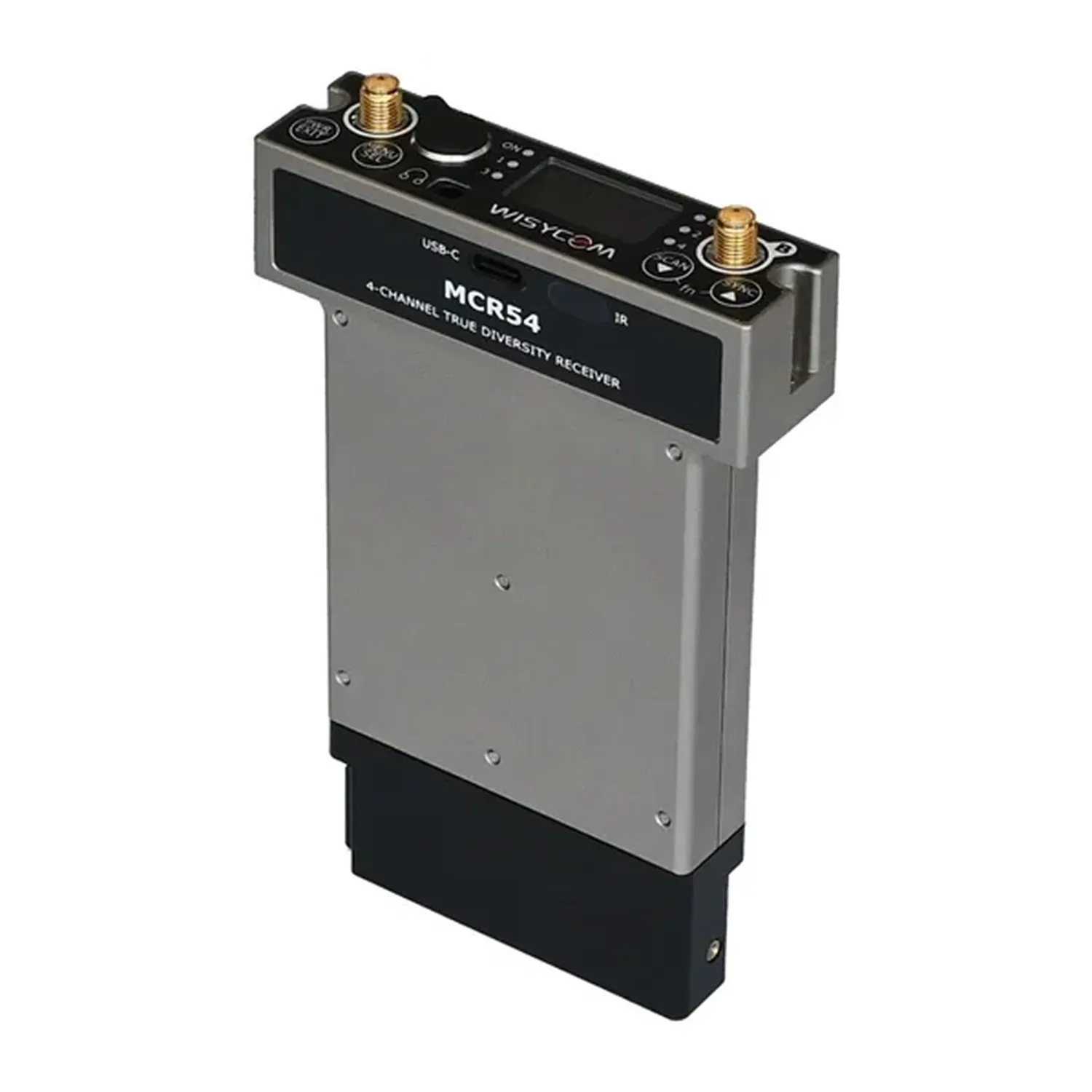

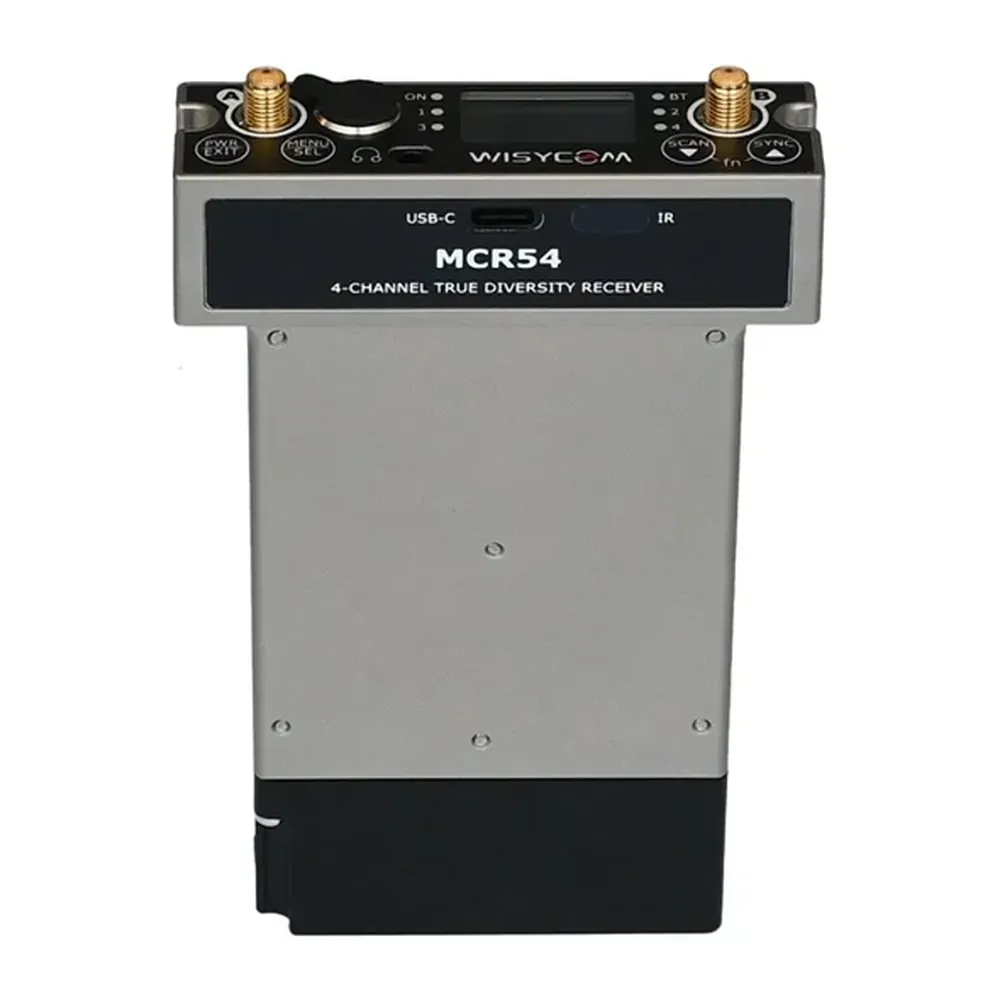

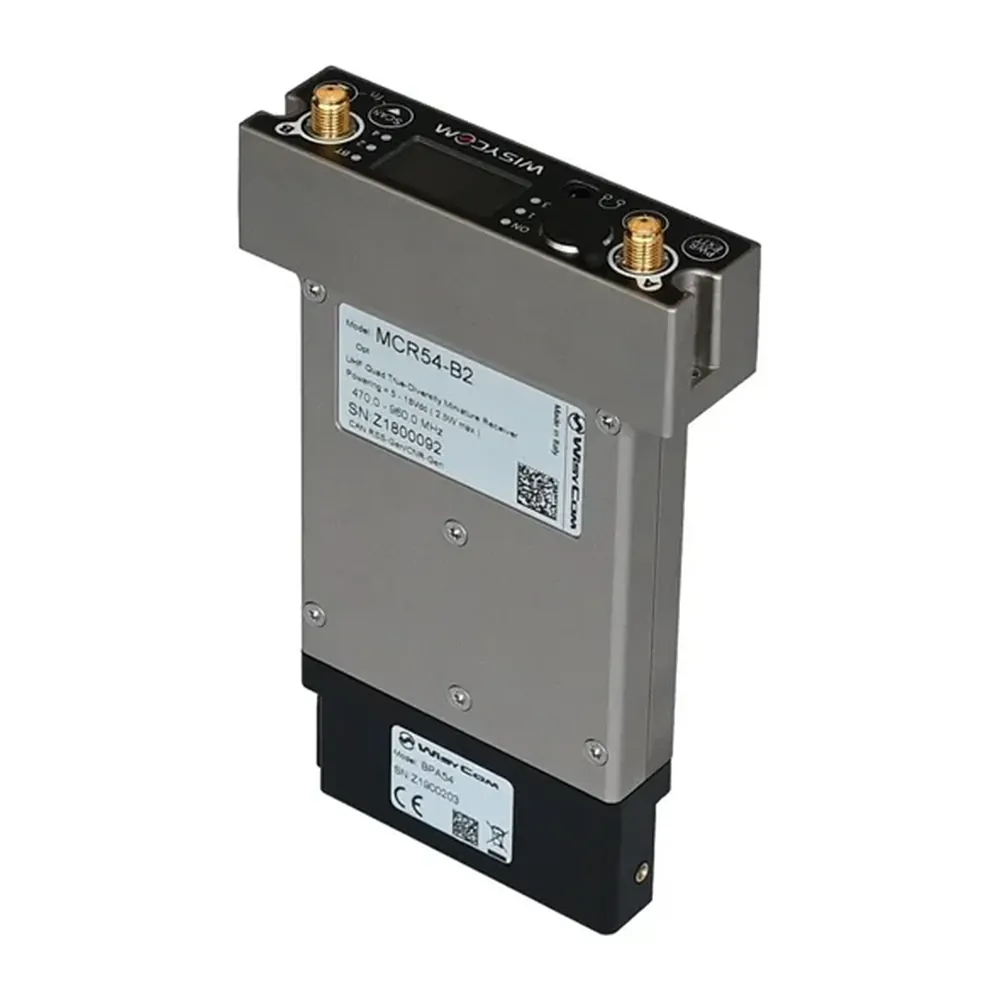

Wisycom MCR54 4-Channel Receiver

The Wisycom MCR54 4-channel receiver is a true diversity wireless microphone receiver system in a modular stand-alone or slot in configuration. Compatible with SuperSlot, camera slots, and “multi-slot” mixer accessories.

Four True Diversity Channels

With eight internal receiver boards, the MCR54 boasts an unprecedented capacity for range and reliability.

Multi-Band

Wideband just isn’t enough anymore!

Upgrade to a dual-band system of 470-663 MHz & 940-960MHz to find your frequency, anywhere in the United States.

High Density

With the combination of Narrowband Modulation and Linear transmitters, set your channels every 200kHz without intermodulation distortion and get an extra 3dB sensitivity.

Key Features:

  • Four channels True Diversity receiver (8 Receiver boards!)
  • Exceptional compactness and high robustness
  • DSP Analogue & Digital Audio Output (AES3)
  • Up to 790 MHz bandwidth in 470/1260 MHz range
  • Next Gen Multiband front-end filtering:
    • High Q electronically tunable filter in 470-800 MHz
    • 1st narrowband filter
    • 2nd narrowband filter
  • Wideband and Narrowband DSP-FM operation (SW selectable):
    • Narrowband allows more 50% band efficiency
    • Narrowband allows about 3dB extra sensitivity and noise immunity
  • Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup

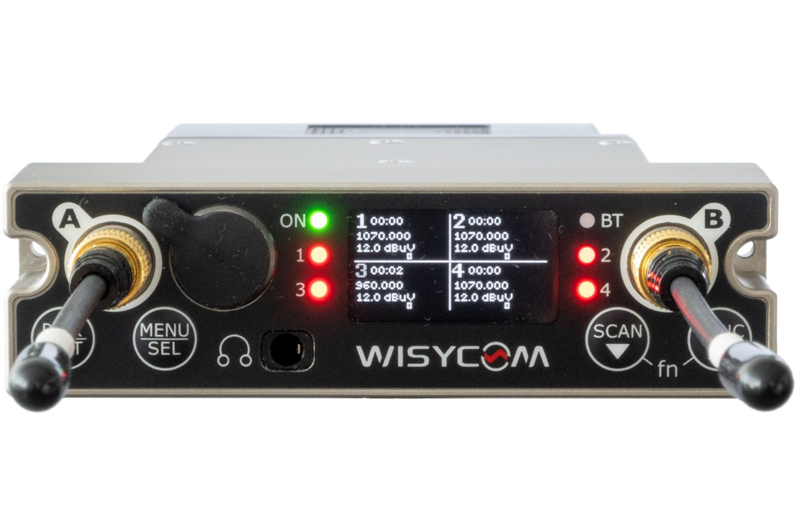

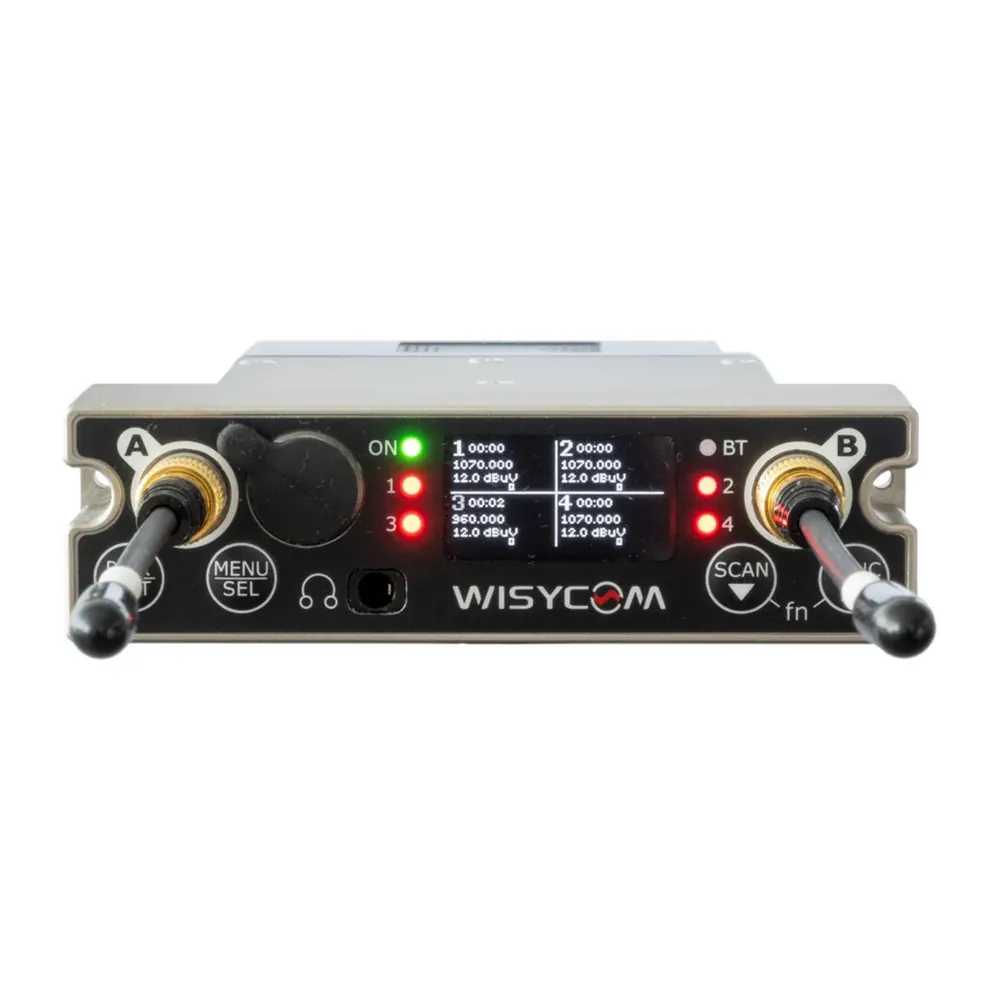

  • High contrast OLED display
  • Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
  • DSP based for extreme flexibility and multi-companding operations
  • Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
  • Rear antenna connectors and micro audio and power adapter

Specifications

Frequency ranges MCR54 B1: 470 ÷ 800 + 960÷1000 + 1045÷1071 MHz (UK)
MCR54 B2: 470 ÷ 800 + 823÷832 + 940÷960 MHz (USA/EU)
MCR54 B3: 470 ÷ 800 + 806÷809 + 1240÷1260 MHz (JP)
Switchable channels 2400 user programmable frequencies, organized in 40 groups of 60 channels
Switching-window up 790 MHz
Frequencies microprocessor controlled frequency synthesizer circuit, with 5 kHz minimum step.
The frequencies can be easily PC reprogrammed with USB C, Bluetooth 5 (long range) or optional UPKmini Programming
Frequency error < ± 2.5 ppm, in the rated temperature range
Modulation FM mono, wideband or narrowband IFB (SW selectable)
Peak deviation ±54 kHz (wideband), ± 40 kHz (narrowband)
Antenna input impedance 50 ohm sma type (SWR < 1:2; typ. 1:1.4)
Sensitivity 2 μV ( 6 dBμV), for SND/N > 58 dB;
5 μV (14 dBμV), for SND/N > 98 dB
in the whole switching-window*
Amplitude response < 0.5 dB (for RF input signal:6 dBµV ÷ 100 dBµV)
Adjacent chan. selectivity > 80 dB typical (for channel spacing ≥ 400 kHz)
Spurious emissions < 2 nW (typical = 0.1 pW)
Noise Reduction system ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized
ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis
ENS (for live application)
Others, compatible with most systems, thru an internal DSP emulation of SA572, SA575 and Rms envelope compander chip set, fully user programmable
AF bandwidth 30 Hz ÷ 20 kHz (wideband), 30 Hz ÷ 15 kHz (narrowband)
Frequency response ± 0.5 dB in the 30 Hz ÷ 19 kHz range (wideband),
± 0.5 dB in the 30 Hz ÷ 13 kHz (narrowband)
Distortion 0.3 % typical
SND/D ratio (Analogue) 120 dB typical*
SND/D ratio (Digital) > 125 dB typical
Audio output Electronically balanced on 5 pin mini-XLR Female connector analogue or digital (SW selectable)
Digital sample rate AES3 @ 48 kHz
Monitor output headphone 3.5 mm jack socket
Managing interface USB C, Bluetooth 5 (long range) or optional UPKmini Programming
LEDs 2 multicolour RGB LEDs to easy indicates Power & Bluetooth
4 multicolour RGB LEDs to easy indicates the audio status of the 4 RX
Display OLED 128×64 (white)
Powering – External = 5 ÷ 18 Vdc (2.5 W max)
– Autonomous. = with optional BCA 54 Battery Module
Power consumption 2.5 Watt max (with 4 active receivers)
Temperature range -10 ÷ +55 °C
Dimensions 104 x 85 x 25 mm (H x W x D)
Weight 230g
*RMS value, 22 Hz / 22 kHz, unweighted
