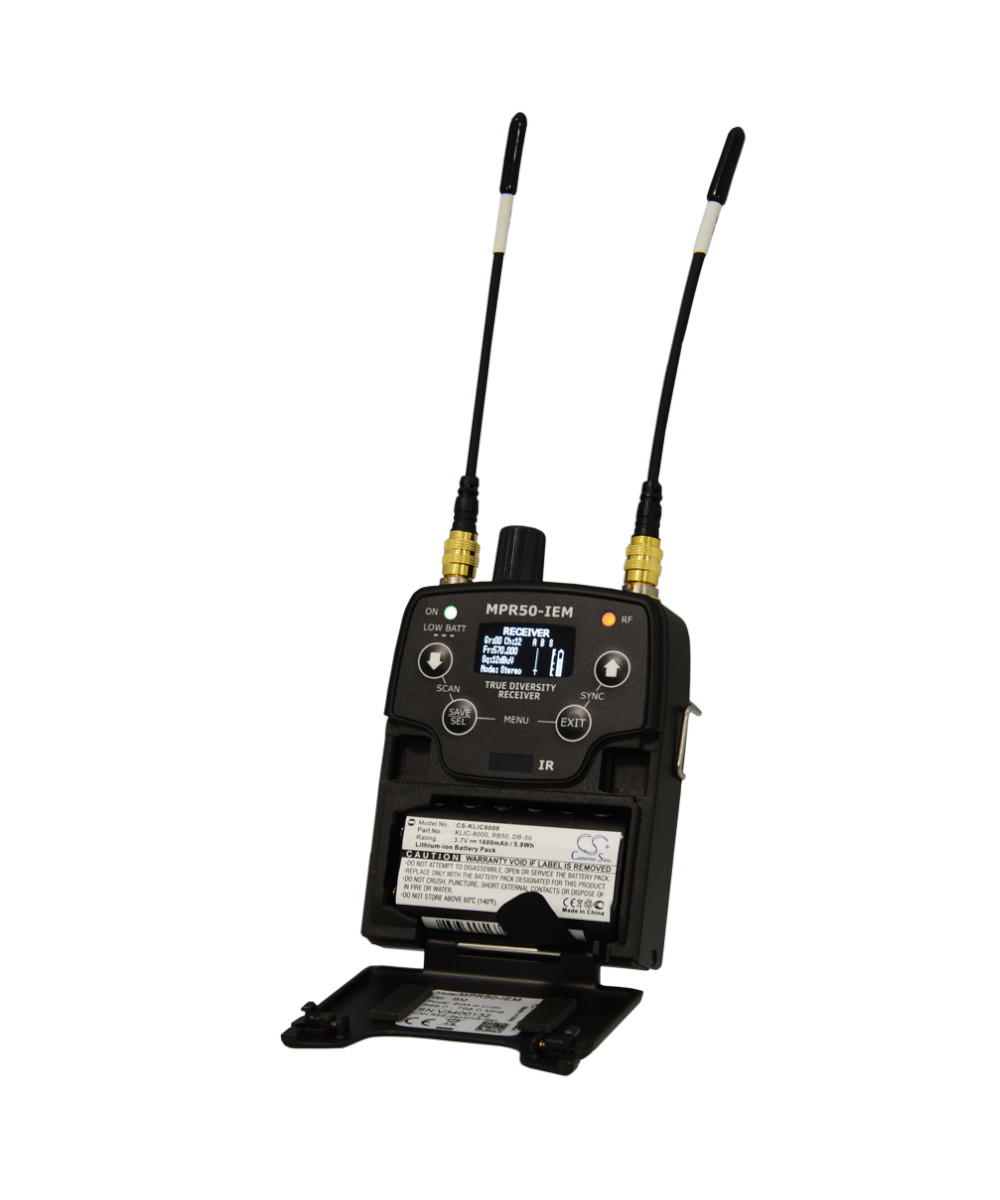

Wisycom MPR50-IEM

Wisycom MPR50-IEM Wideband IEM Receiver

1,395.00 USD

Wisycom MPR50-IEM — Compact true diversity receiver designed for professional in-ear monitoring aapplications.

Unavailable for shipping outside the United States and Canada.

Quantity:

SKU: WIS.MPR50IEMBN5K Categories: , Tags: ,
Share on:
Share on google Share on pinterest Share on mail

Description

Special considerations may apply if this item is received outside of North America. Please read for details.

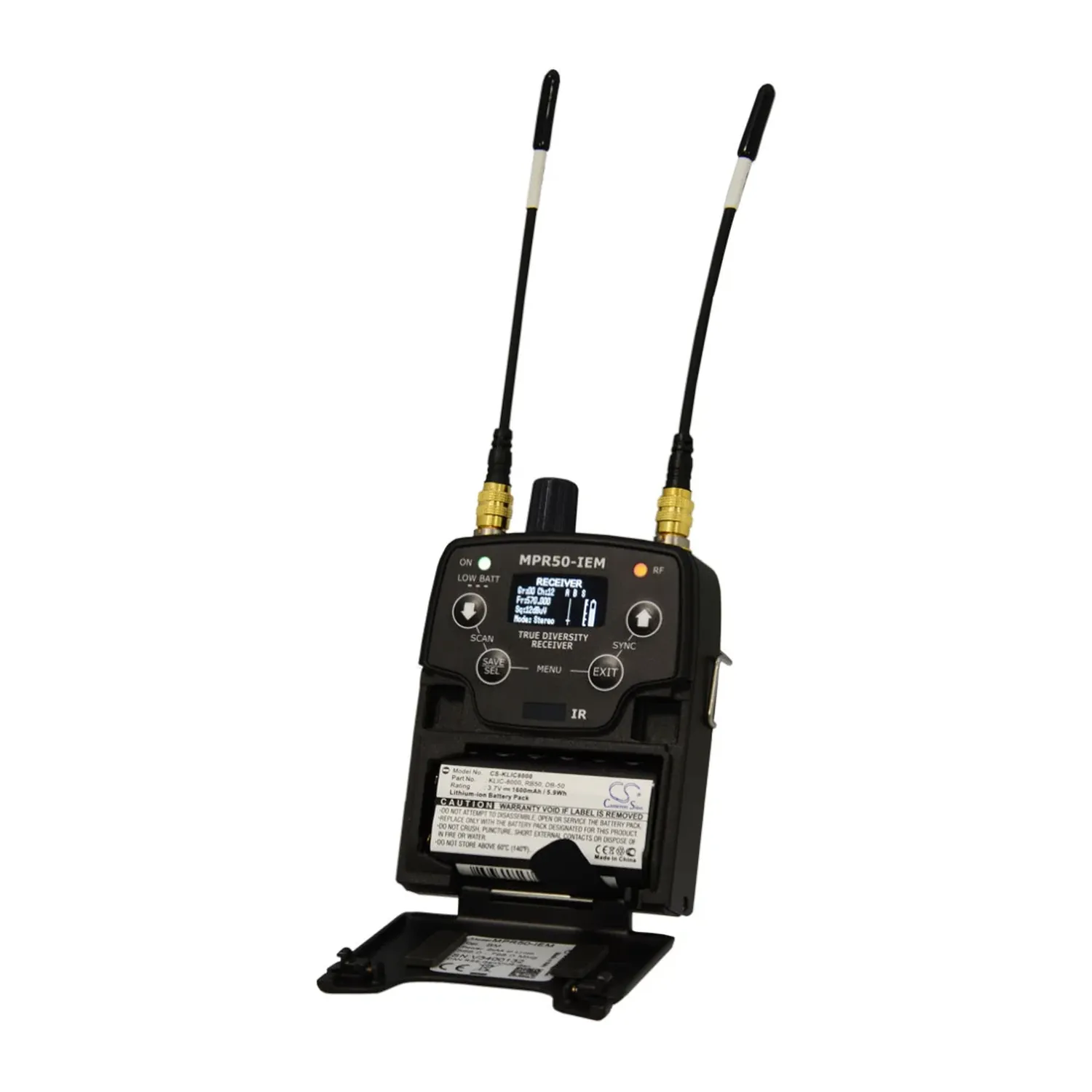

Wisycom MPR50-IEM Wideband IEM Receiver

MPR50 is a compact true diversity receiver designed for professional in-ear monitoring aapplications.

This receiver features a real TRUE DIVERSITY configuration along with a unique wide-band tuning range up to 232 MHz. Audio processing can be Stereo MPX or mono based.

The output audio stage is especially design to have maximum audio peak-dynamic of 200 mWatt.
Very easy and versatile thanks to its Oled display, navigation button controls, infrared and automatic scan.

Battery management is very flexible since MPR50 allows use of standard battery pack:
– 2 AA NiMH or Alkaline
– C3-V3 battery pack
– KLIC 8000 or CR-V3R lithium (i.e. DR9708 duracell)
Charging can be done with dedicated charger or thru the integrated micro-usb-B connector.

FEATURES

  • Up to 232 MHz bandwidth in 470/798 MHz range
  • TRUE DIVERSITY RECEIVER with 2 whip antennas
  • 200 mW peak audio power
  • Separate release/attack compander
  • Miniature design with 2 AA battery pack integrated (body-pack form factor) or rechargeable lithium pack
  • Easy to use thanks to an OLED display
  • Dedicated function buttons & frequency scan function
  • Automatic receiver programming thru infrared and micro-USB
  • FM Stereo mode for MPX decoding with mix-mode function
  • FM IFB mode with NARROW-BAND modulation to enhance noise immunity and coverage (SW selectable)



Specifications

Frequency ranges N option: 470 ÷ 700 MHz
M option: 566 ÷ 798 MHz
Switchable channels 2400 managed in 40 groups ofr 60 frequencies completely user customizable
Switching-window Up 232 MHz
Frequencies microprocessor controlled frequency synthesizer circuit, with 25 kHz minimum step;
frequencies is easily PC reprogrammed with USBmini interface or optional UPKmini programmer
Frequency error < ± 2.5 ppm, within the rated temperature range
Diversity technique true-diversity
Modulation FM, (stereo MPX decoding, 19 kHz sync carrier) or 100 kHz narrowband IFB (SW selectable)
Peak deviation ±48 kHz
“A” / “B” antenna inputs with sturdy connectors
Antenna input impedance 50 ohm sma type (SWR < 1:2; typ. 1:1.4)
Sensitivity 2 μV (6 dBμV), for SND/N > 52 dB; in the whole switching-window *
Co-channel rejection > 2.5 dB
Adjacent chan. selectivity > 80 dB typical (for channel spacing ≥ 400 kHz)
Spurious rec. rejection > 100 dB
IF image rejection > 90 dB
Intermod. rejection > 76 dB
IIP3 > +10 dBm typical
Spurious emissions < 2 nW (typical = 0.1 pW)
Noise Reduction system ENS
AF bandwidth 30 Hz ÷ 15 kHz
Frequency response ± 0.5 dB in the 30 Hz ÷ 15 kHz range
Distortion 0.3 % typical
SND/D ratio (analog) 90 dB typical*
Stereo separation > 60 dB
Headphone-output Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread) with 2 X 100mW @ 32 Ohm
Display OLED 128×64 (white)
Powering 2 x IEC-LR6 1.5V size-AA alkaline or rechargeable elements
Battery life approx. 4,5 hours (alkaline batteries), 6 hours (lithium batteries)
Temperature range -10 ÷ + 55 °C
Dimensions 91mm x 71.5mm x 27mm (HxWxD) with clip
Weight 100 g approx. without batteries
* RMS value, A-weighted, 22 Hz / 22 KHz, and referred to the peak deviation
