Wisycom MPR50-IFB Belt-Pack Receiver

995.00 USD

The MPR50 is a compact, belt-pack style true-diversity receiver designed for IFB applications.

Temporarily Unavailable

SKU: WIS.MPR50IFB Categories: , , , Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

Special considerations may apply if this item is received outside of North America. Please read for details.

Wisycom MPR50-IFB

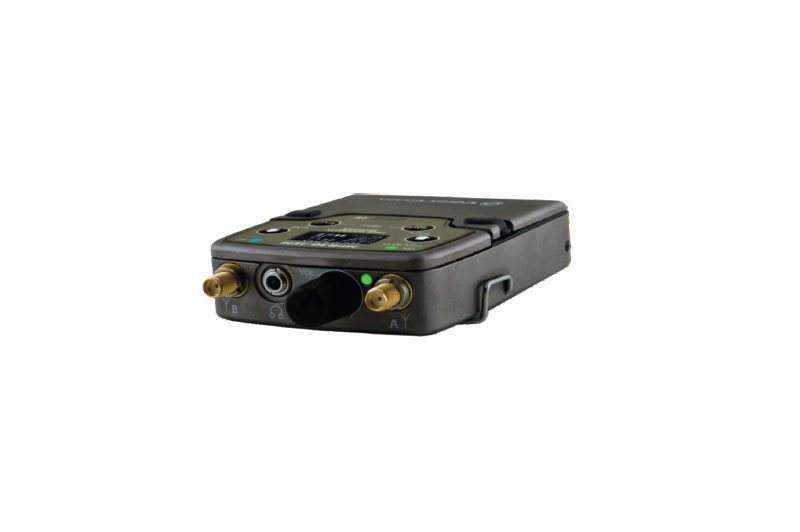

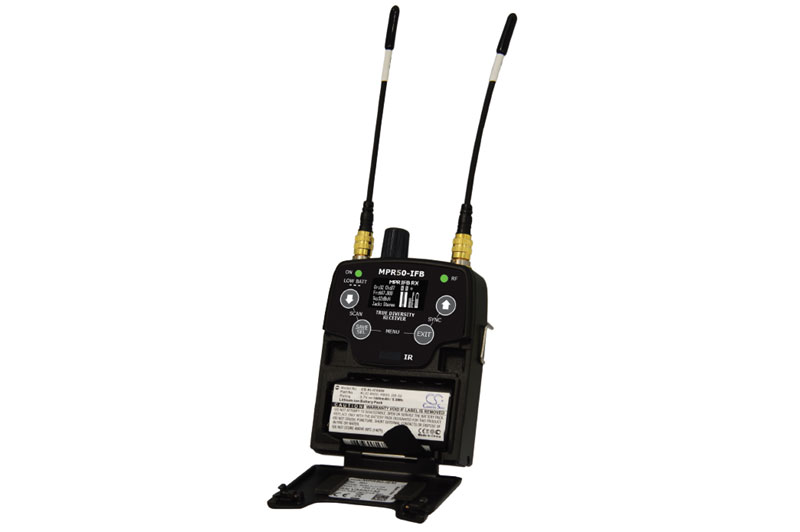

The Wisycom MPR50-IFB is a compact, belt-pack style true-diversity receiver designed for IFB applications.

True-Diversity Reliability This receiver features a real true diversity configuration along with a unique wide-band tuning range up to 232MHz (470-798MHz range), so each receiver can be used anywhere.

Multi-Companding Precisely handling the second part of the companding process, the MPR50-IFB accurately expands the delivered audio signal with Wisycom’s proprietary ENR or ENC companding algorithm with separate release/ attack.

  • ENR (Wisycom Extended-NR)
  • noise optimized
  • ENC (Wisycom Extended-NC) voice
  • optimized & reduced pre-emphasys
  • ENS sound optimized
  • IFB (ENR-Narrow band)
  • IFB-ENS (ENS-Narrow band)

Audio Headroom Expanded audio program material is delivered with our specially designed headphone amplifier designed to maximize headroom with peak-dynamic of +23 dBm (200mW).

Batteries Designed for flexibility to fit the unique needs of stage productions, the MPR50 accommodates several battery configurations by allowing the use of disposable and rechargeable batteries including:

  • Up to 9.5 hours with NI-MH Eneloop Pro NiMh
  • Up to 9 hours with Li-thium Klic-8000
  • Up to 7 hours with Alkaline Energizer

Other Features:

  • Onboard charging via integrated micro-usb-B connector.
  • Easy to use thanks to an OLED display
  • Dedicated function buttons & TX/RX frequency sync function
  • Automatic receiver programming with RX Manager application and micro-USB cable or infrared via optional UPKmini
  • FM IFB mode with NARROW-BAND modulation to enhance noise immunity and coverage (SW selectable)

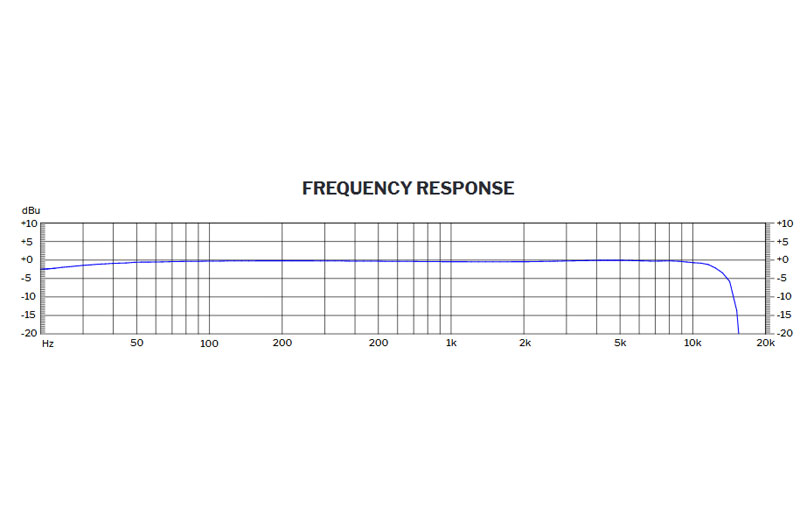

MPR50-IFB Freq Response

Specifications

Frequency range 470 – 700 MHz
Switching-window up 232 MHz.
Frequencies Microprocessor controlled frequency synthesizer circuit, with 25 kHz minimum step. The frequencies can be easily PC reprogrammed with USB interface of optional UPKmini/UPK300E Programming Kit.
Frequency error < ± 2.5 ppm, in the rated temperature range.
Temperature range -10 – +55 °C.
Modulation narrowband and wideband (SW selectable).
Peak deviation ±40 kHz (narrowband). ±56 kHz (wideband)
“A”/“B” antenna in with sturdy connectors.
Antenna input imp. 50 ohm sma type (SWR < 1:2; typ. 1:1.4).
Sensitivity 2 μV ( 6 dBμV), for SND/N > 52 dB; in the whole switching-window [1].
Co-channel rejection > 2.5 dB.
Adjacent channel selection > 80 dB typical (for channel spacing ≥ 400 kHz).
Spurious rec. rejection > 100 dB
IF image rejection
 > 90 dB
Intermodulation rejection > 76 dB
IIP3 > +10 dBm typical.
Spurious emissions < 2 nW (typical = 0.1 pW).
Noise Reduction
  • ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized
  • ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis
  • ENS sound optimized IFB (ENR-Narrow band)
  • IFB-ENS (ENS-Narrow band
AF bandwidth 30 Hz – 15 kHz.
Frequency response ± 0.5 dB in the 30 Hz – 15 kHz range.
Distortion 0.3 % typical.
SND/D ratio 90 dB typical [1].
Display Display OLED 128×64 (white).
Powering 2 x IEC-LR6 1.5V size-AA alkaline or rechargeable elements.
Weight 100 g approx. without batteries.
Headphone-output Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread) with 2 X 75mW @ 32 Ohm.
Battery life 9.6 hours (Ni-MH batteries)6 hours (lithium batteries)7 hours (alkaline batteries)
