ZOOM H6essential Handheld Recorder

299.99 USD 249.99 USD

ZOOM H6essential Handheld Recorder — ZOOM’s most robust handheld recorder, the H6essential is a recording powerhouse. With 6 tracks of 32-bit float recording, the H6essential provides unprecedented quality and unmatched versatility.

Quantity:

SKU: ZOOM.ZH6E Categories: , , Tags: ,

Description

ZOOM H6essential Handheld Recorder

ZOOM H6essential Handheld Recorder — ZOOM’s most robust handheld recorder, the H6essential is a recording powerhouse. With 6 tracks of 32-bit float recording, the H6essential provides unprecedented quality and unmatched versatility.

Step Up to 32-Bit Float — With 32-bit float and dual AD converters, the H6essential captures huge dynamic range. This gives creators the ability to record perfect audio, clip-free every time.

The First Recorders with Accessibility — The Essential Series was designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.

Six Perfect Tracks — The 4 XLR/TRS combo inputs feature ultra-clean Zoom preamps, and the included X/Y microphones can capture up to a booming 135 dB SPL, equivalent to a jet taking off.

Next Generation 3.0 Capsule System — The H6essential’s 3.0 capsule system has been updated to support 32-bit float and gives creators more options to use the right mic for their recording.

Record and Stream — Use the USB-C port to connect to PC, Mac, iOS, and Android device to use the H6essential as a 32-bit float interface while simultaneously recording all 6 tracks to an SD card.

ZOOM H6essential — ESSENTIAL FOR CREATORS

FOR MUSICIANS — The H6essential is a portable studio. Mic up to 4 instruments using the XLR inputs and use the X/Y microphones to capture the full ensemble in beautiful stereo.

FOR FILMMAKERS — 32-bit float recording gives filmmakers confidence with every take. The interchangeable capsules, 4 XLR inputs and wireless timecode make the H6essential invaluable on any set.

FOR PODCASTERS — When everyone wants to be on your podcast, the H6essential has you covered with 4 XLR inputs. For two additional XLR inputs, connect the optional EXH-6e capsule.

WAVEFORM DISPLAY — The H6essential has a waveform display so you can see your audio as it records.

BUILT-IN MIXER — For full control of your mix, hit the ‘Mixer’ button and quickly adjust your levels.

NEW CONNECTIONS

Pair with Your iOS Device — Use the BTA-1* Bluetooth Adapter to pair with your iOS device to remotely hit record, adjust your mix, view your waveforms, and change settings.

Bluetooth Timecode Sync — With the BTA-1* Bluetooth Adapter you can also pair with Bluetooth timecode devices for audio and video sync. (*Please note: BTA-1 Adapter not included)

Remove the Mics — When the X/Y mic is not needed, detach the capsule and use the included cap for a low profile setup.

MORE UPGRADES

Quieter Controls — Recording and rotary controls have been meticulously designed to allow for silent operation.

Listen Back with the Onboard Speaker — Use the improved onboard speaker to listen to your recordings for quick reference.

Outputs You Need — Use the line output to connect to a camera and the headphone output to monitor your audio.

Higher Visibility — The new full-color LCD screen provides you with a more vivid view as you record and navigate the menu.

CAPSULES:

XYH-6e Stereo Mic Capsule (Included) — Adds 2 high-quality microphones in a X/Y stereo arrangement. This arrangement is most sensitive to audio directly in front while also capturing a clean stereo image.

SSH-6e Stereo Shotgun Capsule (Purchased Separately) — The SSH-6e includes a super-directional microphone to pick up sound in the center, as well as a bidirectional side mic to pick up sounds from the left and right. The mid-side stereo image is adjustable from mono to ultra wide stereo pickup. You can capture dialogue with the center mic, then mix in the desired amount of environmental sound captured by the side mic.

EXH-6e Input Capsule (Purchased Separately) — If you need more inputs, simply plug in the EXH-6e dual XLR/TRS combo capsule. This allows you to connect 2 additional microphones, instruments, or line-level sources. Phantom power can be applied if you connect power to the USB-C port on the capsule. There is also a 3.5mm jack for line or mic level input with plug in power available for lavalier mics.

Specifications

INPUTS CHANNELS 2(MIC Capsule) + 4(XLR/TRS INPUTS)
MIC INPUT MIC TYPE Unidirectional
SENSITIVITY -42 dB, 1 kHz at 1 Pa
INPUT GAIN Adjustment unnecessary
(dual AD converter circuits used)
MAX SOUND PRESSURE INPUT 135 dB SPL
XLR/TRS INPUTS CONNECTORS XLR/TRS combo jacks (XLR:2 HOT / TRS:TIP HOT)
INPUT GAIN Adjustment unnecessary
(dual AD converter circuits used)
INPUT IMPEDANCE MIC: 3 kΩ or more
LINE: 3 kΩ or more
MAXIMUM INPUT LEVEL XLR: +4 dBu
TRS: +24 dBu
PHANTOM POWER +48V
EQUIVALENT INPUT NOISE −120 dBu or less
OUTPUTS LINE OUT CONNECTOR 1/8″ stereo mini jack
MAXIMUM OUTPUT LEVEL +2 dBu
HEADPHONE CONNECTOR 1/8″ stereo mini jack
MAXIMUM OUTPUT LEVEL 20 mW +20 mW(32 Ω load)
BUILT-IN SPEAKER 500mW/8Ω mono speaker
RECORDING RECORDING MEDIA 4GB–32GB microSDHC cards
64GB–1TB microSDXC cards
WAV SUPPORTED FORMATS 44.1/48/96kHz
32-bit float
BWF and iXML
MAXIMUM SIMULTANEOUS
RECORDING TRACKS
44.1/48kHz:
8 (2 MIC Capsule + 4 XLR/TRS INPUTS + 2 LR)
96kHz:
6 (2 MIC Capsule + 4 XLR/TRS INPUTS)
DISPLAY LCD 2.00″ full color
(320 × 240)

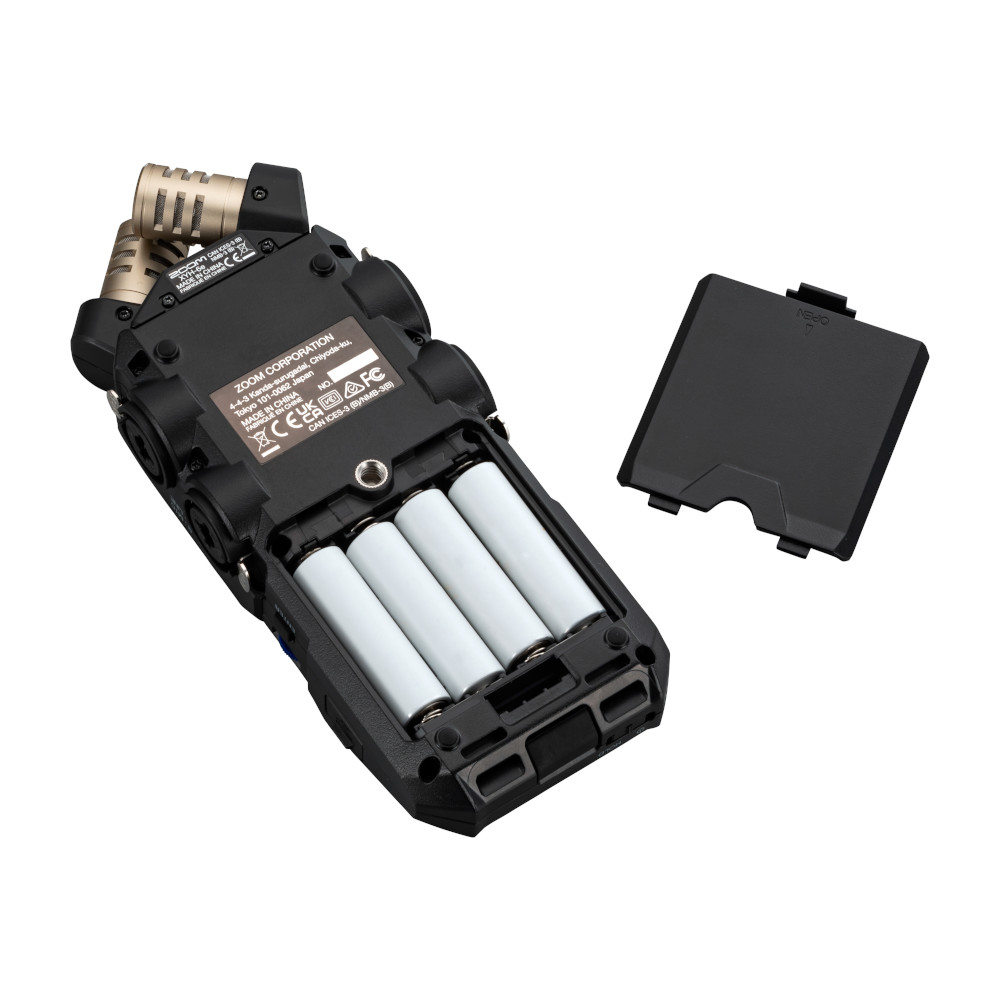

POWER SUPPLIES BATTERIES 4 AA
AC ADAPTER ZOOM AD-17 (DC 5 V/1 A)
• USB bus power is supported.
USB CONNECTOR USB Type-C
MASS STORAGE CLASS USB 2.0 High Speed
AUDIO INTERFACE CLASS USB 2.0 High Speed
SAMPLING RATE Multi Track mode:44.1/48/96kHz
Stereo Mix mode:44.1/48/96kHz
BIT RATE 24-bit/32-bit float
CHANNELS Multi Track mode:6 in/2 out
Stereo Mix mode:2 in/2 out
BTA-1 Support
(iOS App)
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES Alkaline batteries: about 18 hours
48 kHz/32-bit float, Mic Capsule 2ch recording
